Double-Convex (DCX) Lenses

 H-K9L Double-Convex (DCX) Lenses

H-K9L Double-Convex (DCX) Lenses

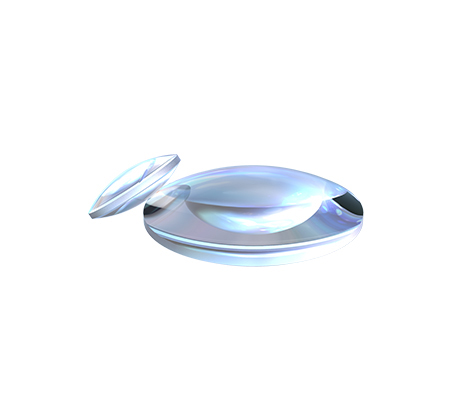

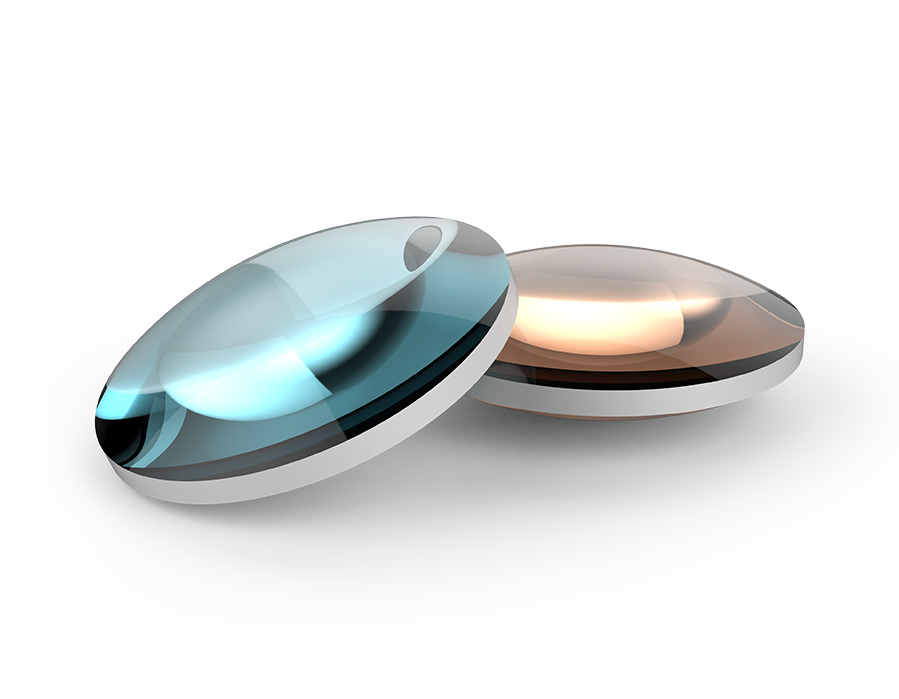

Double-Convex Lenses will focus light to a point. These lenses are made of two convex surfaces with equal radius. The focal length is positive. DCX Lenses are typically used in relay imaging systems or finite conjugate imaging systems. The larger the conjugate ratio, the larger the aberration in the imaging system . Grand Unified Optics offers uncoated or AR coating Double-Convex Lenses suitable for your application.

Material H-K9L optical glass

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) λ/4 @632.8nm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

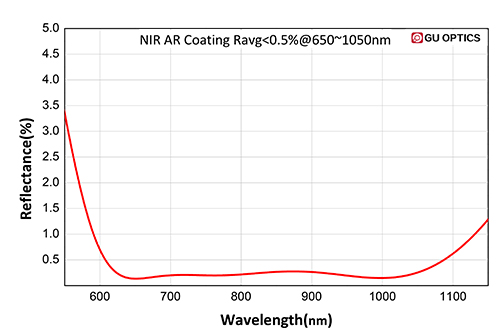

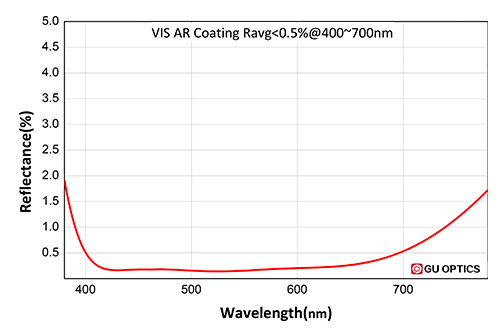

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

110000

Parameter list

2.00mm

Uncoated

1.63mm

In stock



$22.50



110001

Parameter list

2.00mm

2.50mm

Uncoated

1.46mm

In stock



$22.50



110002

Parameter list

3.00mm

Uncoated

1.90mm

In stock



$20.83



110003

Parameter list

3.00mm

6.30mm

Uncoated

1.36mm

In stock



$20.83



110004

Parameter list

4.00mm

Uncoated

2.16mm

In stock



$20.83



110005

Parameter list

5.00mm

4.50mm

Uncoated

2.65mm

In stock



$19.17



110006

Parameter list

6.30mm

Uncoated

3.34mm

In stock



$14.17



110007

Parameter list

6.00mm

10.00mm

Uncoated

6.00mm

In stock



$14.17



110008

Parameter list

6.00mm

30.00mm

Uncoated

2.30mm

In stock



$14.17



110009

Parameter list

10.00mm

Uncoated

4.87mm

In stock



$14.17



110010

Parameter list

10.00mm

12.50mm

Uncoated

3.63mm

In stock



$14.17



110011

Parameter list

12.50mm

Uncoated

5.55mm

In stock



$15.00



110012

Parameter list

12.50mm

25.00mm

Uncoated

2.60mm

In stock



$15.00



110013

Parameter list

13.00mm

18.20mm

Uncoated

4.40mm

In stock



$15.00



110014

Parameter list

12.85mm

20.00mm

Uncoated

3.00mm

In stock



$15.00



110015

Parameter list

16.00mm

Uncoated

6.51mm

In stock



$15.00



110016

Parameter list

25.00mm

Uncoated

8.96mm

In stock



$15.83



110017

Parameter list

25.00mm

40.00mm

Uncoated

5.50mm

In stock



$15.83



110018

Parameter list

40.00mm

Uncoated

13.59mm

In stock



$25.83



110019

Parameter list

50.00mm

Uncoated

16.85mm

In stock



$45.83


