Home  Products  H-K9L Double-Convex (DCX) Lenses  110009

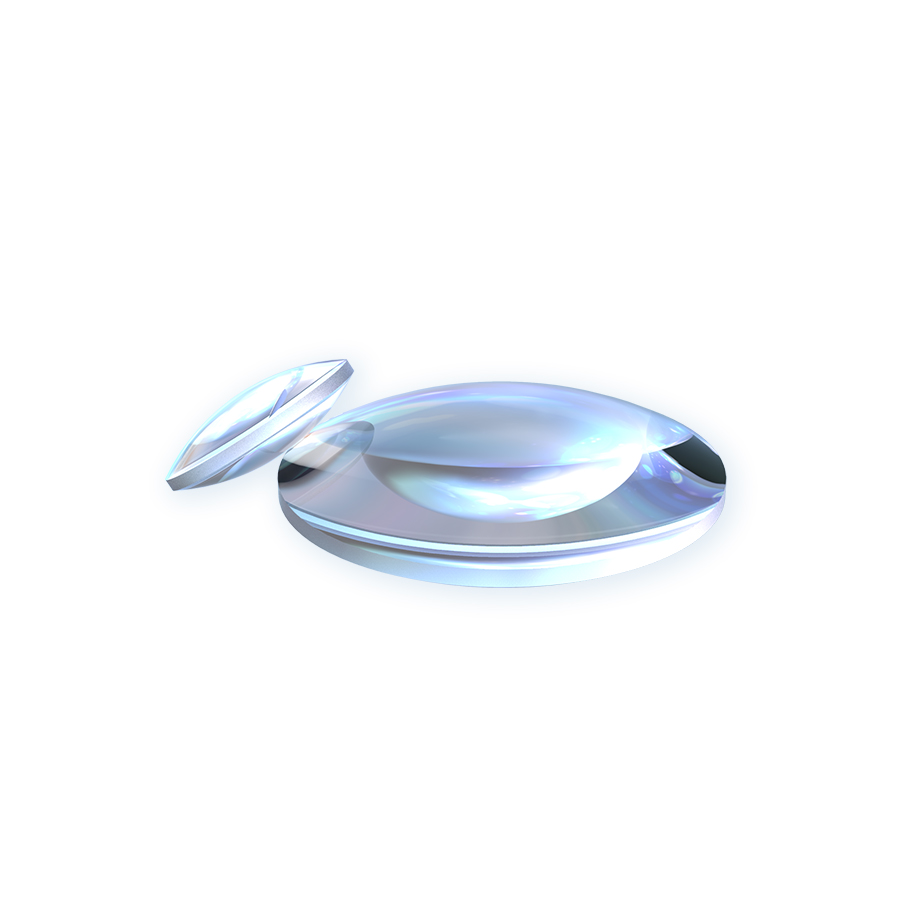

DCX D=10.00mm F=10.00mm Uncoated H-K9L Optical Glass



DCX D=10.00mm F=10.00mm Uncoated H-K9L Optical Glass





Share

WeChat

Scan and add Wechat

DCX D=10.00mm F=10.00mm Uncoated H-K9L Optical Glass

Price Option

Product No. 110009

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

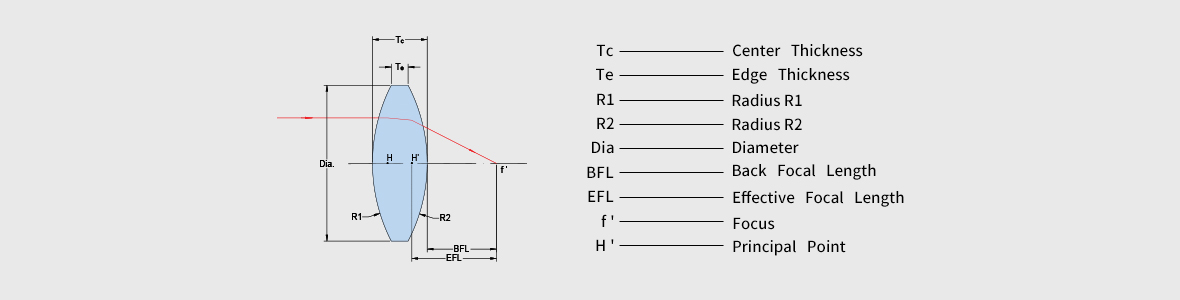

Parameters Spectrum Curve Related Products Description

Dia 10.00mm

EFL 10.00mm

Coating Uncoated

Material H-K9L optical glass

BFL 8.24mm

R1 9.42mm

CT 4.87mm

ET 2.00mm

Available Mount Ring 500031

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1

Center Thickness Tolerance ±0.2

Surface Accuracy λ/4 @632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 40/20-60/40

Bevel 0.2X45°

n --

DCX D=10.00mm F=12.50mm Uncoated H-K9L Optical Glass

DCX D=10.00mm F=12.50mm Uncoated H-K9L Optical Glass

DCX D=12.50mm F=12.50mm Uncoated H-K9L Optical Glass

DCX D=12.50mm F=12.50mm Uncoated H-K9L Optical Glass

DCX D=12.50mm F=25.00mm Uncoated H-K9L Optical Glass

DCX D=12.50mm F=25.00mm Uncoated H-K9L Optical Glass

DCX D=13.00mm F=18.20mm Uncoated H-K9L Optical Glass

DCX D=13.00mm F=18.20mm Uncoated H-K9L Optical Glass

Double-Convex Lenses will focus light to a point. These lenses are made of two convex surfaces with equal radius. The focal length is positive. DCX Lenses are typically used in relay imaging systems or finite conjugate imaging systems. The larger the conjugate ratio, the larger the aberration in the imaging system . Grand Unified Optics offers uncoated or AR coating Double-Convex Lenses suitable for your application.
