Silicon Plano-Convex (PCX) Lenses

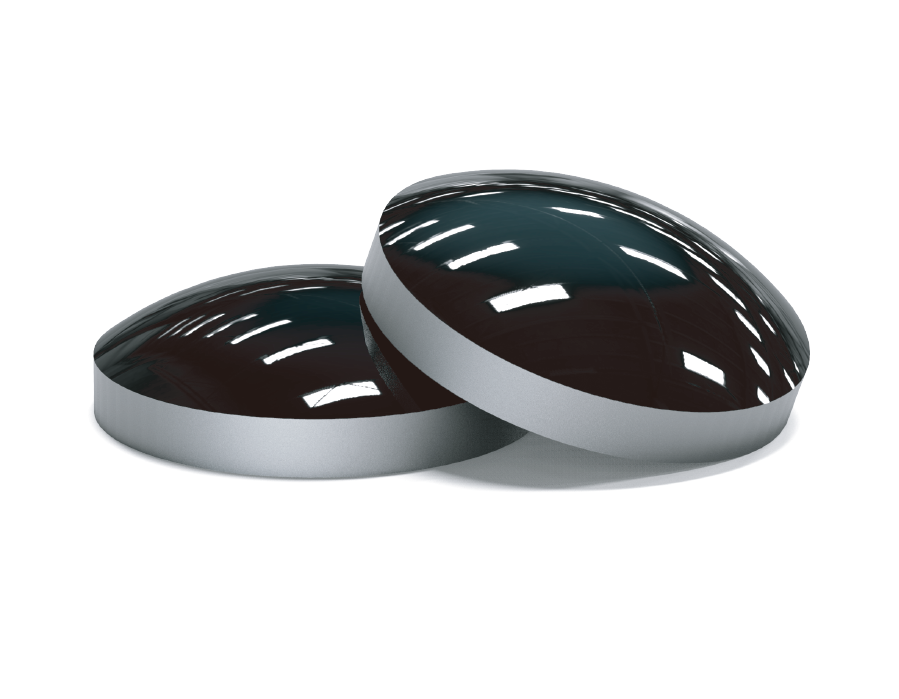

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. Grand Unified Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

材料硅

设计波长 4μm

直径误差 +0.0/-0.1mm

中心厚度误差 ±0.2mm

有效焦距误差 ±1%

透镜定心误差＜3弧分

表面光洁度 60-40

倒边 0.2mmX45°

镀膜见列表

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

100488

Parameter list

12.70mm

15.00mm

Uncoated

2.60mm

In stock



$108.33



100489

Parameter list

12.70mm

20.00mm

Uncoated

2.40mm

In stock



$108.33



100490

Parameter list

12.70mm

40.00mm

Uncoated

2.20mm

In stock



$108.33



100491

Parameter list

25.40mm

Uncoated

3.30mm

In stock



$125.00



100492

Parameter list

25.40mm

50.00mm

Uncoated

4.00mm

In stock



$125.00



100493

Parameter list

25.40mm

75.00mm

Uncoated

4.00mm

In stock



$125.00



100494

Parameter list

25.40mm

100.00mm

Uncoated

4.00mm

In stock



$125.00



100495

Parameter list

25.40mm

150.00mm

Uncoated

4.00mm

In stock



$125.00



100496

Parameter list

25.40mm

200.00mm

Uncoated

4.00mm

In stock



$125.00



100497

Parameter list

25.40mm

500.00mm

Uncoated

2.10mm

In stock



$125.00



100498

Parameter list

25.40mm

750.00mm

Uncoated

2.00mm

In stock



$125.00



100499

Parameter list

25.40mm

1000.00mm

Uncoated

2.00mm

In stock



$125.00



100500

Parameter list

12.70mm

15.00mm

Double-Sided-AR-coating@3~5μm

2.60mm

In stock



$158.33



100501

Parameter list

12.70mm

20.00mm

Double-Sided-AR-coating@3~5μm

2.40mm

In stock



$158.33



100502

Parameter list

12.70mm

40.00mm

Double-Sided-AR-coating@3~5μm

2.20mm

In stock



$158.33



100503

Parameter list

25.40mm

Double-Sided-AR-coating@3~5μm

3.30mm

In stock



$191.67



100504

Parameter list

25.40mm

50.00mm

Double-Sided-AR-coating@3~5μm

4.00mm

In stock



$191.67



100505

Parameter list

25.40mm

75.00mm

Double-Sided-AR-coating@3~5μm

4.00mm

In stock



$191.67



100506

Parameter list

25.40mm

100.00mm

Double-Sided-AR-coating@3~5μm

4.00mm

In stock



$191.67



100507

Parameter list

25.40mm

150.00mm

Double-Sided-AR-coating@3~5μm

4.00mm

In stock



$191.67


