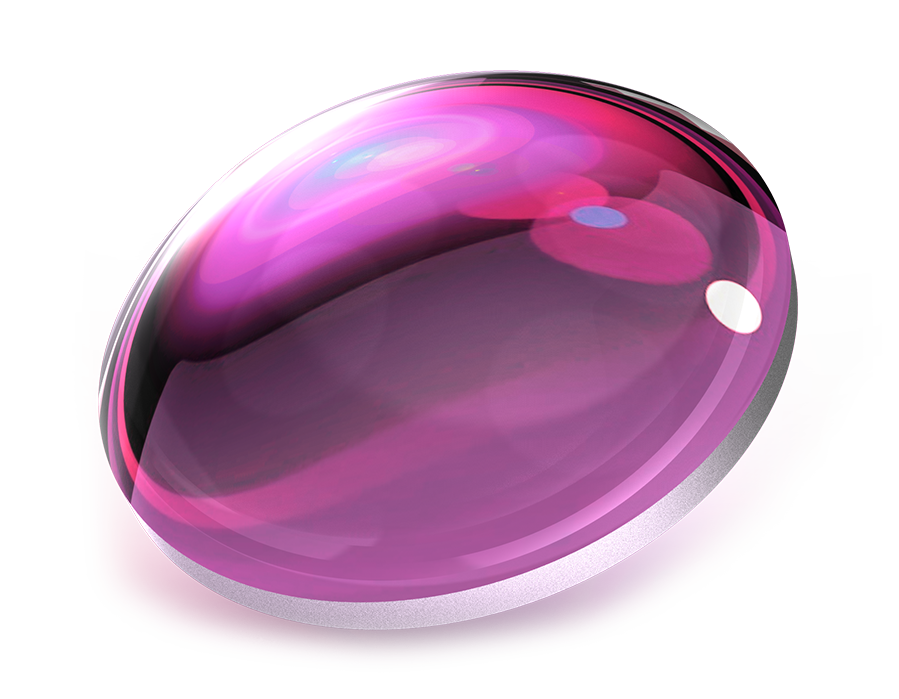

UV Fused Silica Plano-Convex (PCX) Lenses

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. Grand Unified Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

Material UV-Grade Fused Silica

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) λ/4@632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 20/10~40/20

Bevel 0.2mmX45°

Coating As product list
