K9 Plano-Convex (PCX) Lenses

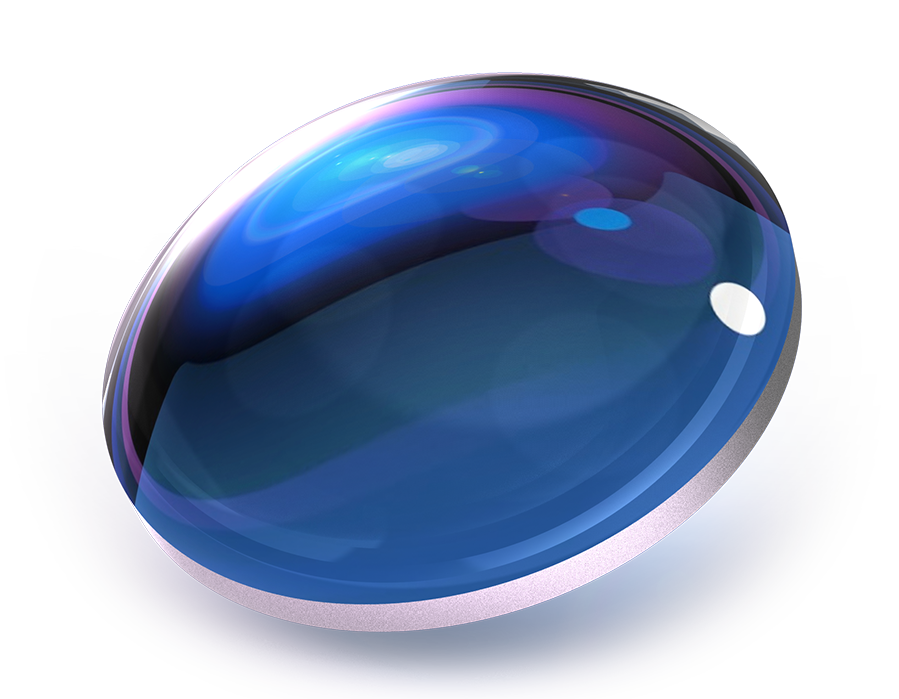

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. Grand Unified Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

Material H-K9L Optical Glass

Design Wavelength 587.6nm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) λ/4@632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 40/20~60/40

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

 4.50mm
 5.00mm
 6.30mm
 8.00mm
 10.00mm
 12.50mm
 16.00mm
 20.00mm
 20.30mm
 25.00mm
 25.40mm
 26.70mm
 30.00mm
 31.50mm
 40.00mm
 50.00mm
 60.00mm
 63.00mm
 76.00mm
 80.00mm
 100.00mm
 120.00mm
 125.00mm
 150.00mm
 160.00mm
 200.00mm
 250.00mm
 300.00mm
 315.00mm
 400.00mm
 500.00mm
 630.00mm
 800.00mm
 1000.00mm
 1600.00mm
 2000.00mm
 2500.00mm

Coating

Select..  

 1.50mm
 1.70mm
 1.7mm
 1.78mm
 1.90mm
 1.9mm
 2.00mm
 2mm
 2.031mm
 2.04mm
 2.094mm
 2.10mm
 2.1mm
 2.15mm
 2.30mm
 2.3mm
 2.38mm
 2.50mm
 2.60mm
 2.6mm
 2.61mm
 2.76mm
 2.80mm
 2.94mm
 2.95mm
 3.00mm
 3mm
 3.10mm
 3.20mm
 3.22mm
 3.28mm
 3.37mm
 3.54mm
 3.60mm
 3.6mm
 3.76mm
 3.87mm
 3.90mm
 3.93mm
 3.94mm
 3.96mm
 4.00mm
 4.06mm
 4.20mm
 4.21mm
 4.27mm
 4.45mm
 4.50mm
 4.60mm
 4.70mm
 4.73mm
 4.80mm
 4.96mm
 5.32mm
 5.44mm
 5.68mm
 6.10mm
 6.12mm
 6.17mm
 6.21mm
 6.53mm
 6.87mm
 6.90mm
 7.3mm
 7.67mm
 7.86mm
 8.25mm
 8.89mm
 8.95mm
 9.24mm
 9.38mm
 9.45mm
 9.50mm
 11.16mm
 11.21mm
 11.43mm
 11.98mm
 13.72mm
 14.05mm
 14.12mm
 14.73mm
 17.95mm
 20.85mm

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

100000

Parameter list

3.00mm

4.50mm

Uncoated

1.70mm

In stock



$22.50



100001

Parameter list

3.00mm

10.00mm

Uncoated

1.70mm

In stock



$20.83



100002

Parameter list

4.00mm

5.00mm

Uncoated

1.90mm

In stock



$22.50



100003

Parameter list

4.00mm

6.30mm

Uncoated

1.70mm

In stock



$20.00



100004

Parameter list

4.00mm

10.00mm

Uncoated

1.70mm

In stock



$20.00



100005

Parameter list

5.00mm

8.00mm

Uncoated

1.50mm

In stock



$20.00



100006

Parameter list

6.30mm

8.00mm

Uncoated

2.60mm

In stock



$13.33



100007

Parameter list

6.30mm

10.00mm

Uncoated

2.60mm

Consult



$13.33



100008

Parameter list

6.30mm

12.50mm

Uncoated

2.30mm

In stock



$13.33



100009

Parameter list

6.30mm

16.00mm

Uncoated

2.10mm

In stock



$13.33



100010

Parameter list

6.30mm

20.00mm

Uncoated

2.00mm

In stock



$13.33



100011

Parameter list

6.30mm

25.00mm

Uncoated

1.90mm

In stock



$13.33



100012

Parameter list

6.30mm

40.00mm

Uncoated

1.70mm

In stock



$13.33



100013

Parameter list

6.30mm

63.00mm

Uncoated

1.70mm

In stock



$13.33



100014

Parameter list

10.00mm

12.50mm

Uncoated

3.90mm

In stock



$13.33



100015

Parameter list

10.00mm

16.00mm

Uncoated

3.20mm

In stock



$13.33



100016

Parameter list

10.00mm

20.00mm

Uncoated

2.80mm

In stock



$13.33



100017

Parameter list

10.00mm

25.00mm

Uncoated

2.50mm

In stock



$13.33



100018

Parameter list

10.00mm

31.50mm

Uncoated

2.30mm

In stock



$13.33



100019

Parameter list

10.00mm

40.00mm

Uncoated

2.10mm

In stock



$13.33



More products >>

Curve download

UV Fused Silica Plano-Convex (PCX) Lenses
