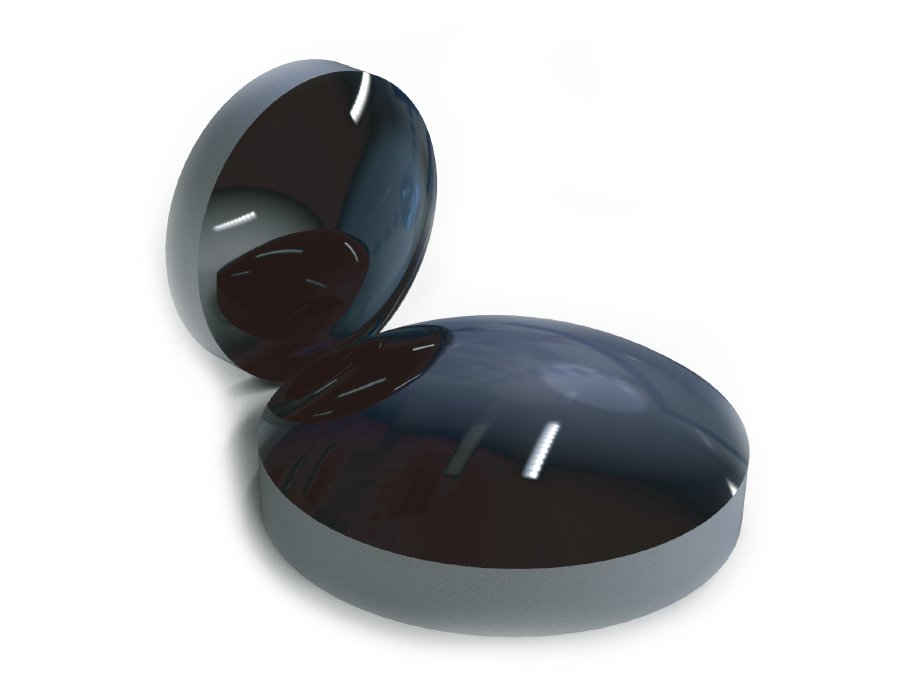

Germanium Plano-Convex (PCX) Lenses

A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light. Grand Unified Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.

Material Germanium (Ge) single crystal

Design Wavelength 10.6μm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±1%

Centering Tolerance ＜3 arcmin

Surface Quality 60-40

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

100512

Parameter list

12.70mm

15.00mm

Uncoated

2.50mm

In stock



$116.67



100513

Parameter list

12.70mm

20.00mm

Uncoated

2.30mm

In stock



$116.67



100514

Parameter list

12.70mm

40.00mm

Uncoated

2.20mm

In stock



$116.67



100515

Parameter list

25.40mm

Uncoated

3.10mm

In stock



$158.33



100516

Parameter list

25.40mm

50.00mm

Uncoated

4.00mm

In stock



$158.33



100517

Parameter list

25.40mm

75.00mm

Uncoated

4.00mm

In stock



$158.33



100518

Parameter list

25.40mm

100.00mm

Uncoated

4.00mm

In stock



$158.33



100519

Parameter list

25.40mm

150.00mm

Uncoated

4.00mm

In stock



$158.33



100520

Parameter list

25.40mm

200.00mm

Uncoated

4.00mm

In stock



$158.33



100521

Parameter list

25.40mm

500.00mm

Uncoated

2.10mm

In stock



$158.33



100522

Parameter list

25.40mm

750.00mm

Uncoated

2.00mm

In stock



$158.33



100523

Parameter list

25.40mm

1000.00mm

Uncoated

2.00mm

In stock



$158.33



100524

Parameter list

12.70mm

15.00mm

Double-Sided-AR-coating@8~12μm

2.50mm

In stock



$158.33



100525

Parameter list

12.70mm

20.00mm

Double-Sided-AR-coating@8~12μm

2.30mm

In stock



$158.33



100526

Parameter list

12.70mm

40.00mm

Double-Sided-AR-coating@8~12μm

2.20mm

In stock



$158.33



100527

Parameter list

25.40mm

Double-Sided-AR-coating@8~12μm

3.10mm

In stock



$225.00



100528

Parameter list

25.40mm

50.00mm

Double-Sided-AR-coating@8~12μm

4.00mm

In stock



$225.00



100529

Parameter list

25.40mm

75.00mm

Double-Sided-AR-coating@8~12μm

4.00mm

In stock



$225.00



100530

Parameter list

25.40mm

100.00mm

Double-Sided-AR-coating@8~12μm

4.00mm

In stock



$225.00



100531

Parameter list

25.40mm

150.00mm

Double-Sided-AR-coating@8~12μm

4.00mm

In stock



$225.00



More products >>
