Double-Convex (DCX) Lenses

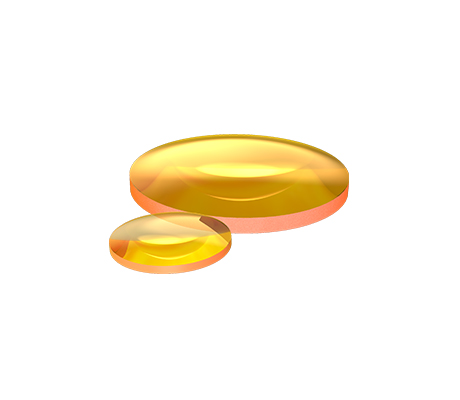

 Zinc Selenide (ZnSe) Double-Convex (DCX) Lenses

Zinc Selenide (ZnSe) Double-Convex (DCX) Lenses

Double-Convex Lenses will focus light to a point. These lenses are made of two convex surfaces with equal radius. The focal length is positive. DCX Lenses are typically used in relay imaging systems or finite conjugate imaging systems. The larger the conjugate ratio, the larger the aberration in the imaging system . Grand Unified Optics offers uncoated or AR coating Double-Convex Lenses suitable for your application.

Material CVD LaserGrade ZnSe（ZnSe）

Design Wavelength 10.6μm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±1%

Centering Tolerance ＜ 3 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

110152

Parameter list

12.70mm

15.00mm

Uncoated

3.00mm

In stock



$125.00



110153

Parameter list

12.70mm

20.00mm

Uncoated

2.70mm

In stock



$125.00



110154

Parameter list

12.70mm

40.00mm

Uncoated

2.40mm

In stock



$125.00



110155

Parameter list

25.40mm

Uncoated

4.30mm

In stock



$225.00



110156

Parameter list

25.40mm

50.00mm

Uncoated

3.20mm

In stock



$225.00



110157

Parameter list

25.40mm

75.00mm

Uncoated

2.80mm

In stock



$225.00



110158

Parameter list

25.40mm

100.00mm

Uncoated

2.60mm

In stock



$225.00



110159

Parameter list

25.40mm

200.00mm

Uncoated

2.30mm

In stock



$225.00



110160

Parameter list

12.70mm

15.00mm

Double-Sided-AR-coating@8~12μm

3.00mm

In stock



$141.67



110161

Parameter list

12.70mm

20.00mm

Double-Sided-AR-coating@8~12μm

2.70mm

In stock



$141.67



110162

Parameter list

12.70mm

40.00mm

Double-Sided-AR-coating@8~12μm

2.40mm

In stock



$141.67



110163

Parameter list

25.40mm

Double-Sided-AR-coating@8~12μm

4.30mm

In stock



$258.33



110164

Parameter list

25.40mm

50.00mm

Double-Sided-AR-coating@8~12μm

3.20mm

In stock



$258.33



110165

Parameter list

25.40mm

75.00mm

Double-Sided-AR-coating@8~12μm

2.80mm

In stock



$258.33



110166

Parameter list

25.40mm

100.00mm

Double-Sided-AR-coating@8~12μm

2.60mm

In stock



$258.33



110167

Parameter list

25.40mm

200.00mm

Double-Sided-AR-coating@8~12μm

2.30mm

In stock



$258.33



Curve download

Silicon Plano-Convex (PCX) Lenses

Germanium Plano-Convex (PCX) Lenses

H-K9L Double-Convex (DCX) Lenses

UV Fused Silica Double-Convex (DCX) Lenses
