Coloured Glass Filter

 Longpass Coloured Glass Filter

Longpass Coloured Glass Filter

Coloured glass filters absorb and transmit different spectral bands. Unlike dielectric filters, the center wavelength does not change when the AOI of the beam changes. Grand Unified Optics provides all kinds of optical coloured glass filters to suit your application.

Material Coloured glass

Surface Accuracy λ/ 2 @ 633 nm (25mm Area)

Parallelism ＜1 arcmin

Surface Quality 40-20

Dimension Tolerance ＋0.0/-0.2mm

Thickness 2mm ±0.2mm

*Central Wavelength Tolerance ±10nm

Transmission Tavg＞85%

* Central Wavelength Location of wavelength point with 50% of peak transmittance

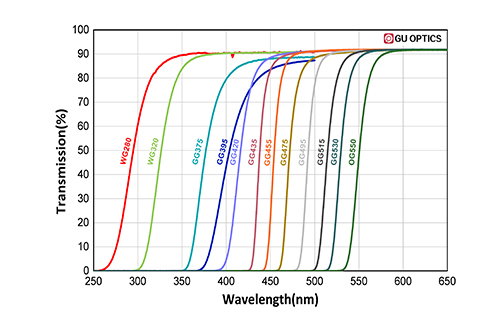

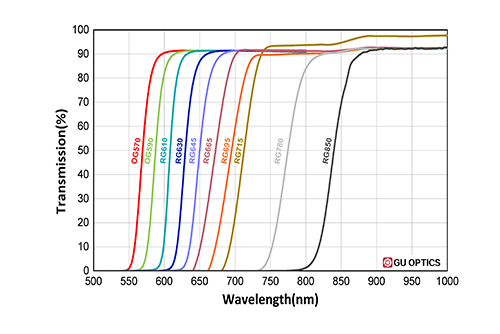

Products Spectral curve Related Download

Dia

Select..  

CWL

Select..  

Filter Color

Select..  

Material

Select..  

 Coloured-glass

Clear

Pro No.

Parameter

Dia

CWL

Filter Color

Material

Delivery time

Compare

Price

Purchase

259000

Parameter list

Φ12.5mm

280nm

Transparent

Coloured-glass

In stock



$10.83



259001

Parameter list

Φ12.5mm

320nm

Transparent

Coloured-glass

In stock



$10.83



259002

Parameter list

Φ12.5mm

375nm

Transparent

Coloured-glass

In stock



$10.83



259003

Parameter list

Φ12.5mm

395nm

Transparent

Coloured-glass

In stock



$10.83



259004

Parameter list

Φ12.5mm

420nm

Yellow

Coloured-glass

In stock



$10.83



259005

Parameter list

Φ12.5mm

435nm

Yellow

Coloured-glass

In stock



$10.83



259006

Parameter list

Φ12.5mm

455nm

Yellow

Coloured-glass

In stock



$10.83



259007

Parameter list

Φ12.5mm

475nm

Yellow

Coloured-glass

In stock



$10.83



259008

Parameter list

Φ12.5mm

495nm

Yellow

Coloured-glass

In stock



$10.83



259009

Parameter list

Φ12.5mm

515nm

Yellow

Coloured-glass

In stock



$10.83



259010

Parameter list

Φ12.5mm

530nm

Yellow

Coloured-glass

In stock



$10.83



259011

Parameter list

Φ12.5mm

550nm

Orange

Coloured-glass

In stock



$10.83



259012

Parameter list

Φ12.5mm

570nm

Orange

Coloured-glass

In stock



$10.83



259013

Parameter list

Φ12.5mm

590nm

Red

Coloured-glass

In stock



$10.83



259014

Parameter list

Φ12.5mm

610nm

Red

Coloured-glass

In stock



$10.83



259015

Parameter list

Φ12.5mm

630nm

Red

Coloured-glass

In stock



$10.83



259016

Parameter list

Φ12.5mm

645nm

Red

Coloured-glass

In stock



$10.83



259017

Parameter list

Φ12.5mm

665nm

Red

Coloured-glass

In stock



$10.83



259018

Parameter list

Φ12.5mm

695nm

Black

Coloured-glass

In stock



$12.50



259019

Parameter list

Φ12.5mm

715nm

Black

Coloured-glass

In stock



$12.50


