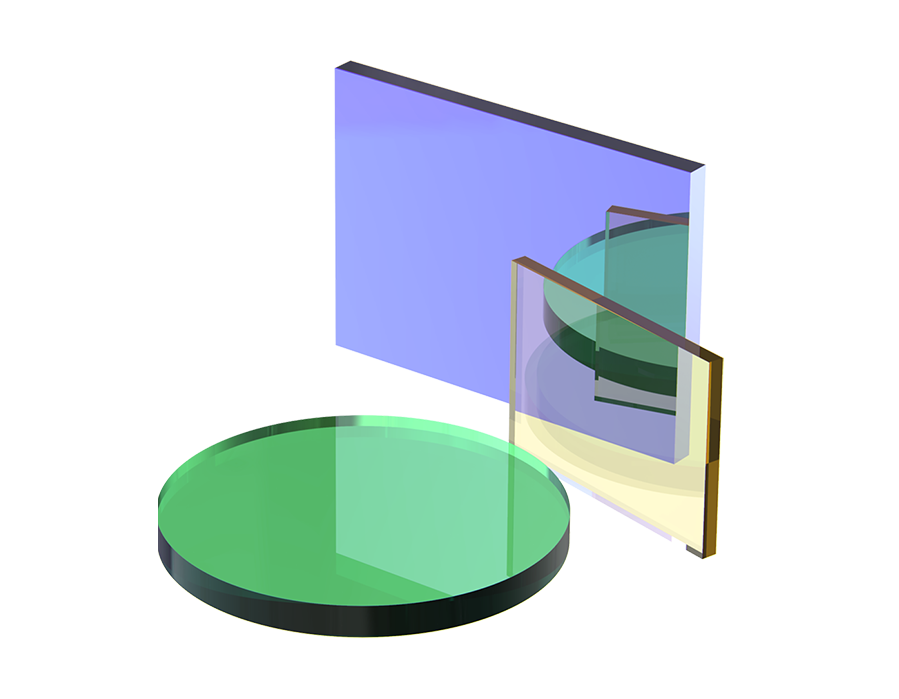

Coloured Glass Bandpass Filter

Coloured glass filters absorb and transmit different spectral bands. Unlike dielectric filters, the center wavelength does not change when the AOI of the beam changes. Grand Unified Optics provides all kinds of optical coloured glass filters to suit your application.

Material Coloured glass

Surface Accuracy λ/ 2 @ 633 nm (25mm Area)

Parallelism ＜1 arcmin

Surface Quality 40-20

Dimension Tolerance ＋0.0/-0.2mm

Thickness 2mm ±0.2mm

*Central Wavelength Tolerance ±10nm

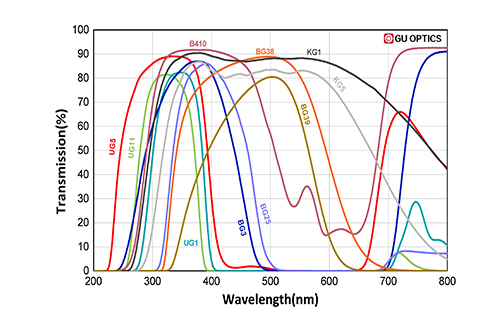

Products Spectral curve Related Download

Dia

Select..  

CWL

Select..  

Filter Color

Select..  

Material

Select..  

 Coloured-glass

Clear

Pro No.

Parameter

Dia

CWL

Filter Color

Material

Delivery time

Compare

Price

Purchase

259092

Parameter list

Φ12.5mm

318nm

Black

Coloured-glass

In stock



$20.83



259093

Parameter list

Φ12.5mm

325nm

Black

Coloured-glass

In stock



$20.83



259094

Parameter list

Φ12.5mm

355nm

Black

Coloured-glass

In stock



$15.83



259095

Parameter list

Φ12.5mm

356nm

Black

Coloured-glass

In stock



$15.83



259096

Parameter list

Φ12.5mm

400nm

Black

Coloured-glass

In stock



$15.83



259097

Parameter list

Φ12.5mm

410nm

Light-blue

Coloured-glass

In stock



$15.83



259098

Parameter list

Φ12.5mm

470nm

Blue-Green

Coloured-glass

In stock



$15.83



259099

Parameter list

Φ12.5mm

507nm

Blue-Green

Coloured-glass

In stock



$15.83



259100

Parameter list

Φ12.5mm

*510nm

Transparent

Coloured-glass

In stock



$15.83



259101

Parameter list

Φ12.5mm

*530nm

Transparent

Coloured-glass

In stock



$15.83



259102

Parameter list

Φ25mm

318nm

Black

Coloured-glass

In stock



$52.50



259103

Parameter list

Φ25mm

325nm

Black

Coloured-glass

In stock



$52.50



259104

Parameter list

Φ25mm

355nm

Black

Coloured-glass

In stock



$25.83



259105

Parameter list

Φ25mm

356nm

Black

Coloured-glass

In stock



$25.83



259106

Parameter list

Φ25mm

400nm

Black

Coloured-glass

In stock



$25.83



259107

Parameter list

Φ25mm

410nm

Light-blue

Coloured-glass

In stock



$25.83



259108

Parameter list

Φ25mm

470nm

Blue-Green

Coloured-glass

In stock



$25.83



259109

Parameter list

Φ25mm

507nm

Blue-Green

Coloured-glass

In stock



$25.83



259110

Parameter list

Φ25mm

*510nm

Transparent

Coloured-glass

In stock



$25.83



259111

Parameter list

Φ25mm

*530nm

Transparent

Coloured-glass

In stock



$25.83



More products >>

Curve download

High Performance Dichroic Filter

High quality UV Metal coated Neutral Density (ND) Filter

VIS Metal coated Neutral Density Filter

Absorptive Neutral Density (ND) Filter
