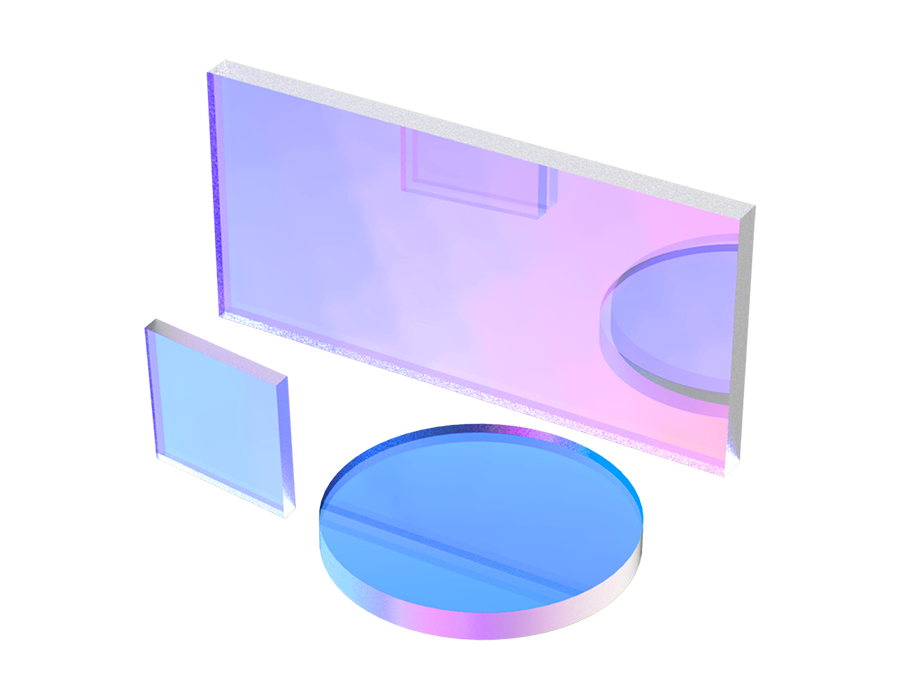

High Performance Dichroic Filter

Grand Unified Optics provides a standard product of high-performance dichroic filter with a diameter of 12.5mm and 25mm in packaged and unpackaged versions and a laser wavelength of 488nm-1064nm. The incident angle is 45°. The product has the characteristics of a steep transition from reflection to transmission, and the transition steepness is less than 1% of the laser wavelength. It is widely used in microscopic imaging, Raman spectroscopy, biochemical analysis instruments, life sciences, education and scientific research and other related fields. We can also offer custom coatings according to your requirements.

Material Fused Silica

Diameter Tolerance ＋0.0/-0.1mm

Mount Thickness 3.5mm

Substrate Thickness 2.0mm

Thickness Tolerance ±0.1mm

Surface Quality 60-40

Clear Aperture ≥10mm（Φ12.5mm), ≥22mm（Φ25mm)

Laser Damage Threshold 1J/cm2@532nm (10ns pulse width)

AOI 45°with a shift of≤0.20%/degree (35-55°) see MyLight for performance

Note Arrow on ring indicates preferred direction of propagation of light.

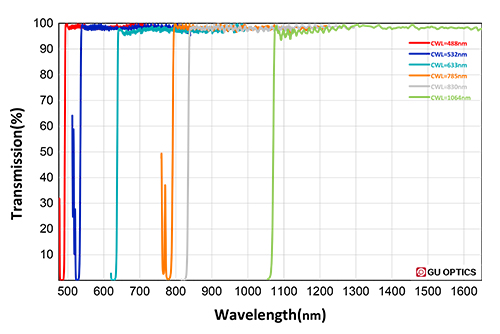

Products Spectral curve Related Download

Dia

Select..  

Laser Wavelength

Select..  

Transmission Band

Select..  

Reflection Wavelength

Select..  

Clear

Pro No.

Parameter

Dia

Laser Wavelength

Transmission Band

Reflection Wavelength

Delivery time

Compare

Price

Purchase

238576

Parameter list

Φ12.5mm(Mounted)

488nm

Tavg＞93%@494.3-756.4nm

Rabs＞94%@488nm

Consult



Consult



238577

Parameter list

Φ12.5mm(Mounted)

532nm

Tavg＞93%@538.9-824.8nm

Rabs＞94%@532nm

Consult



Consult



238578

Parameter list

Φ12.5mm(Mounted)

632.8nm

Tavg＞93%@641-980.8nm

Rabs＞94%@632.8nm

Consult



Consult



238579

Parameter list

Φ12.5mm(Mounted)

785nm

Tavg＞93%@795.2-1213.8nm

Rabs＞94%@785nm

Consult



Consult



238580

Parameter list

Φ12.5mm(Mounted)

830nm

Tavg＞93%@840.8-1286.5nm

Rabs＞94%@830nm

Consult



Consult



238581

Parameter list

Φ12.5mm(Mounted)

1064nm

Tavg＞93%@1077.8-1650.8nm

Rabs＞94%@1064nm

Consult



Consult



238582

Parameter list

Φ12.5mm

488nm

Tavg＞93%@494.3-756.4nm

Rabs＞94%@488nm

Consult



Consult



238583

Parameter list

Φ12.5mm

532nm

Tavg＞93%@538.9-824.8nm

Rabs＞94%@532nm

Consult



Consult



238584

Parameter list

Φ12.5mm

632.8nm

Tavg＞93%@641-980.8nm

Rabs＞94%@632.8nm

Consult



Consult



238585

Parameter list

Φ12.5mm

785nm

Tavg＞93%@795.2-1213.8nm

Rabs＞94%@785nm

Consult



Consult



238586

Parameter list

Φ12.5mm

830nm

Tavg＞93%@840.8-1286.5nm

Rabs＞94%@830nm

Consult



Consult



238587

Parameter list

Φ12.5mm

1064nm

Tavg＞93%@1077.8-1650.8nm

Rabs＞94%@1064nm

Consult



Consult



238588

Parameter list

Φ25mm(Mounted)

488nm

Tavg＞93%@494.3-756.4nm

Rabs＞94%@488nm

Consult



Consult



238589

Parameter list

Φ25mm(Mounted)

532nm

Tavg＞93%@538.9-824.8nm

Rabs＞94%@532nm

Consult



Consult



238590

Parameter list

Φ25mm(Mounted)

632.8nm

Tavg＞93%@641-980.8nm

Rabs＞94%@632.8nm

Consult



Consult



238591

Parameter list

Φ25mm(Mounted)

785nm

Tavg＞93%@795.2-1213.8nm

Rabs＞94%@785nm

Consult



Consult



238592

Parameter list

Φ25mm(Mounted)

830nm

Tavg＞93%@840.8-1286.5nm

Rabs＞94%@830nm

Consult



Consult



238593

Parameter list

Φ25mm(Mounted)

1064nm

Tavg＞93%@1077.8-1650.8nm

Rabs＞94%@1064nm

Consult



Consult



238594

Parameter list

Φ25mm

488nm

Tavg＞93%@494.3-756.4nm

Rabs＞94%@488nm

Consult



Consult



238595

Parameter list

Φ25mm

532nm

Tavg＞93%@538.9-824.8nm

Rabs＞94%@532nm

Consult



Consult


