Neutral Density (ND) Filter

 Absorptive Neutral Density (ND) Filter

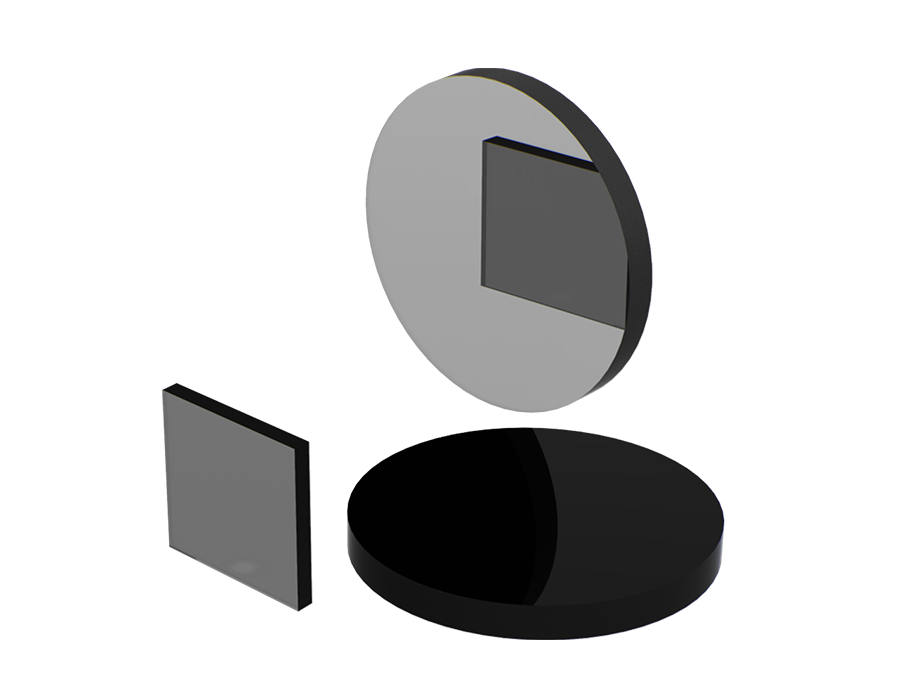

Absorptive Neutral Density (ND) Filter

Different from reflective filters, absorptive neutral density filters use various neutral density optical glasses to offer a range of densities by controlling materials and thickness .These filters have low surface reflection and flat spectral response in the visible range. They can be widely used in spectral measurement, imaging optical systems, machine vision systems and optical output attenuation of low power lasers

Material Neutral grey glass

Transmitted Wavefront error λ/ 4 @ 633 nm

Parallelism ＜1 arcmin

Surface Quality 60-40

Dimensional Tolerance ＋0.0/-0.2mm

Thickness Tolerance ±0.5mm

Applied Wavelength Range 400~700nm

*Optical Density Tolerance ±5% @633nm

CA ＞90%

* Optical Density(OD) OD= -log(T/100) T

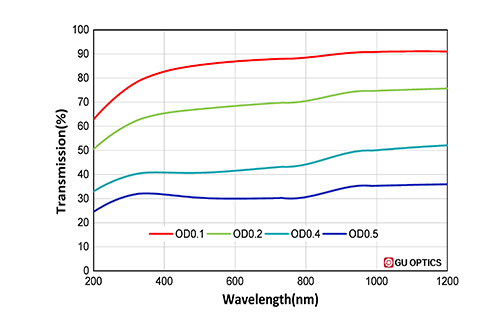

Products Spectral curve Related Download

Dia

Select..  

Material

Select..  

 Neutral-grey-glass

Select..  

Clear

Pro No.

Parameter

Dia

Material

Delivery time

Compare

Price

Purchase

248566

Parameter list

Φ12.5mm

0.1

Neutral-grey-glass

79%

In stock



$12.50



248567

Parameter list

Φ12.5mm

0.15

Neutral-grey-glass

70%

In stock



$12.50



248568

Parameter list

Φ12.5mm

0.2

Neutral-grey-glass

63%

In stock



$12.50



248569

Parameter list

Φ12.5mm

0.3

Neutral-grey-glass

50%

In stock



$12.50



248570

Parameter list

Φ12.5mm

0.4

Neutral-grey-glass

40%

In stock



$12.50



248571

Parameter list

Φ12.5mm

0.5

Neutral-grey-glass

32%

In stock



$12.50



248572

Parameter list

Φ12.5mm

0.6

Neutral-grey-glass

25%

In stock



$12.50



248573

Parameter list

Φ12.5mm

0.7

Neutral-grey-glass

20%

In stock



$12.50



248574

Parameter list

Φ12.5mm

0.9

Neutral-grey-glass

12.5%

In stock



$12.50



248575

Parameter list

Φ12.5mm

Neutral-grey-glass

10%

In stock



$12.50



248576

Parameter list

Φ12.5mm

1.3

Neutral-grey-glass

In stock



$12.50



248577

Parameter list

Φ12.5mm

Neutral-grey-glass

In stock



$12.50



248578

Parameter list

Φ12.5mm

Neutral-grey-glass

0.1%

In stock



$12.50



248579

Parameter list

Φ12.5mm

Neutral-grey-glass

0.01%

In stock



$12.50



248580

Parameter list

Φ25mm

0.1

Neutral-grey-glass

79%

In stock



$22.50



248581

Parameter list

Φ25mm

0.15

Neutral-grey-glass

70%

In stock



$22.50



248582

Parameter list

Φ25mm

0.2

Neutral-grey-glass

63%

In stock



$22.50



248583

Parameter list

Φ25mm

0.3

Neutral-grey-glass

50%

In stock



$22.50



248584

Parameter list

Φ25mm

0.4

Neutral-grey-glass

40%

In stock



$22.50



248585

Parameter list

Φ25mm

0.5

Neutral-grey-glass

32%

In stock



$22.50



More products >>
