Neutral Density (ND) Filter

 High quality UV Metal coated Neutral Density (ND) Filter

High quality UV Metal coated Neutral Density (ND) Filter

Neutral Density (ND) Filters are often used in imaging systems and laser systems to avoid the damage to camera sensors or other optical components by high power light. ND Filters are designed to reduce transmission of partial light evenly either by absorbing or reflecting the light.

Material UV Fused Silica

Transmitted Wavefront error λ/ 4 @ 633 nm

Parallelism ＜30 arcsec

Surface Quality 20-10

Diameter Tolerance ＋0.0/-0.1mm

Thickness 2mm ±0.2mm

Applied Wavelength Range 200~1200nm

* Optical Density Tolerance ±5% @300nm

CA ＞90%

* Optical Density(OD) OD= -log(T/100) T

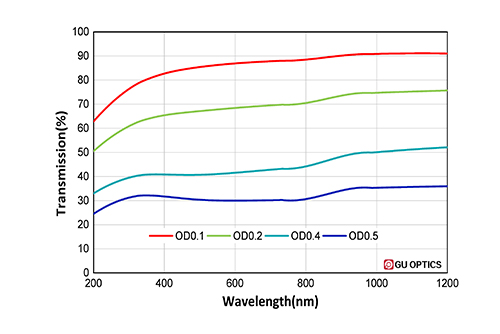

Products Spectral curve Related Download

Dia

Select..  

Design Wavelength

Select..  

 300nm

Material

Select..  

 UV-Fused-Silica

Clear

Pro No.

Parameter

Dia

Design Wavelength

Material

Delivery time

Compare

Price

Purchase

248500

Parameter list

Φ12.5mm

0.1

300nm

UV-Fused-Silica

In stock



$62.50



248501

Parameter list

Φ12.5mm

0.2

300nm

UV-Fused-Silica

In stock



$62.50



248502

Parameter list

Φ12.5mm

0.3

300nm

UV-Fused-Silica

In stock



$62.50



248503

Parameter list

Φ12.5mm

0.4

300nm

UV-Fused-Silica

In stock



$62.50



248504

Parameter list

Φ12.5mm

0.5

300nm

UV-Fused-Silica

In stock



$62.50



248505

Parameter list

Φ12.5mm

0.6

300nm

UV-Fused-Silica

In stock



$62.50



248506

Parameter list

Φ12.5mm

0.7

300nm

UV-Fused-Silica

In stock



$62.50



248507

Parameter list

Φ12.5mm

300nm

UV-Fused-Silica

In stock



$62.50



248508

Parameter list

Φ12.5mm

1.3

300nm

UV-Fused-Silica

In stock



$62.50



248509

Parameter list

Φ12.5mm

300nm

UV-Fused-Silica

In stock



$62.50



248510

Parameter list

Φ12.5mm

300nm

UV-Fused-Silica

In stock



$62.50



248511

Parameter list

Φ25mm

0.1

300nm

UV-Fused-Silica

In stock



$75.00



248512

Parameter list

Φ25mm

0.2

300nm

UV-Fused-Silica

In stock



$75.00



248513

Parameter list

Φ25mm

0.3

300nm

UV-Fused-Silica

In stock



$75.00



248514

Parameter list

Φ25mm

0.4

300nm

UV-Fused-Silica

In stock



$75.00



248515

Parameter list

Φ25mm

0.5

300nm

UV-Fused-Silica

In stock



$75.00



248516

Parameter list

Φ25mm

0.6

300nm

UV-Fused-Silica

In stock



$75.00



248517

Parameter list

Φ25mm

0.7

300nm

UV-Fused-Silica

In stock



$75.00



248518

Parameter list

Φ25mm

300nm

UV-Fused-Silica

In stock



$75.00



248519

Parameter list

Φ25mm

1.3

300nm

UV-Fused-Silica

In stock



$75.00


