Cylinder Lenses

 Positive Achromatic Cylinder Lenses

Positive Achromatic Cylinder Lenses

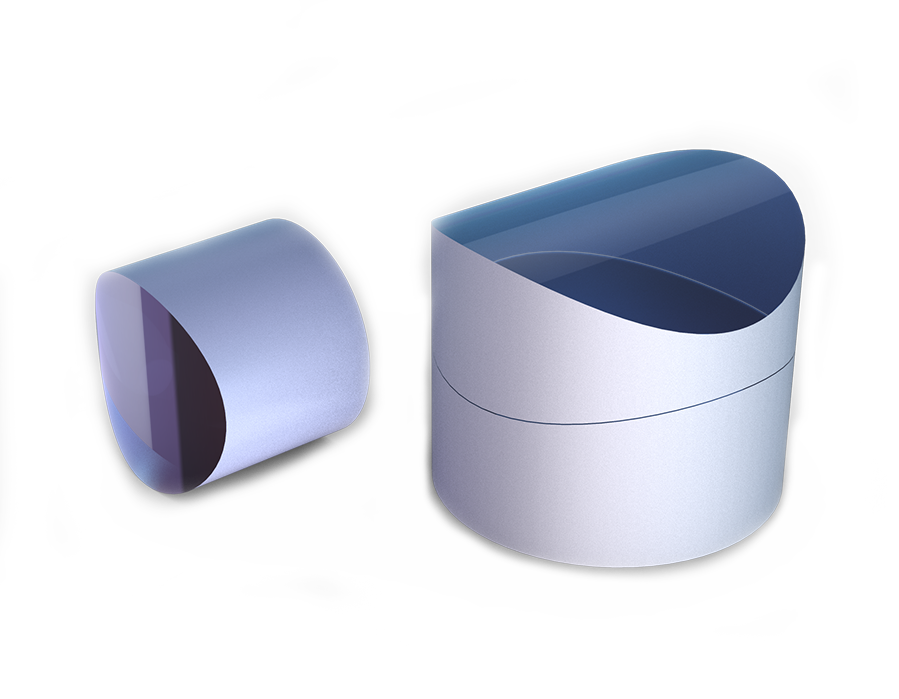

Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Irregularity (P-V) 1λ @632.8nm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance ＜5 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Material

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Material

Delivery time

Compare

Price

Purchase

159000

Parameter list

12.50mm

25.00mm

AR@400~700nm

H-K9/H-ZF2

Consult



$324.07



159001

Parameter list

12.50mm

50.00mm

AR@400~700nm

H-K9/H-ZF2

Consult



$324.07



159002

Parameter list

12.50mm

75.00mm

AR@400~700nm

H-K9/H-ZF2

Consult



$324.07



159003

Parameter list

12.50mm

100.00mm

AR@400~700nm

H-K9/H-ZF2

Consult



$324.07



159004

Parameter list

25.40mm

50.00mm

AR@400~700nm

H-K9/H-ZF4

Consult



$361.11



159005

Parameter list

25.40mm

75.00mm

AR@400~700nm

H-K9/H-ZF1

Consult



$361.11



159006

Parameter list

25.40mm

100.00mm

AR@400~700nm

H-K9/H-ZF1

Consult



$361.11



159007

Parameter list

25.40mm

150.00mm

AR@400~700nm

H-K9/H-ZF1

Consult



$361.11



159008

Parameter list

25.40mm

200.00mm

AR@400~700nm

H-K9/H-ZF1

Consult



$361.11



159009

Parameter list

25.40mm

250.00mm

AR@400~700nm

H-K9/H-ZF1

Consult



$361.11



159010

Parameter list

12.50mm

25.00mm

AR@650~1050nm

H-K9/H-ZF2

Consult



$324.07



159011

Parameter list

12.50mm

50.00mm

AR@650~1050nm

H-K9/H-ZF2

Consult



$324.07



159012

Parameter list

12.50mm

75.00mm

AR@650~1050nm

H-K9/H-ZF2

Consult



$324.07



159013

Parameter list

12.50mm

100.00mm

AR@650~1050nm

H-K9/H-ZF2

Consult



$324.07



159014

Parameter list

25.40mm

50.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



159015

Parameter list

25.40mm

75.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



159016

Parameter list

25.40mm

100.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



159017

Parameter list

25.40mm

150.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



159018

Parameter list

25.40mm

200.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



159019

Parameter list

25.40mm

250.00mm

AR@650~1050nm

H-K9/H-ZF13

Consult



$361.11



More products >>

Curve download

H-K9L Plano-Convex (PCX) Cylinder Lenses

UV Fused Silica PCX Cylinder Lenses

H-K9L Plano-Concave (PCV) Cylinder Lenses

UV Fused Silica PCV Cylinder Lenses
