H-K9L Plano-Convex (PCX) Cylinder Lenses

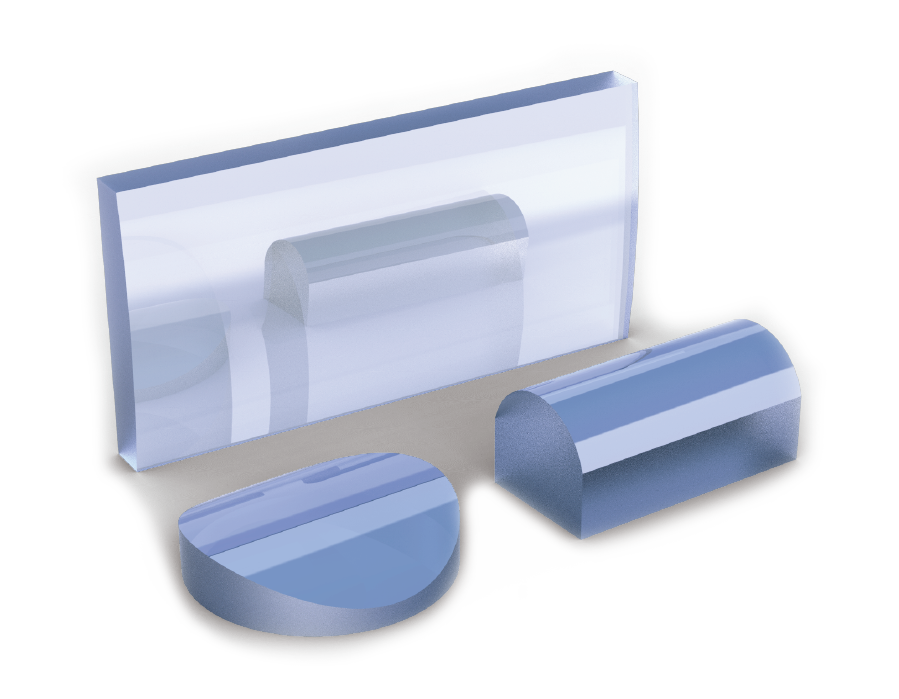

Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.

Material H-K9L Optical Glass

Design Wavelength 587.6nm

Dimensional Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3~5 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

 2.00mm
 2.02mm
 2.05mm
 2.08mm
 2.1mm
 2.12mm
 2.16mm
 2.24mm
 2.31mm
 2.32mm
 2.38mm
 2.49mm
 2.50mm
 2.60mm
 2.61mm
 2.77mm
 2.80mm
 3.00mm
 3.01mm
 3.10mm
 3.19mm
 3.20mm
 3.22mm
 3.29mm
 3.30mm
 3.31mm
 3.32mm
 3.39mm
 3.40mm
 3.49mm
 3.50mm
 3.53mm
 3.60mm
 3.61mm
 3.65mm
 3.70mm
 3.80mm
 3.8mm
 3.98mm
 4.00mm
 4.02mm
 4.07mm
 4.10mm
 4.31mm
 4.50mm
 4.60mm
 5.20mm
 5.22mm
 5.70mm
 5.90mm
 5.9mm
 6.57mm
 6.70mm
 6.80mm
 11.50mm
 11.62mm
 21.60mm

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

155000

Parameter list

5.0x5.0mm

20.00mm

Uncoated

2.31mm

In stock



$34.17



155001

Parameter list

6.0x4.0mm

4.00mm

Uncoated

3.60mm

In stock



$34.17



155002

Parameter list

6.0x4.0mm

5.80mm

Uncoated

2.80mm

In stock



$34.17



155003

Parameter list

8.0x4.0mm

4.00mm

Uncoated

3.60mm

In stock



$34.17



155004

Parameter list

8.0x4.0mm

5.80mm

Uncoated

2.80mm

In stock



$34.17



155005

Parameter list

8.0x6.0mm

6.40mm

Uncoated

4.00mm

In stock



$34.17



155006

Parameter list

9.0x7.0mm

7.70mm

Uncoated

4.10mm

In stock



$34.17



155007

Parameter list

10.0x10.0mm

12.70mm

Uncoated

4.31mm

In stock



$35.83



155008

Parameter list

10.0x10.0mm

20.00mm

Uncoated

3.29mm

In stock



$35.83



155009

Parameter list

10.0x10.0mm

25.00mm

Uncoated

3.01mm

In stock



$35.83



155010

Parameter list

12.0x6.0mm

6.40mm

Uncoated

4.00mm

In stock



$35.83



155011

Parameter list

12.0x10.0mm

10.00mm

Uncoated

5.90mm

In stock



$35.83



155012

Parameter list

12.0x10.0mm

12.70mm

Uncoated

4.31mm

In stock



$35.83



155013

Parameter list

12.0x10.0mm

15.00mm

Uncoated

3.80mm

In stock



$35.83



155014

Parameter list

12.0x10.0mm

20.00mm

Uncoated

3.30mm

In stock



$35.83



155015

Parameter list

12.0x10.0mm

25.00mm

Uncoated

3.00mm

In stock



$35.83



155016

Parameter list

12.0x10.0mm

40.00mm

Uncoated

2.60mm

In stock



$35.83



155017

Parameter list

Ф12.5mm

12.70mm

Uncoated

6.57mm

In stock



$35.83



155018

Parameter list

Ф12.5mm

25.00mm

Uncoated

3.61mm

In stock



$35.83



155019

Parameter list

Ф12.5mm

50.00mm

Uncoated

2.77mm

In stock



$35.83



More products >>

Curve download

UV Fused Silica PCX Cylinder Lenses

H-K9L Plano-Concave (PCV) Cylinder Lenses

UV Fused Silica PCV Cylinder Lenses

Calcium Fluoride（CaF2）Plano-Convex (PCX) Cylinder Lenses
