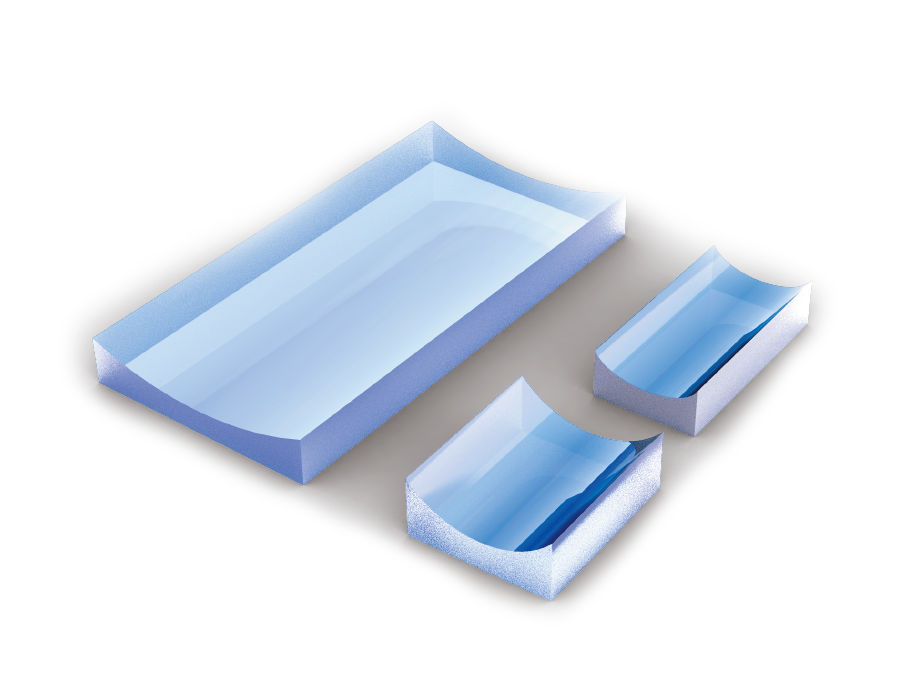

H-K9L Plano-Concave (PCV) Cylinder Lenses

Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.

Material H-K9L Optical Glass

Design Wavelength 587.6nm

Dimensional Tolerance +0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3~5 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia/尺寸

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia/尺寸

EFL

Coating

Delivery time

Compare

Price

Purchase

155332

Parameter list

8.0x4.0mm

-4.00mm

Uncoated

2.00mm

In stock



$34.17



155333

Parameter list

8.0x4.0mm

-5.80mm

Uncoated

2.00mm

Consult



$34.17



155334

Parameter list

8.0x6.0mm

-6.40mm

Uncoated

2.00mm

In stock



$34.17



155335

Parameter list

10.0x10.0mm

-12.70mm

Uncoated

2.00mm

In stock



$35.83



155336

Parameter list

10.0x10.0mm

-25.00mm

Uncoated

2.00mm

In stock



$35.83



155337

Parameter list

12.0x6.0mm

-6.40mm

Uncoated

2.00mm

In stock



$35.83



155338

Parameter list

12.0x10.0mm

-12.70mm

Uncoated

2.00mm

In stock



$35.83



155339

Parameter list

12.0x10.0mm

-15.00mm

Uncoated

2.00mm

In stock



$35.83



155340

Parameter list

12.0x10.0mm

-25.00mm

Uncoated

2.00mm

In stock



$35.83



155341

Parameter list

12.0x10.0mm

-40.00mm

Uncoated

2.00mm

In stock



$35.83



155342

Parameter list

20.0x10.0mm

-12.70mm

Uncoated

2.00mm

In stock



$35.83



155343

Parameter list

20.0x10.0mm

-25.00mm

Uncoated

2.00mm

In stock



$35.83



155344

Parameter list

21.0x19.0mm

-19.00mm

Uncoated

2.00mm

In stock



$35.83



155345

Parameter list

20.0x20.0mm

-50.00mm

Uncoated

2.00mm

In stock



$35.83



155346

Parameter list

20.0x20.0mm

-75.00mm

Uncoated

3.00mm

In stock



$35.83



155347

Parameter list

20.0x20.0mm

-100.00mm

Uncoated

3.00mm

In stock



$35.83



155348

Parameter list

20.0x20.0mm

-150.00mm

Uncoated

3.00mm

In stock



$35.83



155349

Parameter list

20.0x20.0mm

-200.00mm

Uncoated

3.00mm

In stock



$35.83



155350

Parameter list

20.0x20.0mm

-250.00mm

Uncoated

3.00mm

In stock



$35.83



155351

Parameter list

20.0x20.0mm

-300.00mm

Uncoated

3.00mm

In stock



$35.83



More products >>

Curve download

H-K9L Plano-Convex (PCX) Cylinder Lenses

UV Fused Silica PCX Cylinder Lenses

UV Fused Silica PCV Cylinder Lenses

Calcium Fluoride（CaF2）Plano-Convex (PCX) Cylinder Lenses
