 UV Fused Silica PCV Cylinder Lenses

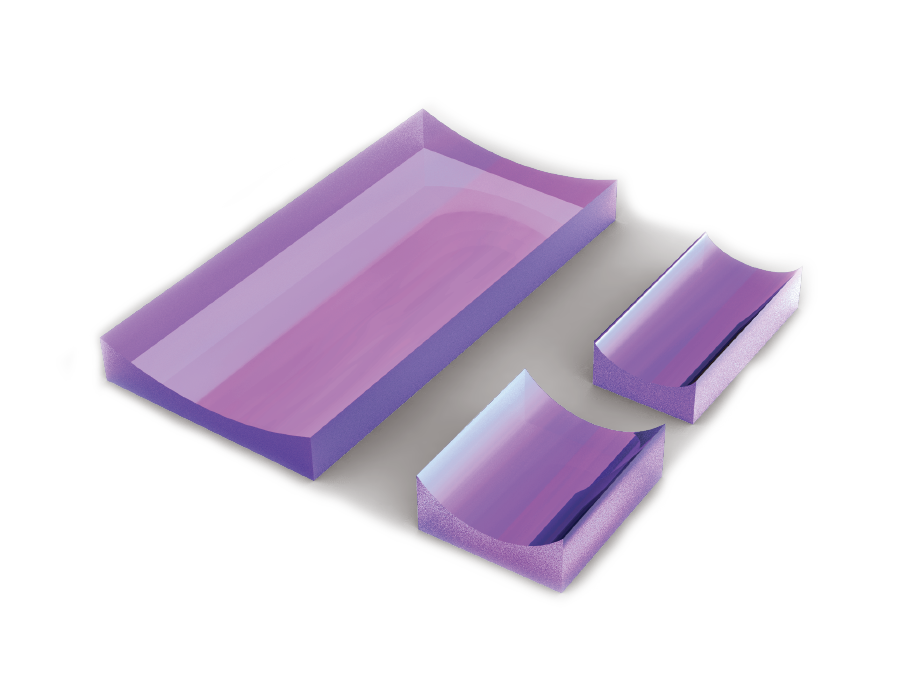

UV Fused Silica PCV Cylinder Lenses

Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.

Material UV Fused Silica

Design Wavelength 587.6nm

Dimensional Tolerance +/-0.2mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±2%

Centering Tolerance 3~5 arcmin

Surface Quality 20-10

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia/尺寸

Select..  

EFL

Select..  

Coating

Select..  

 2.00mm

Clear

Pro No.

Parameter

Dia/尺寸

EFL

Coating

Delivery time

Compare

Price

Purchase

155464

Parameter list

10.0x10.0mm

-12.70mm

Uncoated

2.00mm

In stock



$58.33



155465

Parameter list

10.0x10.0mm

-20.00mm

Uncoated

2.00mm

In stock



$58.33



155466

Parameter list

10.0x10.0mm

-25.00mm

Uncoated

2.00mm

In stock



$58.33



155467

Parameter list

10.0x10.0mm

-40.00mm

Uncoated

2.00mm

In stock



$58.33



155468

Parameter list

10.0x10.0mm

-50.00mm

Uncoated

2.00mm

In stock



$58.33



155469

Parameter list

10.0x10.0mm

-75.00mm

Uncoated

2.00mm

In stock



$58.33



155470

Parameter list

10.0x10.0mm

-100.00mm

Uncoated

2.00mm

In stock



$58.33



155471

Parameter list

10.0x10.0mm

-150.00mm

Uncoated

2.00mm

In stock



$58.33



155472

Parameter list

10.0x10.0mm

-200.00mm

Uncoated

2.00mm

In stock



$58.33



155473

Parameter list

10.0x10.0mm

-250.00mm

Uncoated

2.00mm

In stock



$58.33



155474

Parameter list

10.0x10.0mm

-300.00mm

Uncoated

2.00mm

In stock



$58.33



155475

Parameter list

20.0x10.0mm

-12.70mm

Uncoated

2.00mm

In stock



$65.83



155476

Parameter list

20.0x10.0mm

-20.00mm

Uncoated

2.00mm

In stock



$65.83



155477

Parameter list

20.0x10.0mm

-25.00mm

Uncoated

2.00mm

In stock



$65.83



155478

Parameter list

20.0x10.0mm

-40.00mm

Uncoated

2.00mm

In stock



$65.83



155479

Parameter list

20.0x10.0mm

-50.00mm

Uncoated

2.00mm

In stock



$65.83



155480

Parameter list

20.0x10.0mm

-75.00mm

Uncoated

2.00mm

In stock



$65.83



155481

Parameter list

20.0x10.0mm

-100.00mm

Uncoated

2.00mm

In stock



$65.83



155482

Parameter list

20.0x10.0mm

-150.00mm

Uncoated

2.00mm

In stock



$65.83



155483

Parameter list

20.0x10.0mm

-200.00mm

Uncoated

2.00mm

In stock



$65.83



More products >>

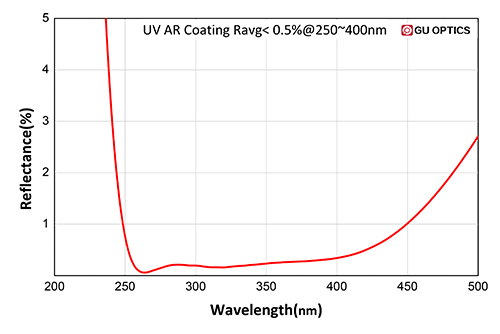

Curve download

H-K9L Plano-Convex (PCX) Cylinder Lenses

UV Fused Silica PCX Cylinder Lenses

H-K9L Plano-Concave (PCV) Cylinder Lenses

Calcium Fluoride（CaF2）Plano-Convex (PCX) Cylinder Lenses
