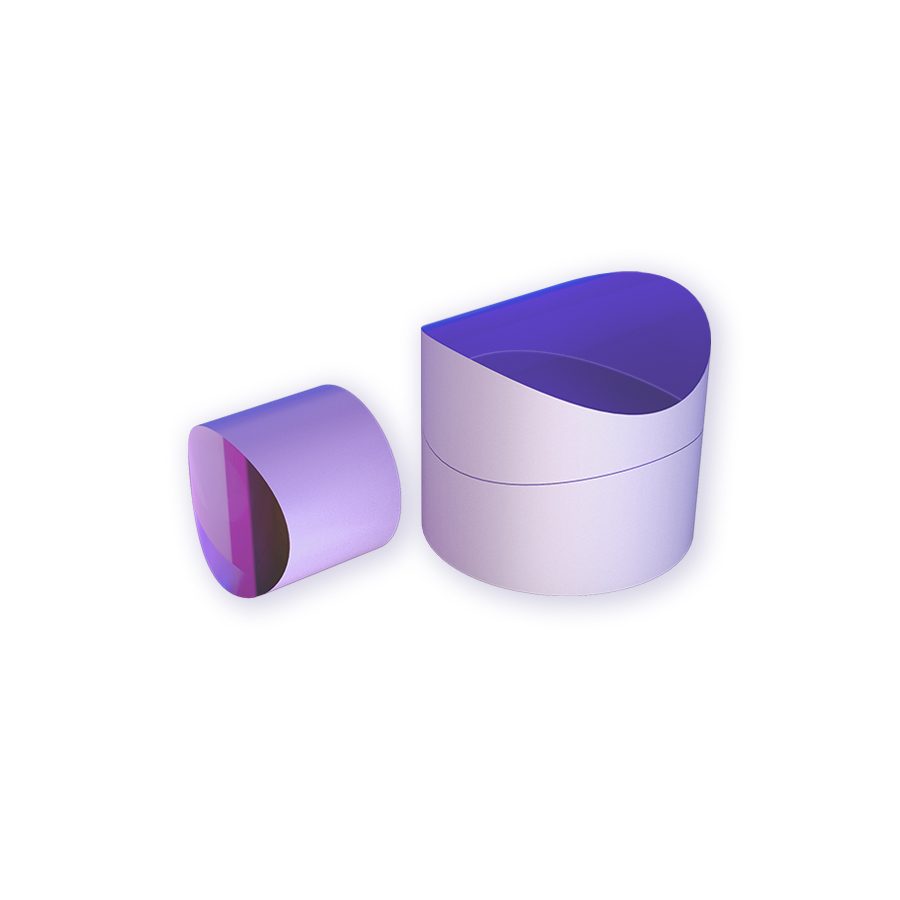

Positive Achromatic Cylinder Lenses D=12.50mm F=75.00mm VIS H-K9/H-ZF2





Share

WeChat

Scan and add Wechat

Positive Achromatic Cylinder Lenses D=12.50mm F=75.00mm VIS H-K9/H-ZF2

Price Option

Product No. 159002

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

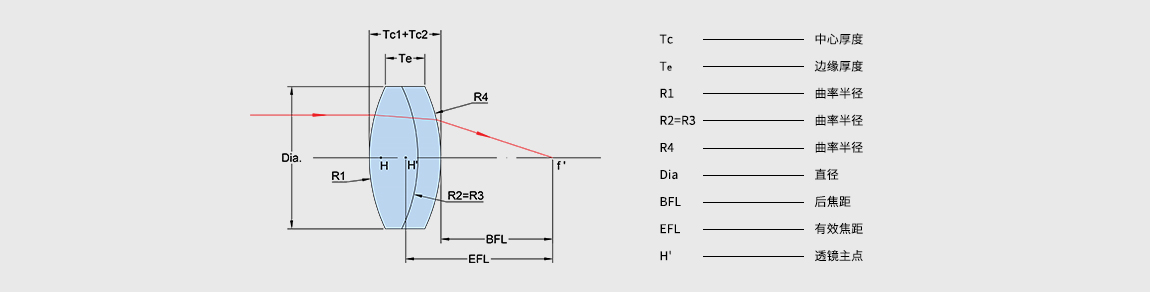

Parameters Spectrum Curve Related Products Description

Dia 12.50mm

EFL 75.00mm

Coating AR@400~700nm

Material H-K9/H-ZF2

BFL 71.79mm

CT 5.50mm

Available Mount Ring 500030

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Surface Accuracy 1λ @632.8nm

Focal Length Tolerance ±2%

Centering Tolerance <5arcmin

Surface Quality 40/20-60/40

Bevel 0.2mmX45°

Positive Achromatic Cylinder Lenses D=12.50mm F=100.00mm VIS H-K9/H-ZF2

Positive Achromatic Cylinder Lenses D=12.50mm F=100.00mm VIS H-K9/H-ZF2

Positive Achromatic Cylinder Lenses D=25.40mm F=50.00mm VIS H-K9/H-ZF4

Positive Achromatic Cylinder Lenses D=25.40mm F=50.00mm VIS H-K9/H-ZF4

Positive Achromatic Cylinder Lenses D=25.40mm F=75.00mm VIS H-K9/H-ZF1

Positive Achromatic Cylinder Lenses D=25.40mm F=75.00mm VIS H-K9/H-ZF1

Positive Achromatic Cylinder Lenses D=25.40mm F=100.00mm VIS H-K9/H-ZF1

Positive Achromatic Cylinder Lenses D=25.40mm F=100.00mm VIS H-K9/H-ZF1

Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.
