Beamsplitter Components

 UV Wedge Plate Beamsplitter

UV Wedge Plate Beamsplitter

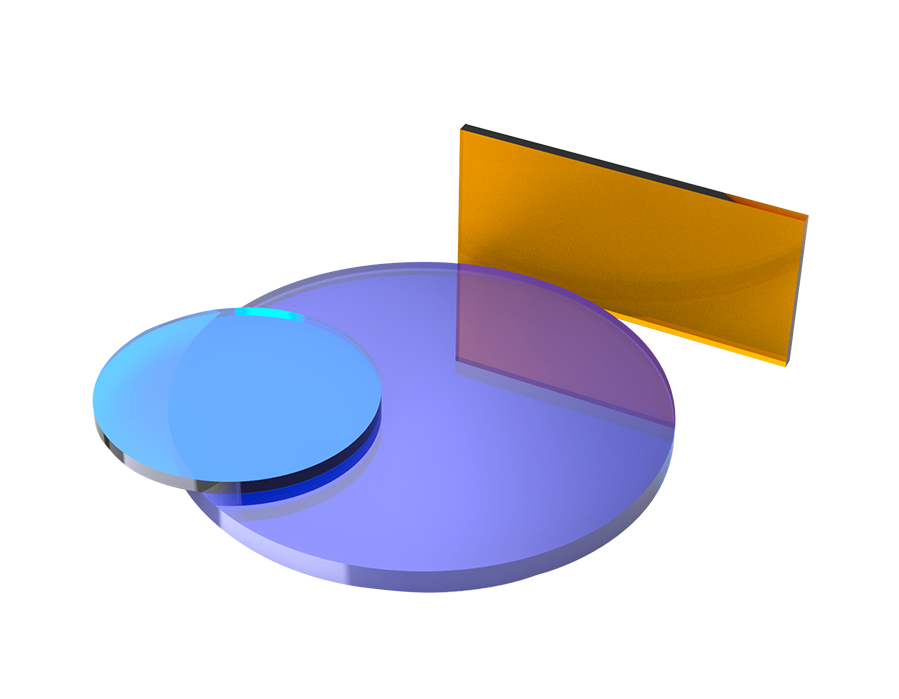

The wedge angle and back AR coating of the wedge plate beamsplitter reduces the interference of ghost imaging from the back reflection. The high precision substrate will make sure the reflection and the transmission wavefront error. Image Optics provide various kinds of wedge plate Beamsplitter with multiple R/T ratios.

Material UV Fused Silica

Surface Accuracy λ/ 10 @ 633 nm

Wedge Angle 30 ± 10 arcmin

Surface Quality 10-5

Clear Aperture 90%

Dimensions Tolerance +0/-0.25mm

Thickness Tolerance of Thick Edge ±0.25mm

Bevel Protective Bevel 0.2~0.5mmX45°

Angle of Incidence (AOI) 45°Design

Coating S1 Beam Splitting Coating：R/T ±10% (AVG of Designed Bandwidth) S2 AR Coating： Ravg＜1% (AVG of Designed Bandwidth)

Products Spectral curve Related Download

Dia

Select..  

R/T

Select..  

Coating

Select..  

Material

Select..  

 UV-Fused-Silica

Clear

Pro No.

Parameter

Dia

R/T

Coating

Material

Delivery time

Compare

Price

Purchase

349500

Parameter list

Φ12.5mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349501

Parameter list

Φ12.5mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349502

Parameter list

Φ12.5mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349503

Parameter list

12.5x12.5mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349504

Parameter list

12.5x12.5mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349505

Parameter list

12.5x12.5mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$62.50



349506

Parameter list

Φ25.0mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349507

Parameter list

Φ25.0mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349508

Parameter list

Φ25.0mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349509

Parameter list

25.0x25.0mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349510

Parameter list

25.0x25.0mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349511

Parameter list

25.0x25.0mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$75.00



349512

Parameter list

Φ50.0mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349513

Parameter list

Φ50.0mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349514

Parameter list

Φ50.0mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349515

Parameter list

50.0x50.0mm

30R/70T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349516

Parameter list

50.0x50.0mm

50R/50T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349517

Parameter list

50.0x50.0mm

70R/30T

S2-Coated-ARAR-@250~400nm

UV-Fused-Silica

In stock



$125.00



349518

Parameter list

Φ12.5mm

30R/70T

S2-Coated-ARAR-@400-700nm

UV-Fused-Silica

In stock



$62.50



349519

Parameter list

Φ12.5mm

50R/50T

S2-Coated-ARAR-@400-700nm

UV-Fused-Silica

In stock



$62.50



More products >>

Curve download

Broadband Plate Beamsplitters

Elliptical Plate Beamsplitters

Economic plate Beamsplitters
