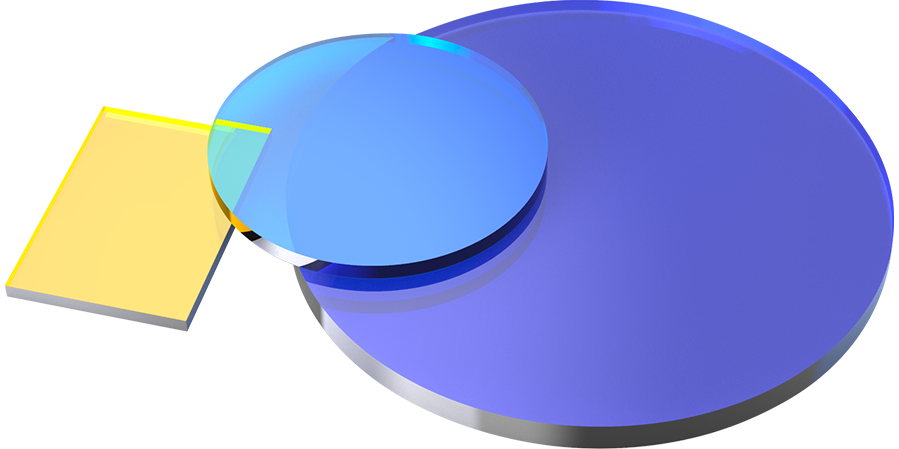

Broadband Plate Beamsplitters
The front surface of the plate beamsplitters are coated with a beam splitting coating, and the rear surface is usually coated with AR coating to reduce the interference of beams and ghosting. The plate beamsplitters are lightweight and economical in price.
Broadband Plate Beamsplitters
Materia H-K9L Optical Glass
Surface Accuracy λ/ 2 (per inch) @ 633 nm
Parallelism ＜ 1 arcmin
Surface Quality 40-20
Clear Aperture 90%
Dimensions Tolerance +0.0/-0.25mm
Thickness 3mm±0.2mm
Bevel Protective Bevel 0.2~0.5mmX45°
Angle of Incidence (AOI) 45° Design
Coating S1 Beam Splitting Coating： R/T ±10% (AVG of Designed Bandwidth) S2 AR Coating：Ravg＜1% (AVG of Designed Bandwidth)

Dia

R/T

Coating

Material

Clear
Pro No.
Parameter
Dia
R/T
Coating
Material
Delivery time
Compare
Price
Purchase
340500
Parameter list
Φ12.5mm
20R/80T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340501
Parameter list
Φ12.5mm
30R/70T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340502
Parameter list
Φ12.5mm
40R/60T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340503
Parameter list
Φ12.5mm
50R/50T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340504
Parameter list
Φ12.5mm
60R/40T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340505
Parameter list
Φ12.5mm
70R/30T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340506
Parameter list
Φ12.5mm
80R/20T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$35.83
340507
Parameter list
12.5x17.5mm
20R/80T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340508
Parameter list
12.5x17.5mm
30R/70T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340509
Parameter list
12.5x17.5mm
40R/60T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340510
Parameter list
12.5x17.5mm
50R/50T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340511
Parameter list
12.5x17.5mm
60R/40T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340512
Parameter list
12.5x17.5mm
70R/30T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340513
Parameter list
12.5x17.5mm
80R/20T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$37.50
340514
Parameter list
Φ25.0mm
20R/80T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$45.83
340515
Parameter list
Φ25.0mm
30R/70T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$45.83
340516
Parameter list
Φ25.0mm
40R/60T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$45.83
340517
Parameter list
Φ25.0mm
50R/50T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$45.83
340518
Parameter list
Φ25.0mm
60R/40T
S2-Coated-ARAR-@350~700nm
H-K9L
In stock
$45.83
340519
Parameter list
Φ25.0mm
70R/30T
S2-Coated-ARAR-@350~700nm
H-K9L
Consult
$45.83
