Broadband Plate Beamsplitters Φ25.0mm 30R/70T VIS H-K9L Optical Glass





Share

WeChat

Scan and add Wechat

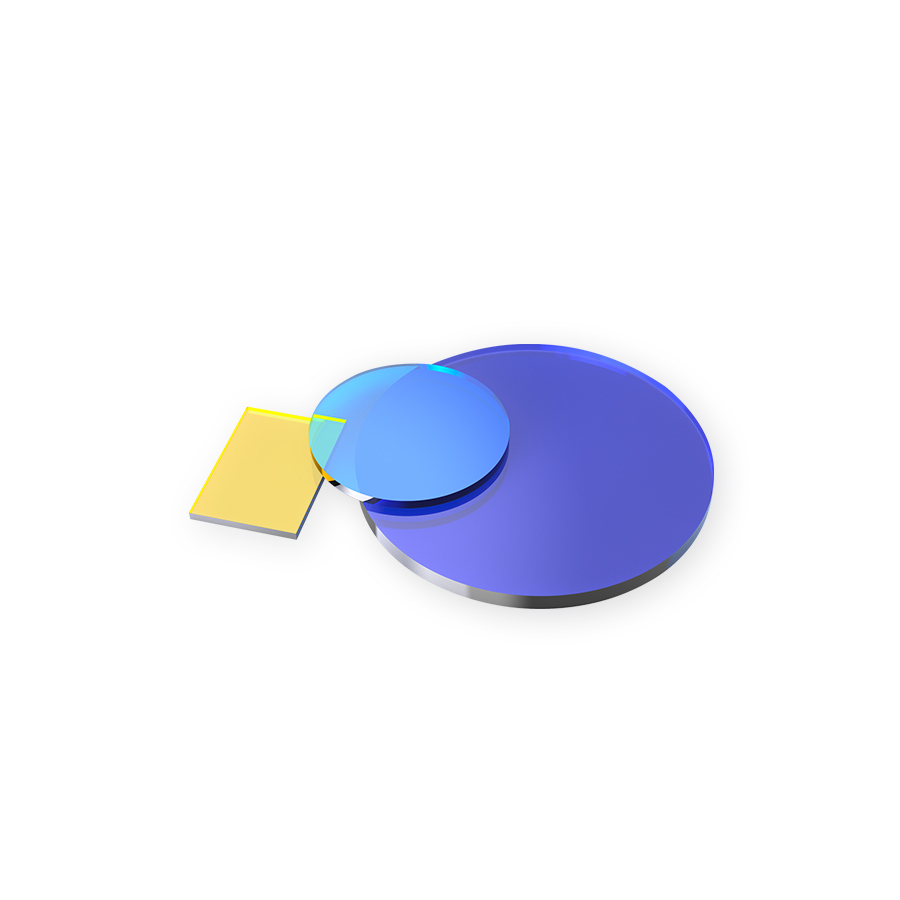

Broadband Plate Beamsplitters Φ25.0mm 30R/70T VIS H-K9L Optical Glass

Price Option

Product No. 340515

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia Φ25.0mm

R/T 30R/70T

Coating S2-Coated-ARAR-@350~700nm

Material H-K9L

Surface Quality λ/2 (per inch) @ 633 nm

Surface Quality 40/20-60/40

Parallelism ＜1arcmin

Clear Aperture 90%

Dimensions Tolerance +0.0/-0.25mm

Thickness 3mm±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Broadband Plate Beamsplitters Φ25.0mm 40R/60T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 40R/60T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 50R/50T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 50R/50T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 60R/40T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 60R/40T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 70R/30T VIS H-K9L Optical Glass

Broadband Plate Beamsplitters Φ25.0mm 70R/30T VIS H-K9L Optical Glass

分光平片前表面镀分光膜，后表面通常镀增透膜以减弱光束间及鬼像的干涉效应。分光平片重量较轻、价格适中，制作相对容易。联合光科技提供多种分光平片，包括Broadband Plate Beamsplitters、镀铝点阵分光平片、椭圆形分光片及可见光分光平片。
