Beamsplitter Components

 Elliptical Plate Beamsplitters

Elliptical Plate Beamsplitters

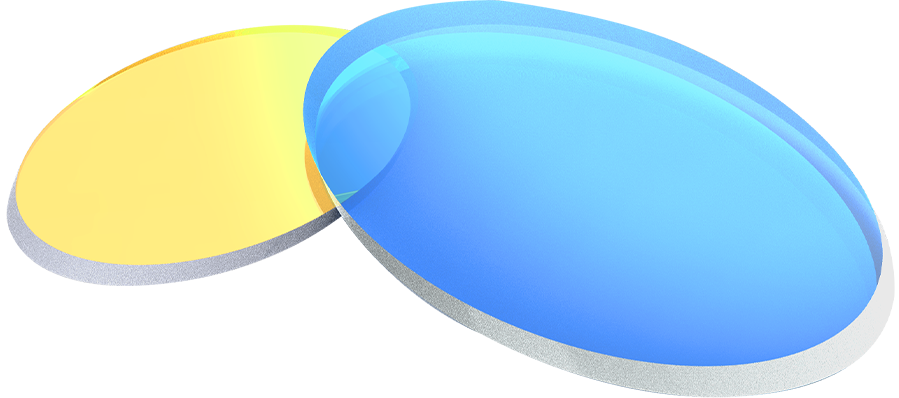

Elliptical Beamsplitters can be conveniently and accurately installed in various rounded lens tube, which can save space and produce a round spot. Image Optics provide elliptical plate Beamsplitters with front surface coatings and beamsplitting and rear side coatings with various types of AR coatings to suit your application.

Material H-K9L Optical Glass

Transmission Wavefront Error ＜λ/ 4 @ 633 nm

Parallelism ＜30 arcsec

Surface Quality 40-20

Clear Aperture 90%

Minor Axis Tolerance +0.0/-0.1mm

Thickness 1mm±0.1mm

Bevel Protective Bevel 0.2~0.5mmX45°

Angle of Incident (AOI) 45° Design

Coating S1 Beam Splitting Coating： R/T 50：50±10% (AVG of Designed Bandwidth) S2 AR Coating： Ravg＜1% (AVG of Designed Bandwidth)

Products Spectral curve Related Download

Minor Axis

Select..  

R/T

Select..  

 50R/50T

Coating

Select..  

Material

Select..  

 H-K9L

Clear

Pro No.

Parameter

Minor Axis

R/T

Coating

Material

Delivery time

Compare

Price

Purchase

347500

Parameter list

12.5mm

50R/50T

S2-Coated-ARAR-@350~700nm

H-K9L

In stock



$42.50



347501

Parameter list

25.0mm

50R/50T

S2-Coated-ARAR-@350~700nm

H-K9L

In stock



$59.17



347502

Parameter list

50.0mm

50R/50T

S2-Coated-ARAR-@350~700nm

H-K9L

In stock



$104.17



347503

Parameter list

12.5mm

50R/50T

S2-Coated-ARAR-@700-1100nm

H-K9L

In stock



$42.50



347504

Parameter list

25.0mm

50R/50T

S2-Coated-ARAR-@700-1100nm

H-K9L

In stock



$59.17



347505

Parameter list

50.0mm

50R/50T

S2-Coated-ARAR-@700-1100nm

H-K9L

In stock



$104.17



347506

Parameter list

12.5mm

50R/50T

S2-Coated-ARAR-@900-1700nm

H-K9L

In stock



$42.50



347507

Parameter list

25.0mm

50R/50T

S2-Coated-ARAR-@900-1700nm

H-K9L

In stock



$62.50



347508

Parameter list

50.0mm

50R/50T

S2-Coated-ARAR-@900-1700nm

H-K9L

In stock



$108.33



Curve download

Broadband Plate Beamsplitters

Economic plate Beamsplitters

UV Wedge Plate Beamsplitter
