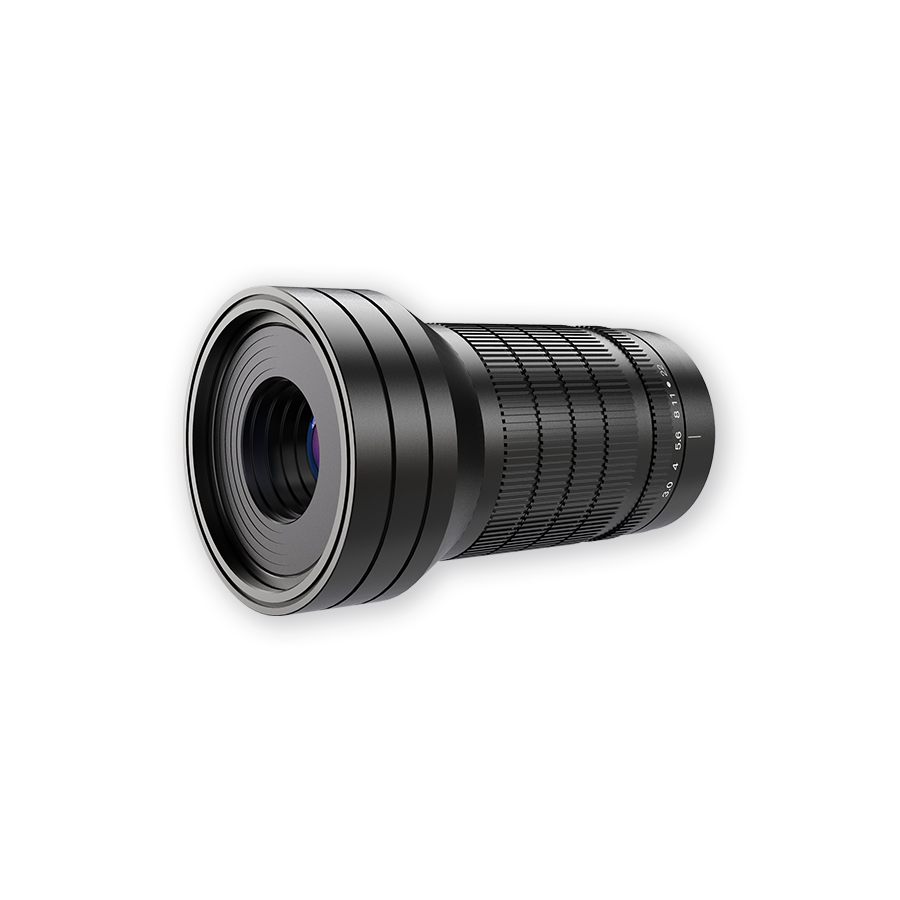

F=50mm Max. sensor size=21mm UV Lens

Price Option

Product No. 680400

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Max. sensor size 21mm

Focal Length 50mm

Mount C-Mount

F/# F3.0-22

Working Distance 0.17m~∞

FOV (Diagonal x H xV) 21.5°×17.5°×13.1°

Object Size (at the minimum focus distance) 54.4×43.2×32.6㎜

BFL（in air） 13.5㎜

Distortion ≦-1.0%@y=9.3㎜

Filter thread M52x0.75

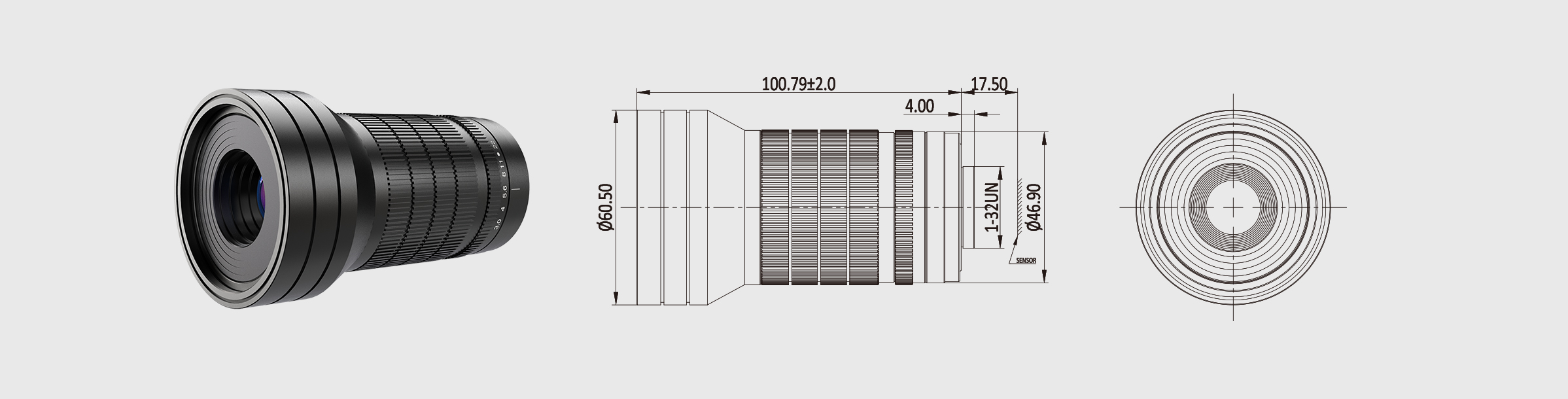

Lens Size(W x L) 60.5×100.79mm

Weight /

Work Temperature -20℃～+60℃

Work Wavelength 200-1100nm

Distance of entrance pupil 24.55

Diameter of entrance pupil 18.12

Distance of exit pupil -67.69

Diameter of exit pupil 17.81

Total optical length 118.29mm

No.	Item		Specifications
1	Max. sensor size		21mm
2	Focal Length		50mm
3	Mount		C-Mount
4	F/#		F3.0-F22
5	Working Distance		0.17m~∞
6	FOV (Diagonal x H xV)	1/2"	21.5°×17.5°×13.1°
		1''	17.6°×14.2°×10.6°
		2/3"	12.2°×9.7°×7.3°
7	Object Size (at the minimum focus distance)	1/2"	54.4×43.2×32.6mm
		1''	45.0×36.3×27.2mm
		2/3"	31.2×24.9×18.6mm
8	BFL(in air)		13.5mm
9	Operation	Focus	手动
		Aperture	固定
10	Distortion	1/2"	≦-1.0%@y=9.3mm
		1''	≦-0.8%@y=8.0mm
		2/3"	≦-0.5%@y=5.5mm
11	Filter thread		M52x0.75
12	Lens Size(W x L)		60.5×100.79mm
13	Weight		/
14	Work Temperature		-20℃～+60℃
15	Work Wavelength		200-1100nm
16	Distance of entrance pupil		24.55mm
17	Diameter of entrance pupil		18.12mm
18	Distance of exit pupil		-67.69mm
19	Diameter of exit pupil		17.81mm
20	Total optical length		118.29mm

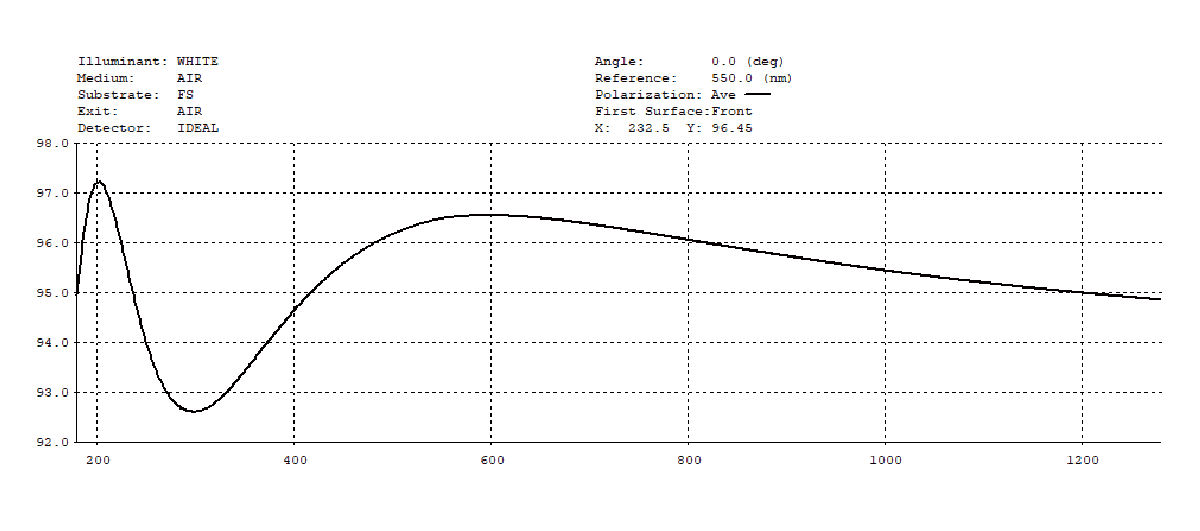

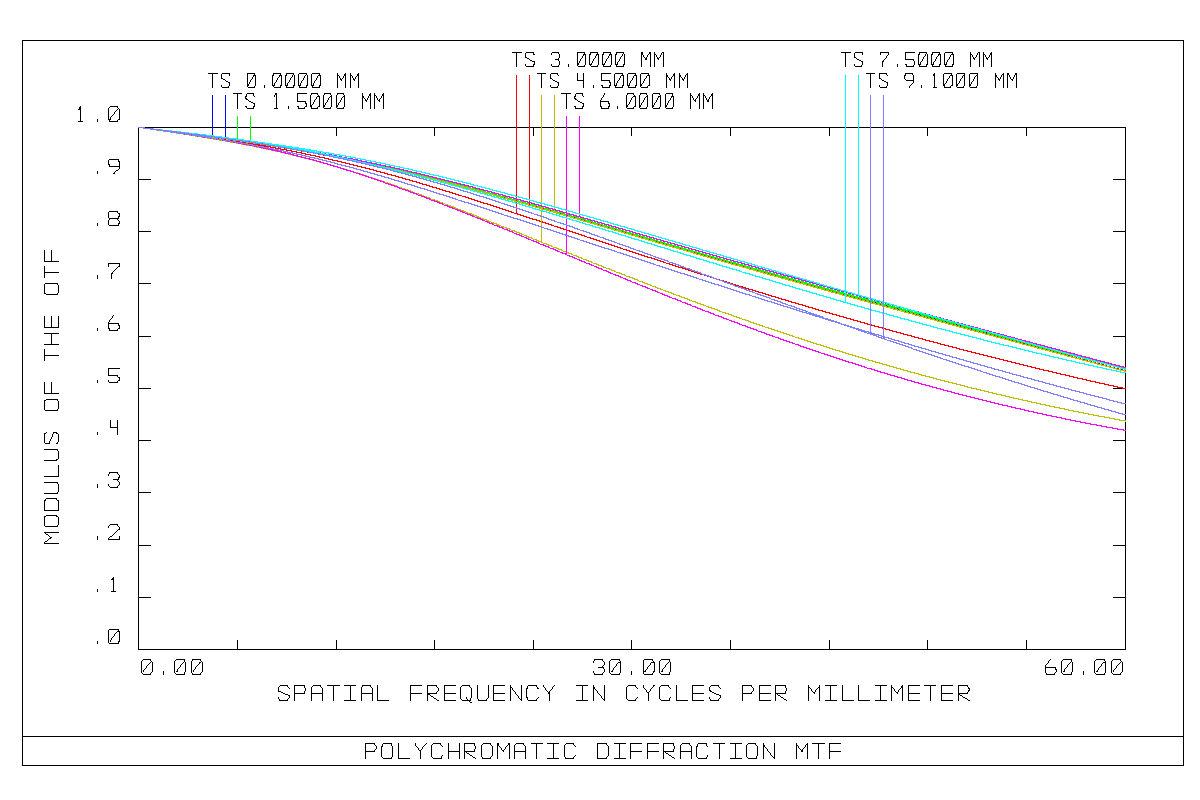

Curve Download

8mm 2/3" 5M Fixed Focal Length Lens

12mm 2/3" 5M Fixed Focal Length Lens

16mm 2/3" 5M Fixed Focal Length Lens

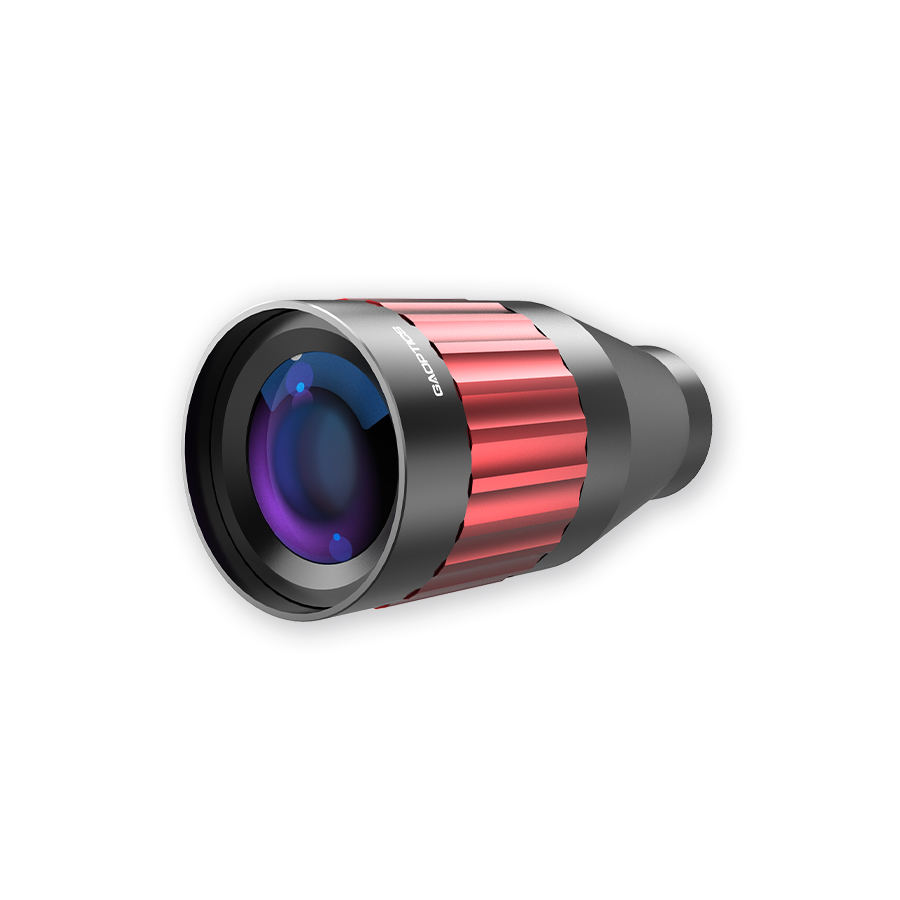

F=116mm Max. sensor size=18mm UV Lens

Ultraviolet lens is a fixed-focus lens whose working band covers the ultraviolet band, GU Optics’s UV lens is widely used in the field of ultraviolet imaging due to its stable image quality and convenient use.
