8mm 2/3" 5M Fixed Focal Length Lens

Price Option

Product No. 600007

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 8mm

F/# 1.6

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.1m～∞

Filter Thread M40.5x0.5mm

FOV 66.8°×55.8°×43.3°

Distrotion -0.73%@y=5.5mm

Weight 170g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		8mm
3	Mount		C-Mount
4	F/#		F1.6-F22
5	Working Distance		0.1m～∞
6	FOV(Diagonal x H xV)	2/3"	66.8°×55.8°×43.3°
		1/2"	51.4°×42.1°×32.1°
		1/3"	39.6°×32.1°×24.3°
7	Object Size (at the minimum focus distance)	2/3"	159.0×126.0×93.6mm
		1/2"	114.1×90.7×67.6mm
		1/3"	84.8×67.6×50.5mm
8	BFL（in air）		12.44mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	-0.73%@y=5.5mm
		1/2"	-1.00%@y=4.0mm
		1/3"	-0.77%@y=3.0mm
11	Filter thread		M40.5×0.5mm

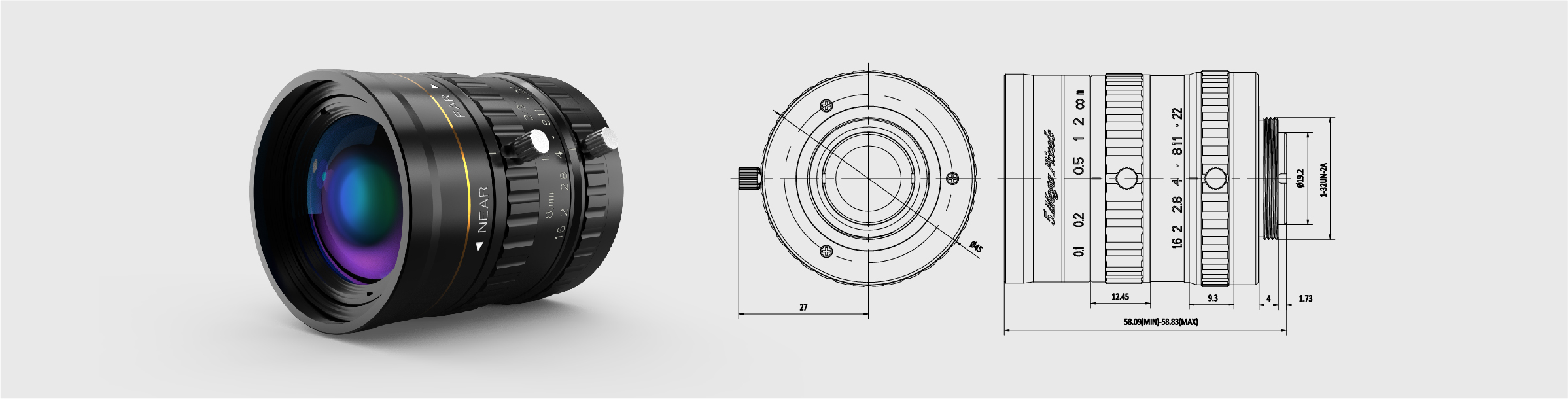

12	Lens Size(W x L)		49.5×58.83mm
13	Weight		170g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		17.61mm
16	Diameter of entrance pupil		5.25mm
17	Distance of exit pupil		-141.59mm
18	Diameter of exit pupil		88.60mm
19	Total optical length		67.29mm
20	Magnification		-0.0719

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
100mm	-0.07185	1.0191	1.0661
150mm	-0.05029	2.3921	2.5522
200mm	-0.03869	6.3657	6.9842
250mm	-0.03144	12.9813	16.0255
300mm	-0.02648	26.2665	14.5533
350mm	-0.02287	17.9241	21.9720
400mm	-0.02013	23.2414	29.2971
500mm	-0.01623	35.2035	50.5580
750mm	-0.01094	70.7951	81.7762
1000mm	-0.00825	160.0044	160.9750

Curve Download

12mm 2/3" 5M Fixed Focal Length Lens

16mm 2/3" 5M Fixed Focal Length Lens

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
