35mm 2/3" 5M Fixed Focal Length Lens

Price Option

Product No. 600011

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

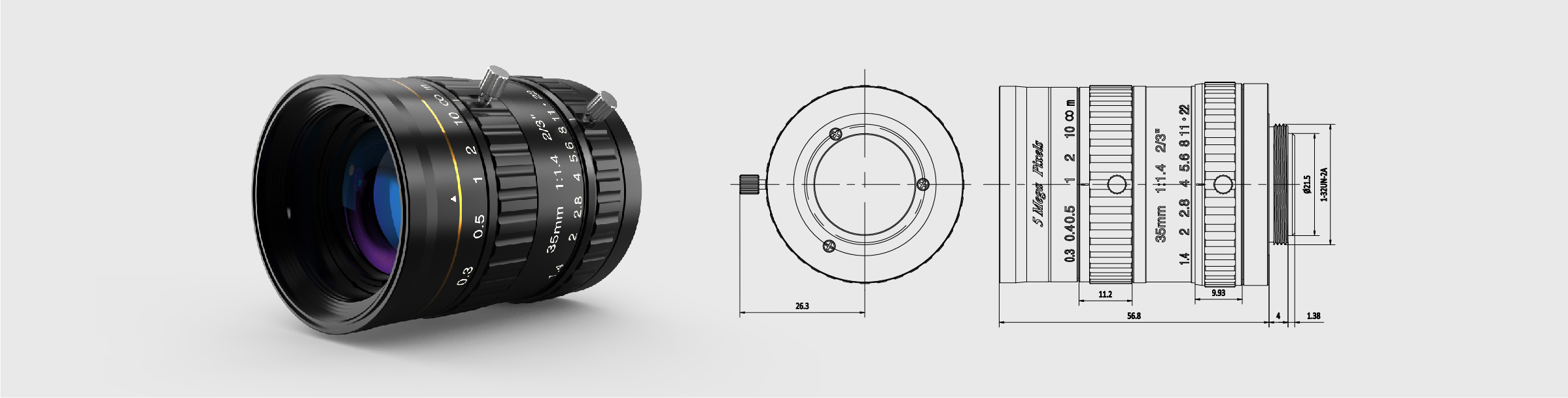

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 35mm

F/# 1.4

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.3m～∞

Filter Thread M37.5×0.5mm

FOV 17.9°×14.3°×10.8°

Distrotion -0.06%@y=5.5mm

Weight 156g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		35mm
3	Mount		C-Mount
4	F/#		F1.4-F22
5	Working Distance		0.3m～∞
6	FOV(Diagonal x H xV)	2/3"	17.9°×14.3°×10.8°
		1/2"	13.0°×10.5°×7.8°
		1/3"	9.8°×7.8°×5.9°
7	Object Size (at the minimum focus distance)	2/3"	90.1×72.1×54.1mm
		1/2"	65.6×52.5×39.4mm
		1/3"	49.2×39.4×29.5mm
8	BFL（in air）		12.82mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	-0.06%@y=5.5mm
		1/2"	-0.07%@y=4.0mm
		1/3"	-0.05%@y=3.0mm
11	Filter thread		M37.5×0.5mm
12	Lens Size(W x L)		47.95×62.18mm
13	Weight		156g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		32.28mm
16	Diameter of entrance pupil		23.50mm
17	Distance of exit pupil		-40.40mm
18	Diameter of exit pupil		27.12mm
19	Total optical length		62.72mm
20	Magnification		-0.1220

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
300mm	-0.12197	0.5237	0.5255
350mm	-0.10377	0.7125	0.7155
400mm	-0.09028	0.9304	0.9348
450mm	-0.07992	1.1772	1.1834
500mm	-0.07169	1.4529	1.4614
550mm	-0.06502	1.7575	1.7688
600mm	-0.05948	2.0910	2.1056
650mm	-0.05481	2.4533	2.4719
700mm	-0.05082	2.8444	2.8677
750mm	-0.04737	3.2643	3.2930

Curve Download

16mm 2/3" 5M Fixed Focal Length Lens

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

50mm 2/3" 5M Fixed Focal Length Lens

2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
