16mm 2/3" 5M Fixed Focal Length Lens
Share
WeChat
Scan and add Wechat

16mm 2/3" 5M Fixed Focal Length Lens

Price Option
 € 148.34 (EUR) ￡126.36 (GBP) ￥870.00 (RMB)

Product No. 600009

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 16mm
F/# 1.6
Max. sensor size 2/3"
Mount C
Resolution 5MP
Working Distance 0.2m～∞
Filter Thread M37.5x0.5mm
FOV 38.0°×30.8°×23.4°
Distrotion 0.07%@y=5.5mm
Weight 181g
  No. Item Specifications
1 Max. sensor size 2/3"(11mm）
2 Focal Length 16mm
3 Mount C-Mount
4 F/# F1.6-F22
5 Working Distance 0.2m～∞
6 FOV(Diagonal x H xV) 2/3" 38.0°×30.8°×23.4°
1/2" 28.1°×22.7°×17.1°
1/3" 21.3°×17.1°×12.9°
7 Object Size
(at the minimum focus distance)		 2/3" 145.6×116.5×87.3mm
1/2" 105.9×84.6×63.5mm
1/3" 79.4×63.5×47.6mm
8 BFL（in air） 12.36mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 2/3" 0.07%@y=5.5mm
1/2" -0.06%@y=4.0mm
1/3" -0.06%@y=3.0mm
11 Filter thread M37.5×0.5mm

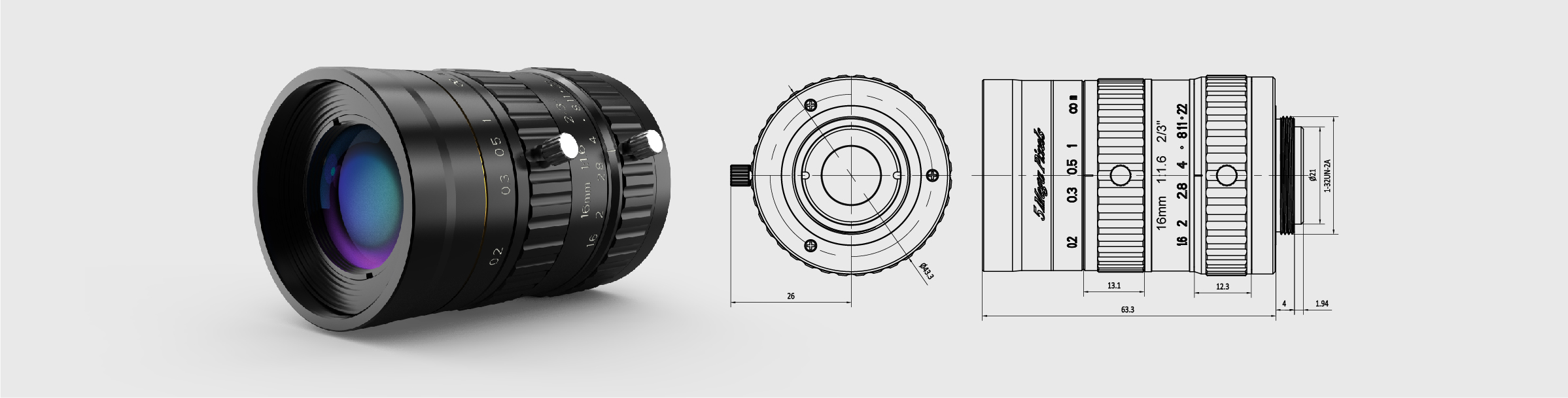

12 Lens Size(W x L) 47.65×69.24mm
13 Weight 181g
14 Work Temperature -10℃～+50℃
15 Distance of entrance pupil 20.76mm
16 Diameter of entrance pupil 9.98mm
17 Distance of exit pupil -138.99mm
18 Diameter of exit pupil 86.80mm
19 Total optical length 74.92mm
20 Magnification -0.0757

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
200mm -0.07572 1.6921 1.7212
250mm -0.06118 2.6382 2.6953
300mm -0.05131 3.7911 4.3891
350mm -0.04421 5.1493 5.3051
400mm -0.03882 6.0122 6.9450
450mm -0.03462 8.4772 8.8082
500mm -0.03123 10.4431 10.8982
550mm -0.02845 12.6141 13.2163
600mm -0.02612 14.9755 15.7624
650mm -0.02415 17.5391 18.5391
Curve Download

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

50mm 2/3" 5M Fixed Focal Length Lens

75mm 2/3" 5M Fixed Focal Length Lens
2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
