50mm 2/3" 5M Fixed Focal Length Lens

Price Option

Product No. 600012

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 50mm

F/# 1.8

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.4m～∞

Filter Thread M37.5x0.5mm

FOV 12.6°×10.1°×7.6°

Distrotion 0.03%@y=5.5mm

Weight 173g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		50mm
3	Mount		C-Mount
4	F/#		F1.8-F22
5	Working Distance		0.4m～∞
6	FOV(Diagonal x H xV)	2/3"	12.6°×10.1°×7.6°
		1/2"	9.1°×7.3°×5.5°
		1/3"	6.9°×5.5°×4.1°
7	Object Size (at the minimum focus distance)	2/3"	83.8×66.9×50.2mm
		1/2"	60.9×48.7×36.7mm
		1/3"	45.7×36.5×27.4mm
8	BFL（in air）		13.63mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	0.03%@y=5.5mm
		1/2"	0.02%@y=4.0mm
		1/3"	0.01%@y=3.0mm
11	Filter thread		M37.5×0.5mm

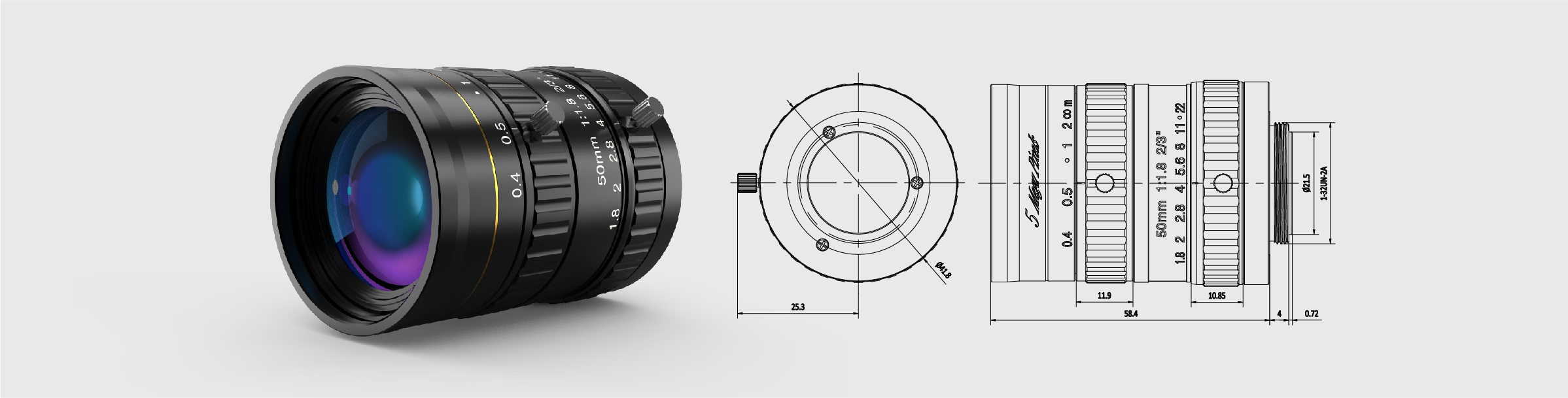

12	Lens Size(W x L)		46.2×63.12mm
13	Weight		173g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		46.00mm
16	Diameter of entrance pupil		27.91mm
17	Distance of exit pupil		-43.20mm
18	Diameter of exit pupil		24.12mm
19	Total optical length		65.53mm
20	Magnification		-0.1315

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
400mm	-0.13152	0.5839	0.6856
450mm	-0.11620	1.2389	1.2413
500mm	-0.10409	1.4121	1.4154
600mm	-0.08620	1.7129	1.7187
750mm	-0.06846	2.0503	2.0615
1000mm	-0.05099	3.6416	3.6683
1500mm	-0.03376	8.1787	8.2689
2000mm	-0.02523	14.5148	14.7274
3000mm	-0.01677	32.5376	33.2595
5000mm	-0.01003	89.7337	93.0741

Curve Download

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

50mm 2/3" 5M Fixed Focal Length Lens

75mm 2/3" 5M Fixed Focal Length Lens

2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
