25mm 2/3" 5M Fixed Focal Length Lens

Price Option

Product No. 600010

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

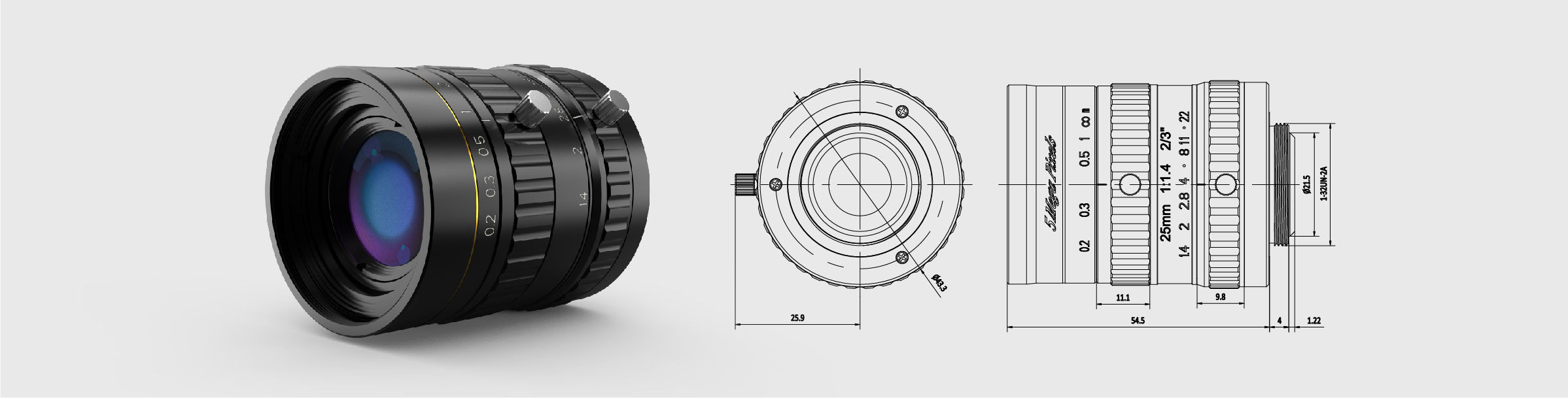

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 25mm

F/# 1.4

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.2m～∞

Filter Thread M37.5×0.5mm

FOV 24.8°×20.0°×15.0°

Distrotion -0.19%@y=5.5mm

Weight 148g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		25mm
3	Mount		C-Mount
4	F/#		F1.4-F22
5	Working Distance		0.2m～∞
6	FOV(Diagonal x H xV)	2/3"	24.8°×20.0°×15.0°
		1/2"	18.2°×14.6°×10.9°
		1/3"	13.7°×10.9°×8.2°
7	Object Size (at the minimum focus distance)	2/3"	86.1×69.0×51.7mm
		1/2"	62.7×50.2×37.6mm
		1/3"	47.0×37.6×28.2mm
8	BFL（in air）		12.78mm
9	Operation	Focus	Manuala
		Aperture	Manual
10	Distortion	2/3"	-0.19%@y=5.5mm
		1/2"	-0.17%@y=4.0mm
		1/3"	-0.12%@y=3.0mm
11	Filter thread		M37.5×0.5mm
12	Lens Size(W x L)		47.55×59.72mm
13	Weight		148g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		38.08mm
16	Diameter of entrance pupil		17.89mm
17	Distance of exit pupil		-18.64mm
18	Diameter of exit pupil		13.30mm
19	Total optical length		55.54mm
20	Magnification		-0.1265

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
200mm	-0.12646	0.4536	0.4557
250mm	-0.10079	1.2084	1.2124
300mm	-0.08381	2.0195	2.0265
350mm	-0.07176	2.8869	3.1979
400mm	-0.06275	3.8104	3.8269
450mm	-0.05574	4.2901	4.3135
500mm	-0.05015	4.8255	4.8578
550mm	-0.04559	5.4171	5.4621
750mm	-0.03342	9.0642	9.1203
1000mm	-0.02505	24.7671	24.8381

Curve Download

12mm 2/3" 5M Fixed Focal Length Lens

16mm 2/3" 5M Fixed Focal Length Lens

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
