12mm 2/3" 5M Fixed Focal Length Lens
Share
WeChat
Scan and add Wechat

12mm 2/3" 5M Fixed Focal Length Lens

Price Option
 € 148.34 (EUR) ￡126.36 (GBP) ￥870.00 (RMB)

Product No. 600008

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 12mm
F/# 1.6
Max. sensor size 2/3"
Mount C
Resolution 5MP
Working Distance 0.1m～∞
Filter Thread M37.5x0.5mm
FOV 48.6°×39.8°×30.4°
Distrotion -0.35%@y=5.5mm
Weight 178g
  No. Item Specifications
1 Max. sensor size 2/3"(11mm）
2 Focal Length 12mm
3 Mount C-Mount
4 F/# F1.6-F22
5 Working Distance 0.1m～∞
6 FOV(Diagonal x H xV) 2/3" 48.6°×39.8°×30.4°
1/2" 36.4°×29.5°×22.3°
1/3" 27.7°×22.3°×16.8°
7 Object Size
(at the minimum focus distance)		 2/3" 104.0×82.9×61.9mm
1/2" 75.2×60.6×44.9mm
1/3" 56.2×44.9×33.6mm
8 BFL（in air） 12.42mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 2/3" -0.35%@y=5.5mm
1/2" -0.53%@y=4.0mm
1/3" -0.38%@y=3.0mm
11 Filter thread M37.5×0.5mm

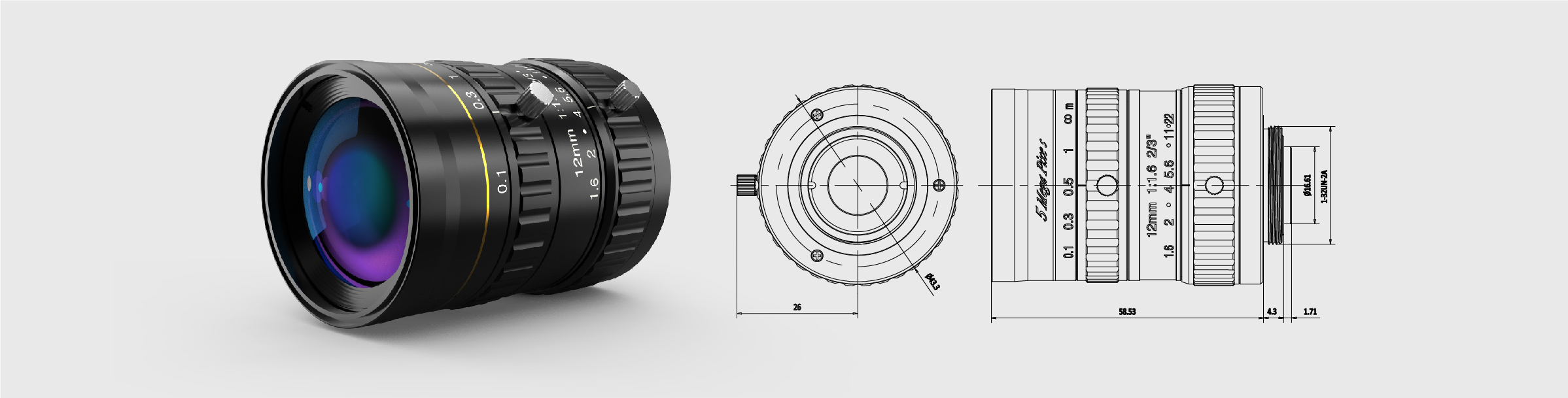

12 Lens Size(W x L) 47.65×64.54mm
13 Weight 178g
14 Work Temperature -10℃～+50℃
15 Distance of entrance pupil 23.49mm
16 Diameter of entrance pupil 7.5mm
17 Distance of exit pupil -71.71mm
18 Diameter of exit pupil 44.04mm
19 Total optical length 74.77mm
20 Magnification -0.107

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
100mm -0.10733 0.5371 0.8481
150mm -0.07435 1.6522 1.6891
200mm -0.05692 2.9261 3.0142
250mm -0.04613 4.5552 4.7271
300mm -0.03879 6.5351 6.8331
350mm -0.03347 8.8636 9.3364
400mm -0.02943 11.5351 12.2420
450mm -0.02626 14.5462 15.5514
500mm -0.02371 17.8944 19.2730
550mm -0.02161 21.5741 23.4112
Curve Download

16mm 2/3" 5M Fixed Focal Length Lens

25mm 2/3" 5M Fixed Focal Length Lens

35mm 2/3" 5M Fixed Focal Length Lens

50mm 2/3" 5M Fixed Focal Length Lens

2/3" 5M FA lens has excellent optical performance. Features with Large aperture design, low distortion, high uniformity and the whole imaging area has a high resolution. Focal lengths included 8mm, 12mm, 16mm, 25mm, 50mm, and 75mm, it meet the application of users for different FOV and working distance.

Product characteristics
1. 5 Mega pixels, 2/3" optical format，150lp/mm@±5.5mm;
2. Focal length covering 8-75 mm;
3. Large aperture design, high transmission;
4. Special designed for high resolution cameras, central and edge resolution up to 3.45 um;
5. Powerful optical performance, Capable of complex tasks.
