F=116mm Max. sensor size=18mm UV Lens

Price Option

Product No. 680300

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Max. sensor size 18mm

Focal Length 116mm

Mount C-Mount

F/# F3.2（Fixed Aperture）

Working Distance 5m~∞

FOV (Diagonal x H xV) 7.85°×6.30°×4.73°

Object Size (at the minimum focus distance) 689×551×413㎜

BFL（in air） 46㎜

Distortion 0.44%@y=8㎜

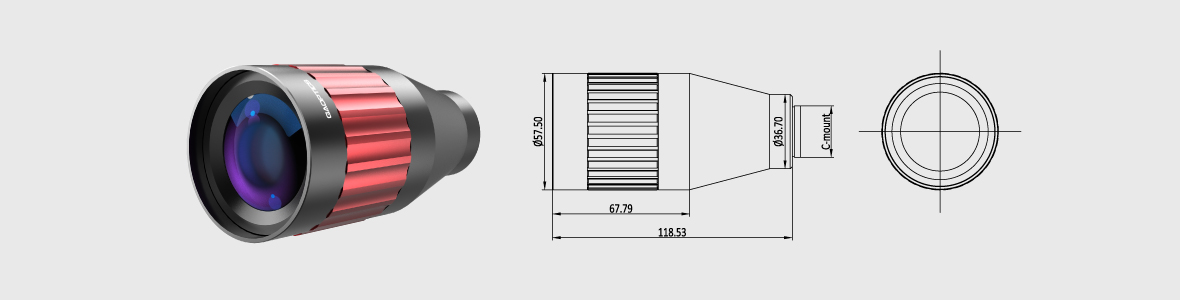

Lens Size(W x L) 57.5×122.6mm

Weight 450g

Work Temperature -10℃～+50℃

Work Wavelength 250-280nm

Distance of entrance pupil 0mm

Diameter of entrance pupil 38.9mm

Distance of exit pupil -107.01mm

Diameter of exit pupil 35.69mm

Total optical length 133.5mm

No.	Item		Specifications
1	Max. sensor size		18mm
2	Focal Length		116mm
3	Mount		C-Mount
4	F/#		F3.2（Fixed）
5	Working Distance		5m~∞
6	FOV (Diagonal x H xV)	1"	7.85°×6.30°×4.73°
		2/3''	5.27°×4.19°× 3.16°
		1/2"	3.95°×3.16°× 2.37°
7	Object Size (at the minimum focus distance)	1"	689×551×413㎜
		2/3''	461×366×275㎜
		1/2"	344×276×207㎜
8	BFL(in air)		46㎜
9	Operation	Focus	Manual
		Aperture	Fixed
10	Distortion	1"	0.44%@y=8㎜
		2/3''	-0.20%@y=5.3㎜
		1/2"	-0.13%@y=4㎜
11	Filter thread
12	Lens Size(W x L)		57.5×122.6mm
13	Weight		450g
14	Work Temperature		-10℃～+50℃
15	Work Wavelength		250-280nm
16	Distance of entrance pupil		0mm
17	Diameter of entrance pupil		38.9mm
18	Distance of exit pupil		-107.01mm
19	Diameter of exit pupil		35.69mm
20	Total optical length		133.5mm

Curve Download

8mm 2/3" VIS-NIR Fixed Focal Length Lens

12mm 2/3" VIS-NIR Fixed Focal Length Lens

16mm 2/3" VIS-NIR Fixed Focal Length Lens

25mm 2/3" VIS-NIR Fixed Focal Length Lens

Because ozone in the stratosphere has a strong absorption effect on ultraviolet light with the band of 200nm-300nm, there is almost no sunlight in this band in the near-Earth atmosphere, so this band is called the “solar blind zone” of solar radiation. GU Optics’s Solar-Blind UV lens has a working band of 240-280nm, and with a focal length of 116mm, it is commonly used in electronics, optics, medical and precision industries.
