16mm 2/3" VIS-NIR Fixed Focal Length Lens
Share
WeChat
Scan and add Wechat

16mm 2/3" VIS-NIR Fixed Focal Length Lens

Price Option
 € 129.58 (EUR) ￡106.44 (GBP) ￥760.00 (RMB)

Product No. 601002

Stock Please Consult

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 16mm
F/# 1.8
Max. sensor size 2/3"
Mount C
Working Distance 0.2m～∞
Filter Thread M25.5x0.7mm
FOV 38°×29.6°×25.1°
TV Distrotion 0.15%
Weight 50g
  No. Item Specifications
1 Max. sensor size 2/3"(11mm)
2 Focal Length 16mm
3 Mount C-Mount
4 F/# F1.8-F16
5 Working Distance 0.2m~∞
6 FOV(Diagonal x H xV) 2/3" 38°×29.6°×25.1°
7 BFL（in air） 11.2mm
8 Operation Focus Manual
Aperture Manual
9 TV Distortion 2/3" 0.15%
10 Filter thread M25.5×0.5mm
11 Lens Size D29.5×39.7mm
12 Weight 50g
13 Work Temperature -10℃～+50℃
14 Magnification -0.0764

Working Distance Magnification Ring Thicknes FOV（mm）
2/3"
(8.45mm×7.07mm)		 1/1.8"
(7.38mm×4.92mm)		 1/2"
(6.22mm×4.67mm)
H V H V H V
25mm -0.4657 7mm 18.14  15.18  15.85  10.56  13.36  10.03
50mm -0.2698 5mm 31.32  26.20  27.35  18.24  23.05  17.31
75mm -0.1896 5mm 44.57  37.29  38.92  25.95  32.81  24.63
100mm -0.1463 2mm 57.76  48.33  50.44  33.63  42.52  31.92
150mm -0.1003 1mm 84.25  70.49  73.58  49.05  62.01  46.56
200mm -0.0764   110.60  92.54  96.60  64.40  81.41  61.13
250mm -0.0617   136.95  114.59  119.61  79.74  100.81  75.69
300mm -0.0517   163.44  136.75  142.75  95.16  120.31  90.33
350mm -0.0445   189.89  158.88  165.84  110.56  139.78  104.94
400mm -0.0391   216.11  180.82  188.75  125.83  159.08  119.44
450mm -0.0348   242.82  203.16  212.07  141.38  178.74  134.20
500mm -0.0314   269.11  225.16  235.03  156.69  198.09  148.73
550mm -0.0286   295.45  247.20  258.04  172.03  217.48  163.29
600mm -0.0262   322.52  269.85  281.68  187.79  237.40  178.24
700mm -0.0225   375.56  314.22  328.00  218.67  276.44  207.56
800mm -0.0198   426.77  357.07  372.73  248.48  314.14  235.86
900mm -0.0176   480.11  401.70  419.32  279.55  353.41  265.34
1000mm -0.0158   534.81  447.47  467.09  311.39  393.67  295.57

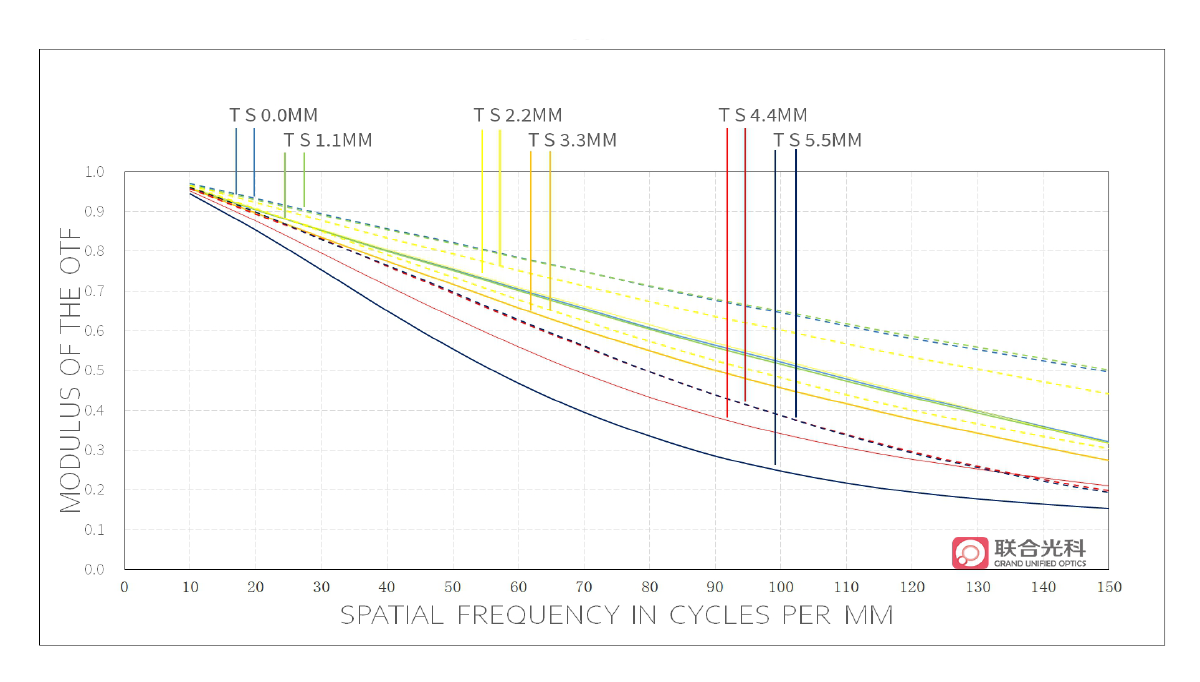

Curve Download

12mm 2/3" VIS-NIR Fixed Focal Length Lens

16mm 2/3" VIS-NIR Fixed Focal Length Lens

25mm 2/3" VIS-NIR Fixed Focal Length Lens

35mm 2/3" VIS-NIR Fixed Focal Length Lens
GU Optics pushes out a new series lens, VIS-NIR FA Lens, its working wavelength covers visible light and near-infrared light. And its focal length covers 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm. With high resolution design and compact structure, this series of lenses can be widely used in industrial automation, machine vision, PCB inspection, biology, medicine, environmental protection and other fields.
