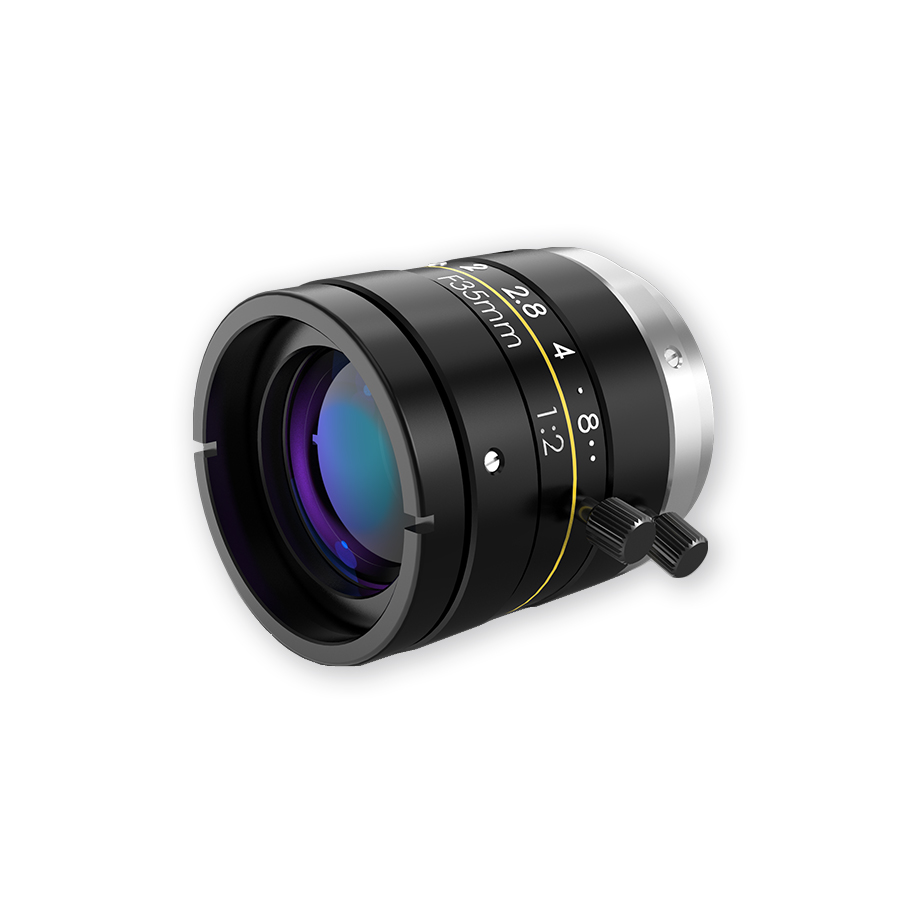

35mm 2/3" VIS-NIR Fixed Focal Length Lens





  Likes

Share

WeChat

Scan and add Wechat

35mm 2/3" VIS-NIR Fixed Focal Length Lens

Price Option

Product No. 601004

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

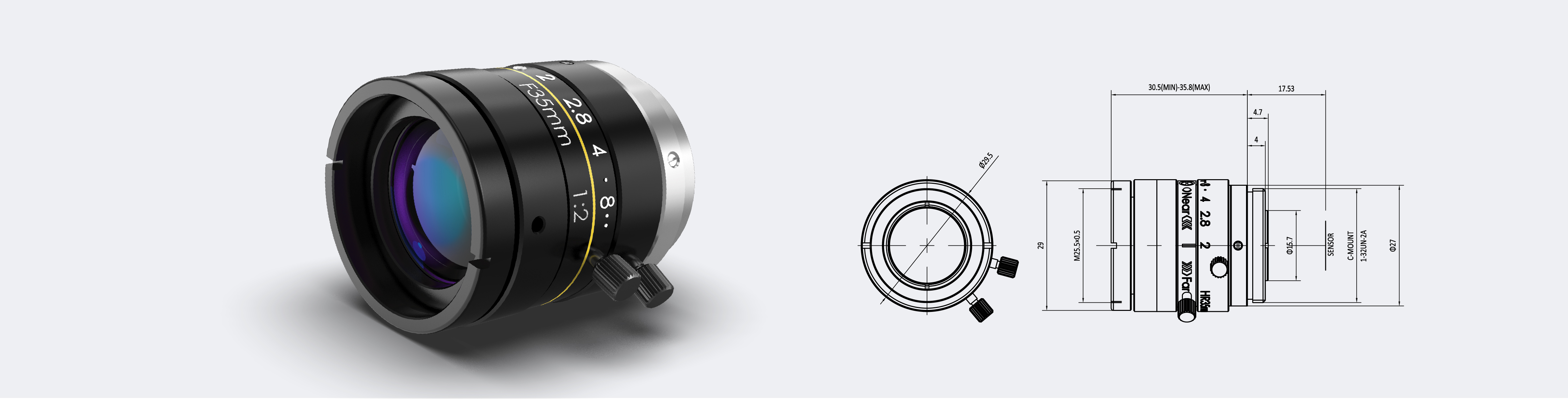

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 35mm

F/# 2

Max. sensor size 2/3"

Mount C

Working Distance 0.3m～∞

Filter Thread M25.5x0.9mm

FOV 17.8°×13.8°×11.4°

TV Distrotion 0.12%

Weight 40g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm)
2	Focal Length		35mm
3	Mount		C-Mount
4	F/#		F2-F16
5	Working Distance		0.25m~∞
6	FOV(Diagonal x H xV)	2/3"	17.8°×13.8°×11.4°
7	BFL（in air）		13.8mm
8	Operation	Focus	Manual
		Aperture	Manual
9	TV Distortion	2/3"	0.12%
10	Filter thread		M25.5×0.5mm
11	Lens Size		D29.5×40.5mm
12	Weight		40g
13	Work Temperature		-10℃～+50℃
14	Magnification		-0.1525

Working Distance	Magnification	Ring Thicknes	FOV（mm）
			2/3" (8.45mm×7.07mm)		1/1.8" (7.38mm×4.92mm)		1/2" (6.22mm×4.67mm)
			H	V	H	V	H	V
25mm	-7.717	270mm	1.09	0.92	0.96	0.64	0.81	0.61
50mm	-1.185	40mm	7.13	5.97	6.23	4.15	5.25	3.94
75mm	-0.6417	22mm	13.17	11.02	11.50	7.67	9.69	7.28
100mm	-0.44	15mm	19.20	16.07	16.77	11.18	14.14	10.61
150mm	-0.2701	9mm	31.28	26.18	27.32	18.22	23.03	17.29
200mm	-0.1949	6mm	43.36	36.28	37.87	25.24	31.91	23.96
250mm	-0.1525		55.41	46.36	48.39	32.26	40.79	30.62
300mm	-0.1252		67.49	56.47	58.95	39.30	49.68	37.30
350mm	-0.1062		79.57	66.57	69.49	46.33	58.57	43.97
400mm	-0.0922		91.65	76.68	80.04	53.36	67.46	50.65
450mm	-0.0815		103.68	86.75	90.55	60.37	76.32	57.30
500mm	-0.073		115.75	96.85	101.10	67.40	85.21	63.97
550mm	-0.0661		127.84	106.96	111.65	74.43	94.10	70.65
600mm	-0.0603		140.13	117.25	122.39	81.59	103.15	77.45
700mm	-0.0515		164.08	137.28	143.30	95.53	120.78	90.68
800mm	-0.0449		188.20	157.46	164.37	109.58	138.53	104.01
900mm	-0.0398		212.31	177.64	185.43	123.62	156.28	117.34
1000mm	-0.0357		236.69	198.04	206.72	137.82	174.23	130.81

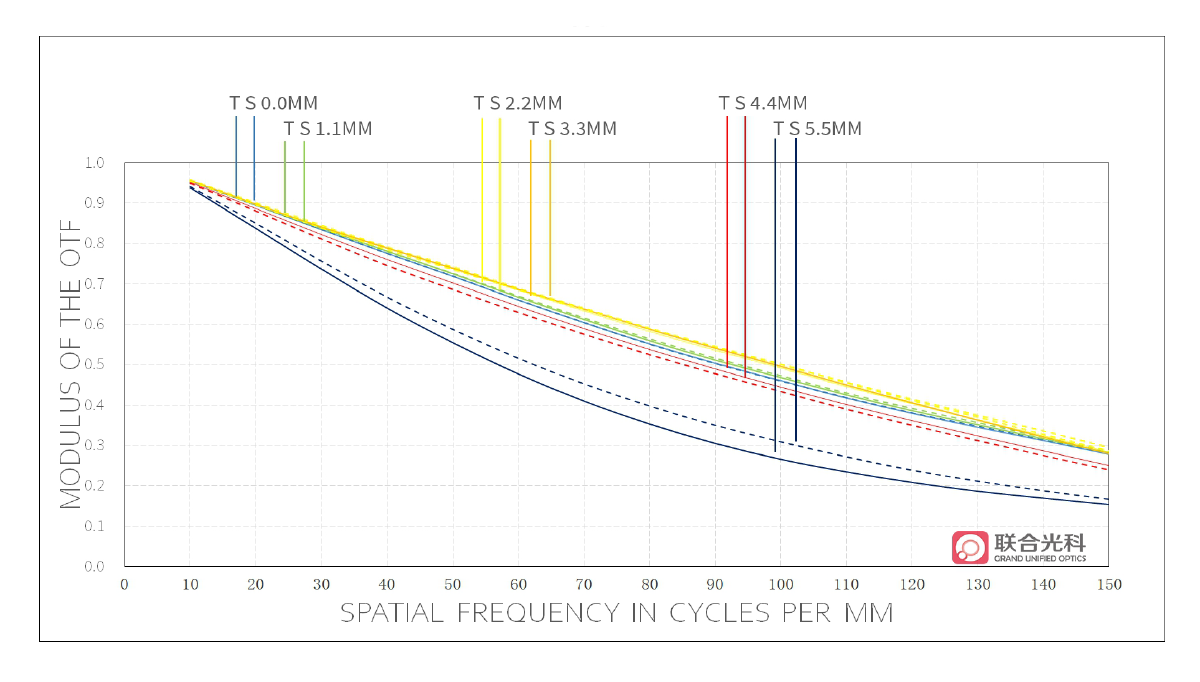

Curve Download

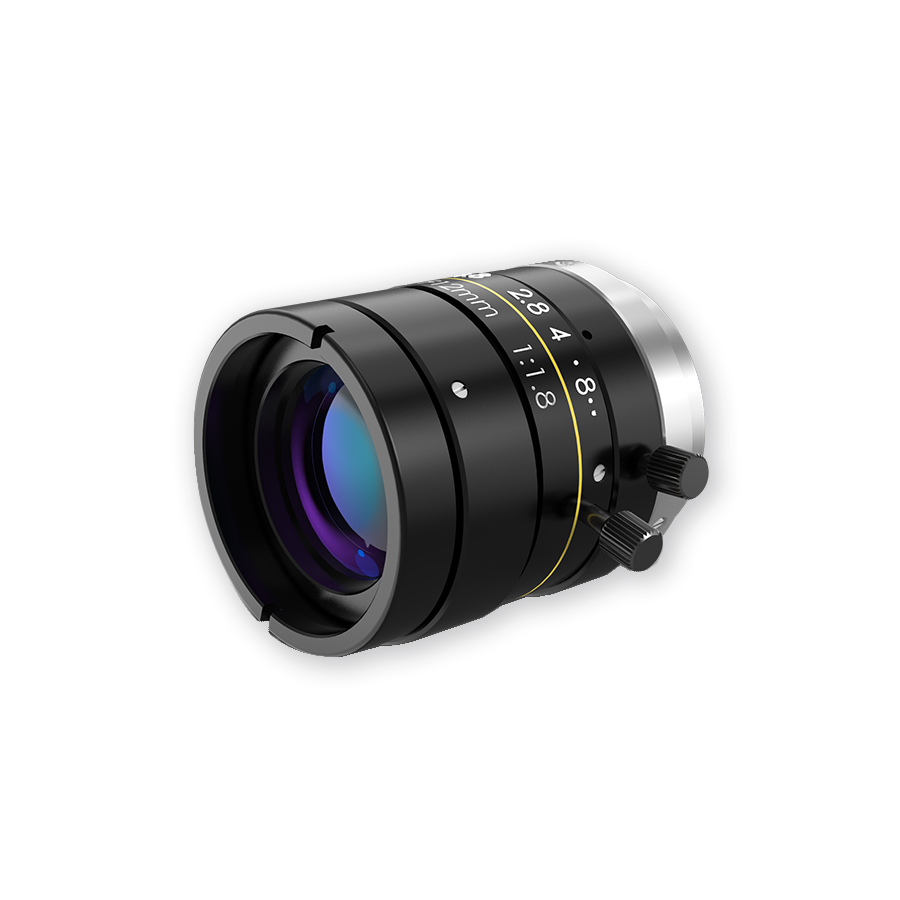

12mm 2/3" VIS-NIR Fixed Focal Length Lens

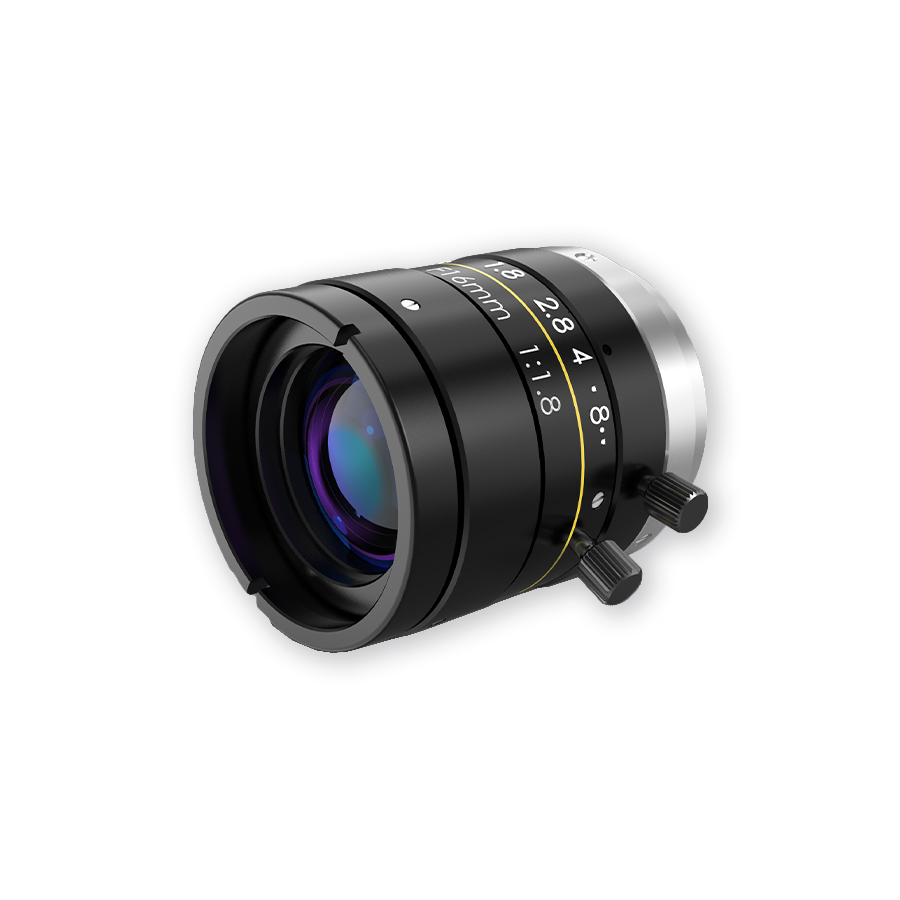

16mm 2/3" VIS-NIR Fixed Focal Length Lens

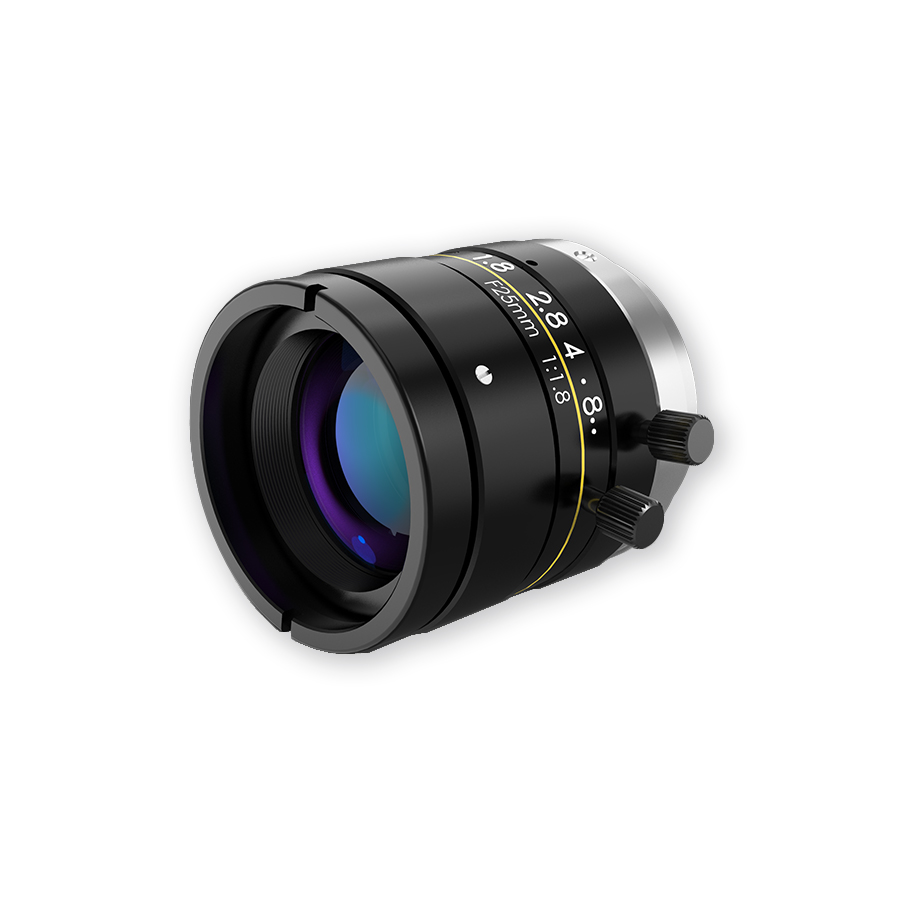

25mm 2/3" VIS-NIR Fixed Focal Length Lens

35mm 2/3" VIS-NIR Fixed Focal Length Lens

GU Optics pushes out a new series lens, VIS-NIR FA Lens, its working wavelength covers visible light and near-infrared light. And its focal length covers 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm. With high resolution design and compact structure, this series of lenses can be widely used in industrial automation, machine vision, PCB inspection, biology, medicine, environmental protection and other fields.
