8mm 2/3" 2M Fixed Focal Length Lens

Price Option

Product No. 600036

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

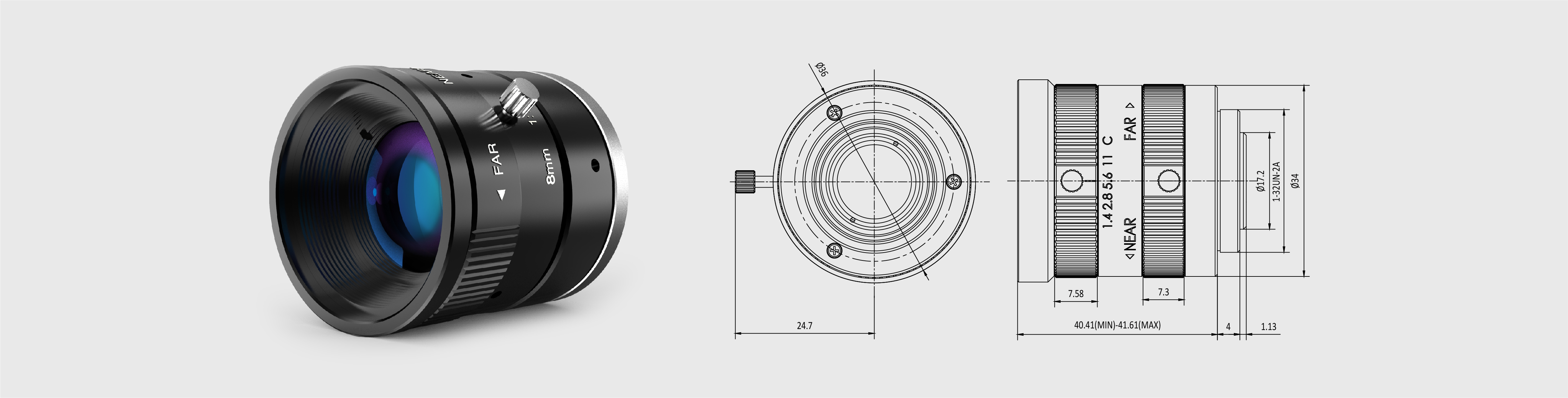

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 8mm

F# 1.4

Max. sensor size 2/3"

Mount C

Resolution 2MP

Working Distance 0.1m～∞

Filter Thread M34×0.5mm

FOV 68.63°×56.97°×43.98°

Distrotion -2.81%@y=5.5mm

Weight /

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm)
2	Focal Length		8mm
3	Mount		C-Mount
4	F/#		F1.4-C
5	Working Distance		0.1m~∞
6	FOV(Diagonal x H xV)	2/3"	68.63°×56.97°×43.98°
		1/2"	52.39°×42.74°×32.55°
		1/3"	40.24°×32.55°×24.62°
7	Object Size (at the minimum focus distance)	2/3"	160.96×123.93×91.70mm
		1/2"	111.90×88.88×66.53mm
		1/3"	83.25×66.53×49.92mm
8	BFL（in air）		11.76mm
9	Operation	Focus	Manual
		Aperture	M-Iris
10	Distortion	2/3"	-2.81%@y=5.5mm
		1/2"	-1.93%@y=4.0mm
		1/3"	-1.23%@y=3.0mm
11	Filter thread		M34×0.5mm
12	Lens Size(W x L)		42.7×46.74mm
13	Weight		/
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		13.48mm
16	Diameter of entrance pupil		5.60mm
17	Distance of exit pupil		-49.13mm
18	Diameter of exit pupil		35.19mm
19	Total optical length		50.07mm
20	Magnification		-0.0737

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
100mm	-0.07370	2.4019	2.5231
150mm	-0.05100	5.3401	5.7494
200mm	-0.03900	9.3821	10.3535
250mm	-0.03158	14.4896	16.3894
300mm	-0.02653	20.6259	23.9143
350mm	-0.02287	27.7561	32.9883
400mm	-0.02010	35.8468	43.6748
450mm	-0.01793	44.8660	56.0407
500mm	-0.01618	54.7832	70.1569

Curve Download

12mm 2/3" 2M Fixed Focal Length Lens

16mm 2/3" 2M Fixed Focal Length Lens

25mm 2/3" 2M Fixed Focal Length Lens

35mm 2/3" 2M Fixed Focal Length Lens

2/3" 2M FA lens covers all common focal lengths, suitable for a variety of simple imaging, with good performance and low cost, mainly used for large-scale industrial automation applications.
