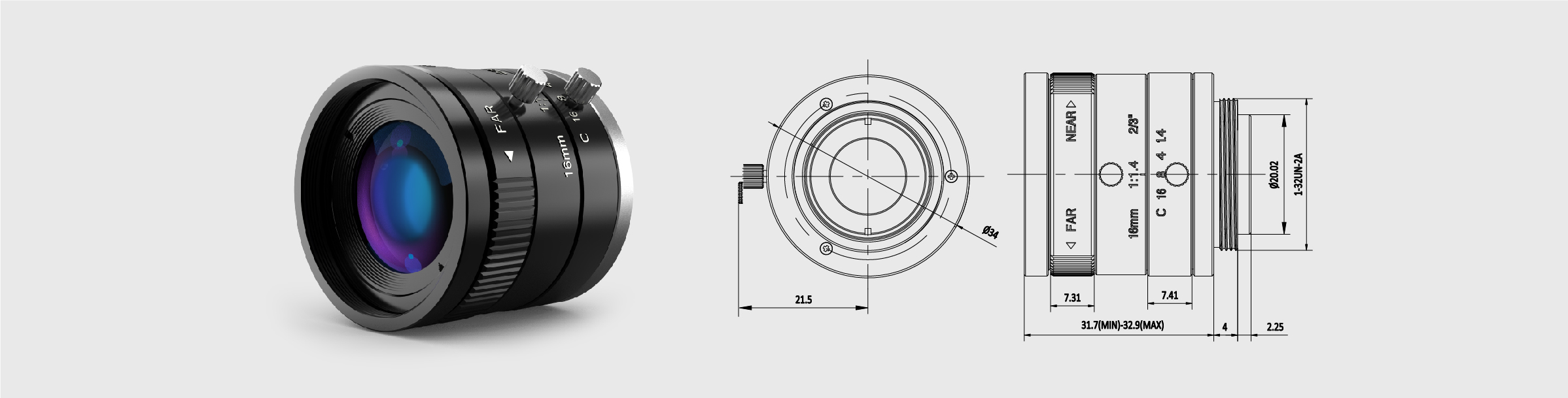

16mm 2/3" 2M Fixed Focal Length Lens

Price Option

Product No. 600001

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 16mm

F# 1.4

Max. sensor size 2/3"

Mount C

Resolution 2MP

Working Distance 0.3m～∞

Filter Thread M30.5×0.5mm

FOV 37.6°×30.4°×22.9°

Distrotion -1.00%@y=5.5mm

Weight 76g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		16mm
3	Mount		C-Mount
4	F/#		F1.4-C
5	Working Distance		0.3m～∞
6	FOV(Diagonal x H xV)	2/3"	37.6°×30.4°×22.9°
		1/2"	27.7°×22.3°×16.8°
		1/3"	20.9°×16.8°×12.6°
7	Object Size (at the minimum focus distance)	2/3"	215.2×170.9×127.5mm
		1/2"	155.1×123.6×92.4mm
		1/3"	115.8×92.4×69.2mm
8	BFL（in air）		12.67mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	-1.00%@y=5.5mm
		1/2"	-0.65%@y=4.0mm
		1/3"	-0.39%@y=3.0mm
11	Filter thread		M30.5×0.5mm
12	Lens Size(W x L)		38.5×39.15mm
13	Weight		76g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		16.09mm
16	Diameter of entrance pupil		11.43mm
17	Distance of exit pupil		-85.83mm
18	Diameter of exit pupil		60.59mm
19	Total optical length		46.10mm
20	Magnification		-0.0522

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
300mm	-0.05219	5.3965	5.5979
350mm	-0.04500	7.3232	7.6431
400mm	-0.03955	9.5365	10.0140
450mm	-0.03528	12.0340	12.7140
500mm	-0.03184	14.8130	15.7450
550mm	-0.02901	17.8700	19.1120
600mm	-0.02665	21.2040	22.8170
650mm	-0.02463	24.8130	26.8640
700mm	-0.0229	28.6930	31.2550
750mm	-0.02141	32.8420	35.9940

Curve Download

25mm 2/3" 2M Fixed Focal Length Lens

35mm 2/3" 2M Fixed Focal Length Lens

50mm 2/3" 2M Fixed Focal Length Lens

75mm 2/3" 2M Fixed Focal Length Lens

2/3" 2M FA lens covers all common focal lengths, suitable for a variety of simple imaging, with good performance and low cost, mainly used for large-scale industrial automation applications.
