75mm 2/3" 2M Fixed Focal Length Lens

Price Option

Product No. 600005

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 75mm

F# 2.8

Max. sensor size 2/3"

Mount C

Resolution 2MP

Working Distance 1.1m～∞

Filter Thread M30.5×0.5mm

FOV 8.4°×6.7°×5.0°

Distrotion 0.36%@y=5.5mm

Weight 140g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		75mm
3	Mount		C-Mount
4	F/#		F2.8-C
5	Working Distance		1.1m～∞
6	FOV(Diagonal x H xV)	2/3"	8.4°×6.7°×5.0°
		1/2"	6.1°×4.9°×3.7°
		1/3"	4.6°×3.7°×2.8°
7	Object Size (at the minimum focus distance)	2/3"	140.7×112.6×84.5mm
		1/2"	102.4×81.9×61.5mm
		1/3"	76.8×61.5×46.1mm
8	BFL（in air）		14.35mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	0.36%@y=5.5mm
		1/2"	0.2%@y=4.0mm
		1/3"	0.11%@y=3.0mm
11	Filter thread		M30.5×0.5mm

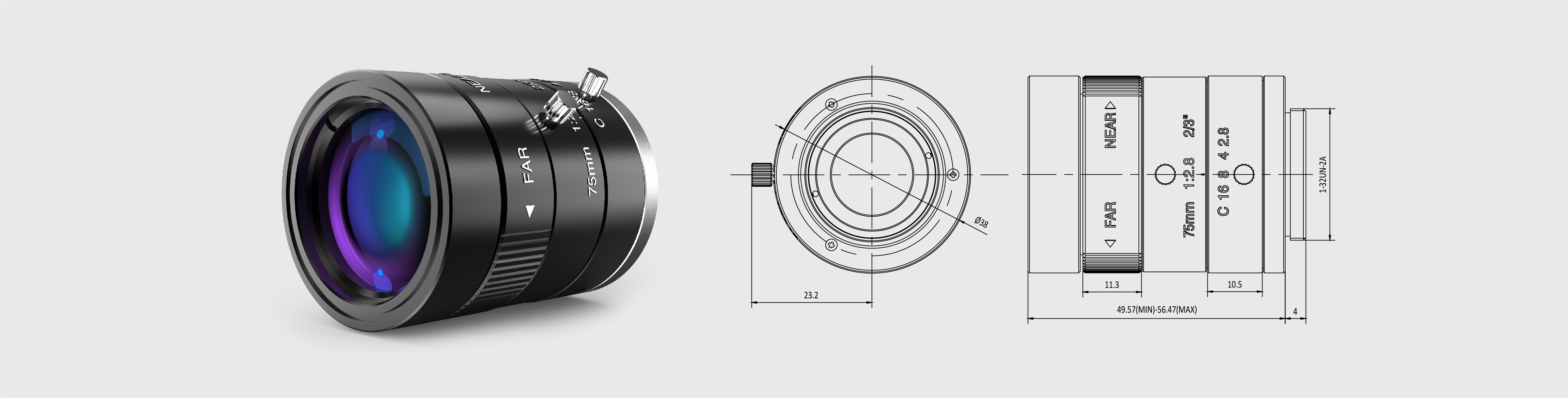

12	Lens Size(W x L)		42.2×60.47mm
13	Weight		140g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		55.28mm
16	Diameter of entrance pupil		26.72mm
17	Distance of exit pupil		-28.30mm
18	Diameter of exit pupil		10.10mm
19	Total optical length		64.43mm
20	Magnification		-0.0781

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
1100mm	-0.07814	6.8583	6.9449
1150mm	-0.07426	7.4938	7.5927
1200mm	-0.07075	8.1573	8.2697
1250mm	-0.06756	8.8487	8.9758
1300mm	-0.06464	9.5680	9.7110
1350mm	-0.06196	10.3150	10.4750
1400mm	-0.05950	11.0900	11.2690
1450mm	-0.05722	11.8930	12.0920
1500mm	-0.05511	12.7240	12.9440
1550mm	-0.05316	13.5830	13.8250

Curve Download

35mm 2/3" 2M Fixed Focal Length Lens

50mm 2/3" 2M Fixed Focal Length Lens

75mm 2/3" 2M Fixed Focal Length Lens

8mm 2/3" 2M Fixed Focal Length Lens

2/3" 2M FA lens covers all common focal lengths, suitable for a variety of simple imaging, with good performance and low cost, mainly used for large-scale industrial automation applications.
