25mm 2/3" 2M Fixed Focal Length Lens

Price Option

Product No. 600002

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 25mm

F# 1.4

Max. sensor size 2/3"

Mount C

Resolution 2MP

Working Distance 0.25m～∞

Filter Thread M30.5×0.5mm

FOV 24.7°×19.9°×15.0°

Distrotion 0.27%@y=5.5mm

Weight 83g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		25mm
3	Mount		C-Mount
4	F/#		F1.4-C
5	Working Distance		0.25m～∞
6	FOV(Diagonal x H xV)	2/3"	24.7°×19.9°×15.0°
		1/2"	18.1°×14.6°×11.0°
		1/3"	13.7°×11.0°×8.2°
7	Object Size (at the minimum focus distance)	2/3"	117.9×94.1×70.4mm
		1/2"	85.5×68.3×51.1mm
		1/3"	64.0×51.1×38.3mm
8	BFL（in air）		13.60mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	0.27%@y=5.5mm
		1/2"	0.1%@y=4.0mm
		1/3"	0.04%@y=3.0mm
11	Filter thread		M30.5×0.5mm

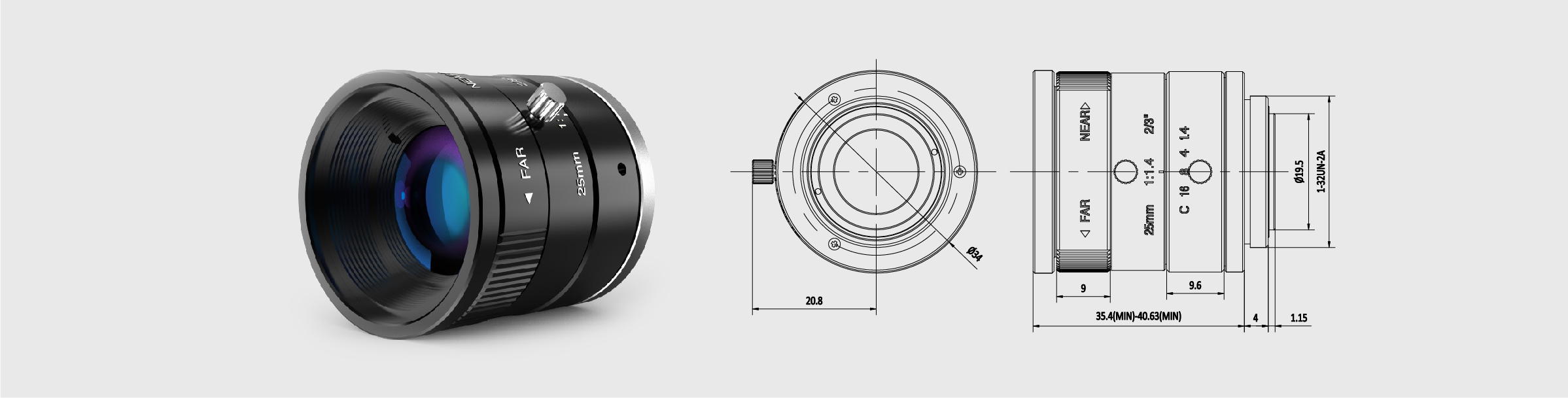

12	Lens Size(W x L)		37.8×45.78mm
13	Weight		83g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		22.27mm
16	Diameter of entrance pupil		17.88mm
17	Distance of exit pupil		-40.30mm
18	Diameter of exit pupil		28.79mm
19	Total optical length		53.76mm
20	Magnification		-0.0939

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
250mm	-0.09387	1.5813	1.6015
300mm	-0.07905	2.2742	2.0392
350mm	-0.06827	3.0915	3.1471
400mm	-0.06008	4.0328	4.1157
450mm	-0.05364	5.0975	5.2157
500mm	-0.04845	6.2853	6.4474
550mm	-0.04418	7.5957	7.8115
600mm	-0.04060	9.0282	9.3083
650mm	-0.03755	10.5820	10.9380
700mm	-0.03493	12.2580	12.7020

Curve Download

35mm 2/3" 2M Fixed Focal Length Lens

50mm 2/3" 2M Fixed Focal Length Lens

75mm 2/3" 2M Fixed Focal Length Lens

8mm 2/3" 2M Fixed Focal Length Lens

2/3" 2M FA lens covers all common focal lengths, suitable for a variety of simple imaging, with good performance and low cost, mainly used for large-scale industrial automation applications.
