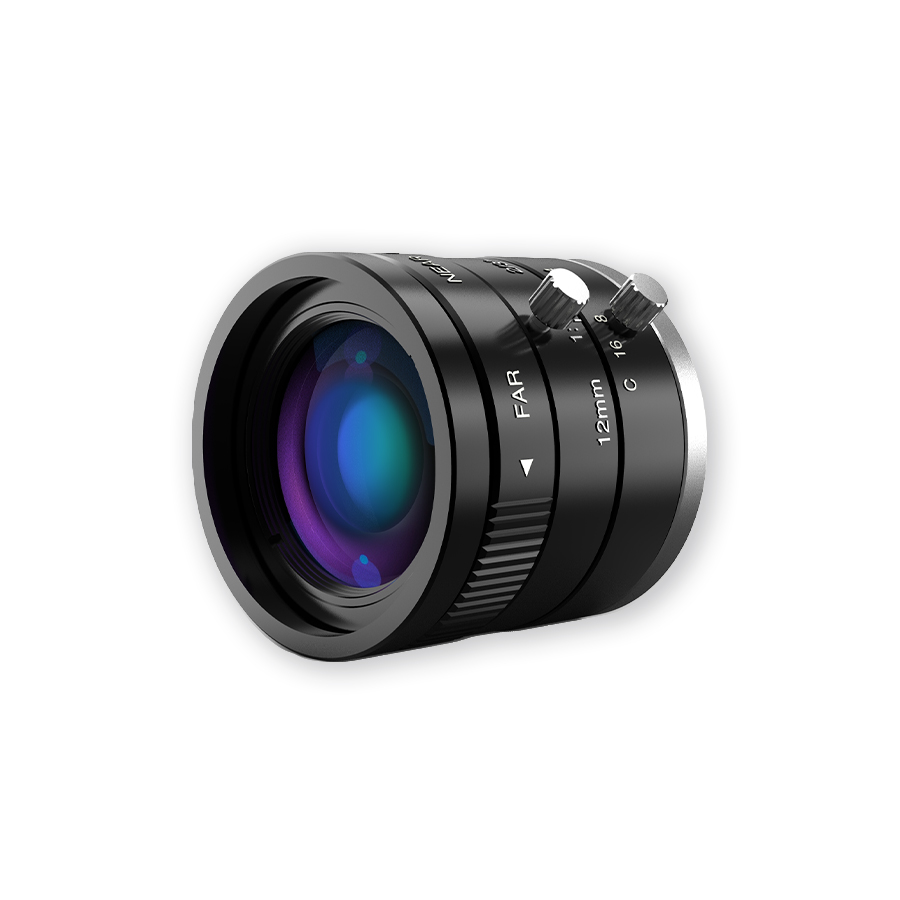

12mm 2/3" 2M Fixed Focal Length Lens

Price Option

Product No. 600000

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

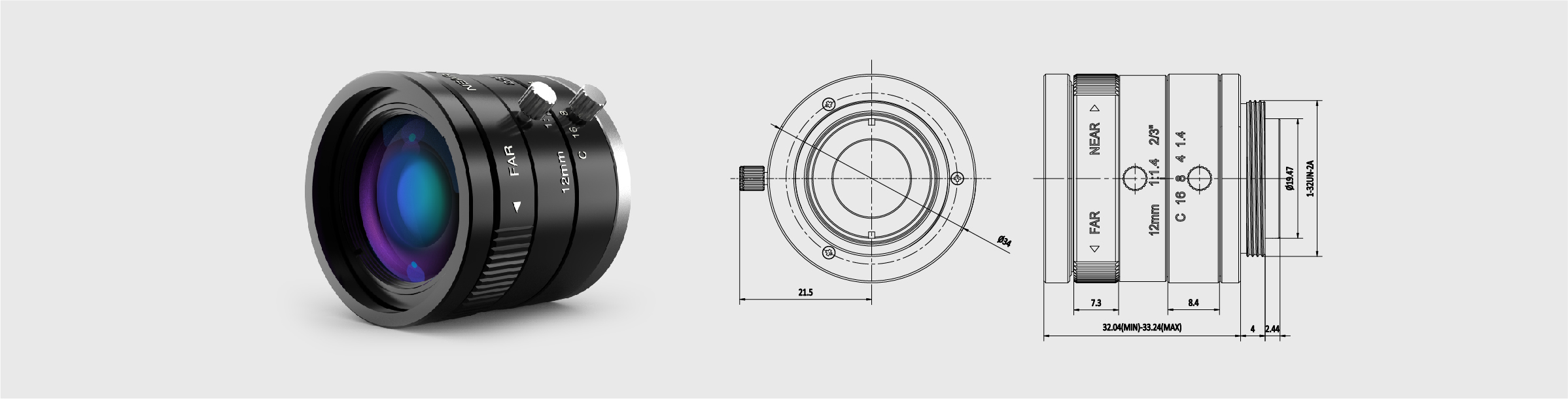

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 12mm

F# 1.4

Max. sensor size 2/3"

Mount C

Resolution 2MP

Working Distance 0.15m～∞

Filter Thread M30.5×0.5mm

FOV 49.0°×40.0°× 30.3°

Distrotion -1.8%@y=5.5mm

Weight 71g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm）
2	Focal Length		12mm
3	Mount		C-Mount
4	F/#		F1.4-C
5	Working Distance		0.15m～∞
6	FOV(Diagonal x H xV)	2/3"	49.0°×40.0°×30.3°
		1/2"	36.5°×29.4°×22.2°
		1/3"	27.6°×22.2°×16.7°
7	Object Size (at the minimum focus distance)	2/3"	152.1×120.3×89.3mm
		1/2"	108.9×86.6×64.6mm
		1/3"	81.0×64.6×48.3mm
8	BFL（in air）		12.70mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	2/3"	-1.8%@y=5.5mm
		1/2"	-1.25%@y=4.0mm
		1/3"	-0.78%@y=3.0mm
11	Filter thread		M30.5×0.5mm
12	Lens Size(W x L)		38.5×39.68mm
13	Weight		71g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		17.87mm
16	Diameter of entrance pupil		8.60mm
17	Distance of exit pupil		-40.98mm
18	Diameter of exit pupil		28.39mm
19	Total optical length		46.20mm
20	Magnification		-0.075

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
150mm	-0.07489	1.3850	1.4634
200mm	-0.05747	4.2177	4.4034
250mm	-0.04659	6.5556	6.9184
300mm	-0.03918	9.3908	10.0180
350mm	-0.03380	12.7160	13.7120
400mm	-0.02972	16.5220	18.0100
450mm	-0.02651	20.8040	22.9230
500mm	-0.02394	25.5520	28.6410
550mm	-0.02181	30.7610	34.6350
600mm	-0.02004	36.4230	41.4560

Curve Download

16mm 2/3" 2M Fixed Focal Length Lens

25mm 2/3" 2M Fixed Focal Length Lens

35mm 2/3" 2M Fixed Focal Length Lens

50mm 2/3" 2M Fixed Focal Length Lens

2/3" 2M FA lens covers all common focal lengths, suitable for a variety of simple imaging, with good performance and low cost, mainly used for large-scale industrial automation applications.
