Multiple Order Waveplate(Retarders)

 Multiple Order λ/4 Waveplates(Retarders)

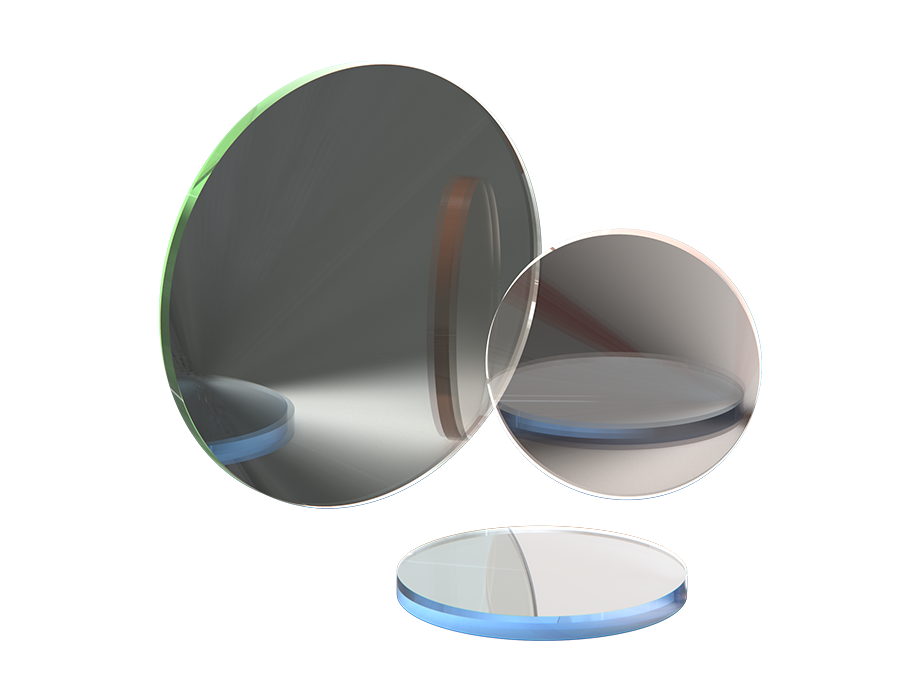

Multiple Order λ/4 Waveplates(Retarders)

The thickness of multiple order waveplates is equal to multiple full wave thickness plus one required retardance thickness. Multiple order waveplate is easy to produce, but they are sensitive to temperature, wavelength and incident angle. Image Optics provides multiple order waveplates are made of quartz crystals. Retardance includes λ/2 and λ/4.

Material Quartz Crystal

Parallelism ＜1 arcsec

Diameter Tolerance +0/-0.1mm

Surface Quality 20/10

Retardance Tolerance λ/300

Wavefront Aberration λ/8@633nm

Clear Aperture CA (mm) Center90%

AR Coating R＜0.2%@Designed Wavelength

Products Related Download

Dia

Select..  

CWL

Select..  

Retardance

Select..  

 λ/4

Material

Select..  

 Quartz-Crystal

Clear

Pro No.

Parameter

Dia

CWL

Retardance

Material

Delivery time

Compare

Price

Purchase

337000

Parameter list

Φ12.7mm

355.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337001

Parameter list

Φ25.4mm

355.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337002

Parameter list

Φ12.7mm

400.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337003

Parameter list

Φ25.4mm

400.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337004

Parameter list

Φ12.7mm

488.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337005

Parameter list

Φ25.4mm

488.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337006

Parameter list

Φ12.7mm

532.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337007

Parameter list

Φ25.4mm

532.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337008

Parameter list

Φ12.7mm

632.8nm

λ/4

Quartz-Crystal

In stock



$80.00



337009

Parameter list

Φ25.4mm

632.8nm

λ/4

Quartz-Crystal

In stock



$108.33



337010

Parameter list

Φ12.7mm

670.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337011

Parameter list

Φ25.4mm

670.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337012

Parameter list

Φ12.7mm

780.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337013

Parameter list

Φ25.4mm

780.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337014

Parameter list

Φ12.7mm

808.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337015

Parameter list

Φ25.4mm

808.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337016

Parameter list

Φ12.7mm

850.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337017

Parameter list

Φ25.4mm

850.0nm

λ/4

Quartz-Crystal

In stock



$108.33



337018

Parameter list

Φ12.7mm

980.0nm

λ/4

Quartz-Crystal

In stock



$80.00



337019

Parameter list

Φ25.4mm

980.0nm

λ/4

Quartz-Crystal

In stock



$108.33


