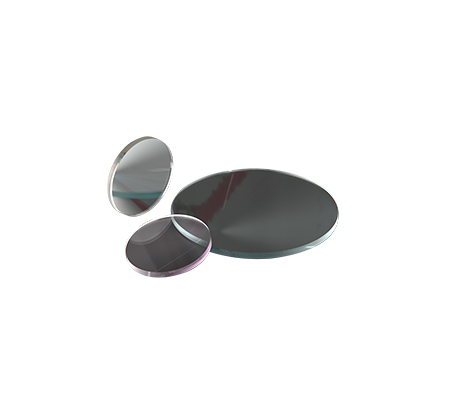

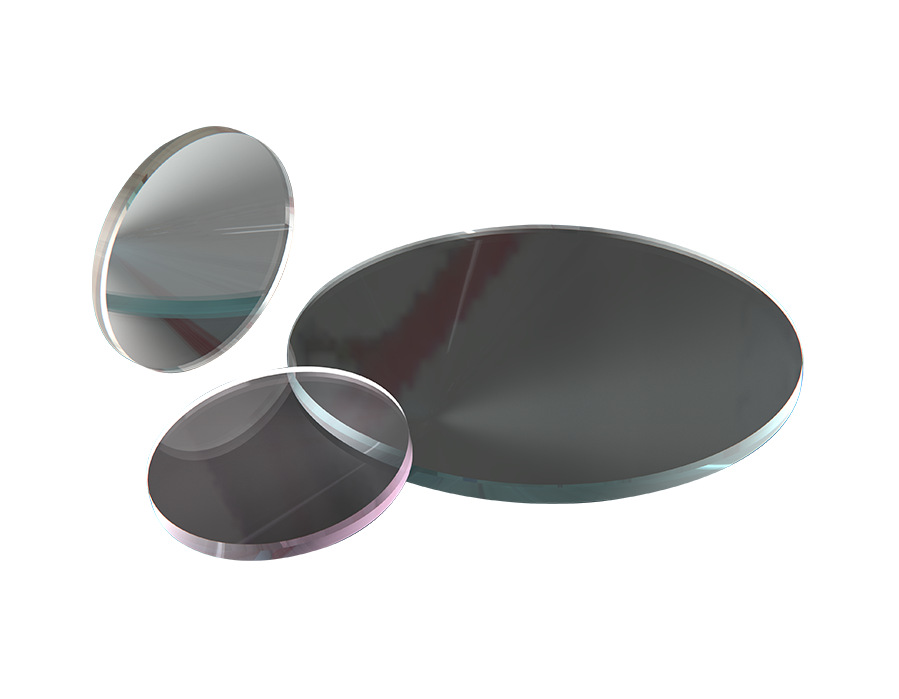

Glued Zero Order λ/2 Waveplate (Retarders)

Glued Zero Order Waveplate is made of two mutiple order waveplates . The glued waveplate can improve the effect of temperature on te waveplate to some extent, but it increases the sensitivity of waveplate retardance to wavelength and incident angle. Image Optics provides glued zero order waveplates which are made of quartz crystals. Retardance includes λ/2 and λ/4.

Material Quartz Crystal

Parallelism ＜1 arcsec

Diameter Tolerance +0/-0.1mm

Surface Quality 20/10

Retardance Tolerance λ/500

Wavefront Aberration λ/8@633nm

Clear Aperture CA (mm) Center90%

AR Coating R＜0.2%@Designed Wavelength

Products Related Download

Dia

Select..  

CWL

Select..  

Retardance

Select..  

 λ/2

Material

Select..  

 Quartz-Crystal

Clear

Pro No.

Parameter

Dia

CWL

Retardance

Material

Delivery time

Compare

Price

Purchase

334000

Parameter list

Φ12.7mm

355.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334001

Parameter list

Φ25.4mm

335.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334002

Parameter list

Φ12.7mm

400.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334003

Parameter list

Φ25.4mm

400.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334004

Parameter list

Φ12.7mm

488.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334005

Parameter list

Φ25.4mm

488.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334006

Parameter list

Φ12.7mm

532.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334007

Parameter list

Φ25.4mm

532.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334008

Parameter list

Φ12.7mm

632.8nm

λ/2

Quartz-Crystal

In stock



$108.33



334009

Parameter list

Φ25.4mm

632.8nm

λ/2

Quartz-Crystal

In stock



$208.33



334010

Parameter list

Φ12.7mm

670.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334011

Parameter list

Φ25.4mm

670.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334012

Parameter list

Φ12.7mm

780.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334013

Parameter list

Φ25.4mm

780.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334014

Parameter list

Φ12.7mm

808.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334015

Parameter list

Φ25.4mm

808.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334016

Parameter list

Φ12.7mm

850.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334017

Parameter list

Φ25.4mm

850.0nm

λ/2

Quartz-Crystal

In stock



$208.33



334018

Parameter list

Φ12.7mm

980.0nm

λ/2

Quartz-Crystal

In stock



$108.33



334019

Parameter list

Φ25.4mm

980.0nm

λ/2

Quartz-Crystal

In stock



$208.33


