 Glued Zero Order λ/4 Waveplate (Retarder)

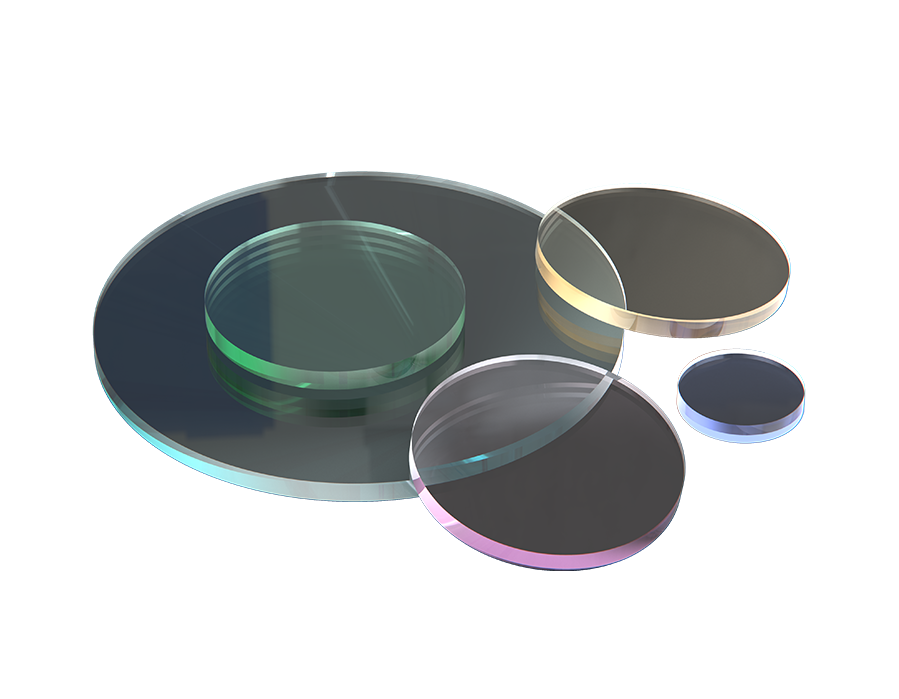

Glued Zero Order λ/4 Waveplate (Retarder)

Glued Zero Order Waveplate is made of two mutiple order waveplates . The glued waveplate can improve the effect of temperature on te waveplate to some extent, but it increases the sensitivity of waveplate retardance to wavelength and incident angle. Image Optics provides glued zero order waveplates which are made of quartz crystals. Retardance includes λ/2 and λ/4.

Material Quartz Crystal

Parallelism ＜1 arcsec

Diameter Tolerance +0/-0.1mm

Surface Quality 20/10

Retardance Tolerance λ/500

Wavefront Aberration λ/8@633nm

Clear Aperture CA (mm Center 90%

AR Coating R＜0.2%@Designed Wavelength

Products Related Download

Dia

Select..  

CWL

Select..  

Retardance

Select..  

 λ/4

Material

Select..  

 Quartz-Crystal

Clear

Pro No.

Parameter

Dia

CWL

Retardance

Material

Delivery time

Compare

Price

Purchase

335000

Parameter list

Φ12.7mm

355.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335001

Parameter list

Φ25.4mm

355.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335002

Parameter list

Φ12.7mm

400.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335003

Parameter list

Φ25.4mm

400.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335004

Parameter list

Φ12.7mm

488.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335005

Parameter list

Φ25.4mm

488.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335006

Parameter list

Φ12.7mm

532.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335007

Parameter list

Φ25.4mm

532.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335008

Parameter list

Φ12.7mm

632.8nm

λ/4

Quartz-Crystal

In stock



$108.33



335009

Parameter list

Φ25.4mm

632.8nm

λ/4

Quartz-Crystal

In stock



$208.33



335010

Parameter list

Φ12.7mm

670.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335011

Parameter list

Φ25.4mm

670.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335012

Parameter list

Φ12.7mm

780.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335013

Parameter list

Φ25.4mm

780.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335014

Parameter list

Φ12.7mm

808.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335015

Parameter list

Φ25.4mm

808.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335016

Parameter list

Φ12.7mm

850.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335017

Parameter list

Φ25.4mm

850.0nm

λ/4

Quartz-Crystal

In stock



$208.33



335018

Parameter list

Φ12.7mm

980.0nm

λ/4

Quartz-Crystal

In stock



$108.33



335019

Parameter list

Φ25.4mm

980.0nm

λ/4

Quartz-Crystal

In stock



$208.33


