Cubic Reference Prism

Cubic Reference Prism

 Cubic Reference Prism

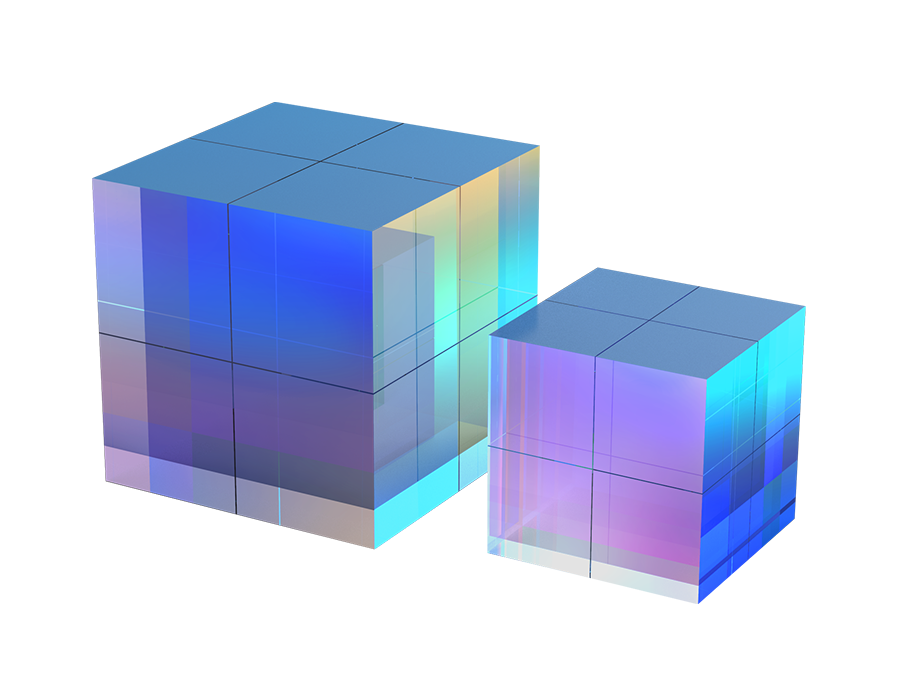

Cubic Reference Prism

The cubic reference prism is a regular hexahedron, and the angle tolerance between its adjacent faces is 2~5 seconds, and there are 3-5 adjacent faces AR coated and cross reticle. In the development process of the spacecraft, the cubic mirror coordinate system can be constructed by directly measuring the normal of the cubic reference prism reflection surface with the electronic theodolite, and it can represent the spatial position of the product.

Material H-K9L Optical Glass

Diameter Tolerance +0.0/-0.2mm

Beam Deviation As product list

Surface Accuracy λ/4 @ 632.8nm

Surface Quality 40-20

Bevel ＜0.25mmX45°

Coating 5 surfaces with AR Al Coating, cross reticle

Products Spectral curve Related Download

Select..  

Angle Precision

Select..  

 ＜5秒

Engraved line width

Select..  

 0.04mm

Deviation of Center scribed line

Select..  

 ＜0.1mm

Clear

Pro No.

Parameter

Angle Precision

Engraved line width

Deviation of Center scribed line

Delivery time

Compare

Price

Purchase

375500

Parameter list

10.00mm

＜5秒

0.04mm

＜0.1mm

Consult



$366.67



375501

Parameter list

15.00mm

＜5秒

0.04mm

＜0.1mm

In stock



$333.33



375502

Parameter list

20.00mm

＜5秒

0.04mm

＜0.1mm

In stock



$300.00


