Positive Meniscus Lenses

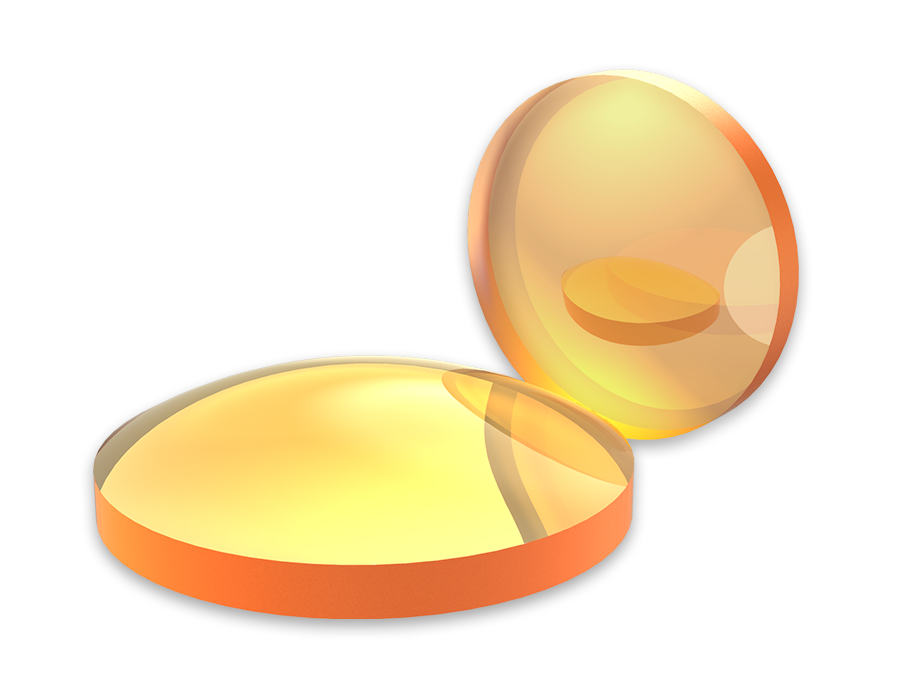

Meniscus lens is a concave-convex lens, which has an outer convex surface and an inner concave surface. If the outward radius is greater than the inward radius, the lens has a positive focal length and can be used as a magnifying lens. Grand Unified Optics offers uncoated or IR2 AR coatings meniscus lenses. Germanium substrates are ideal for IR applications.

Material CVD Laser Grade（ZnSe）

Design Wavelength 10.6μm

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±1%

Centering Tolerance ＜3 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list
