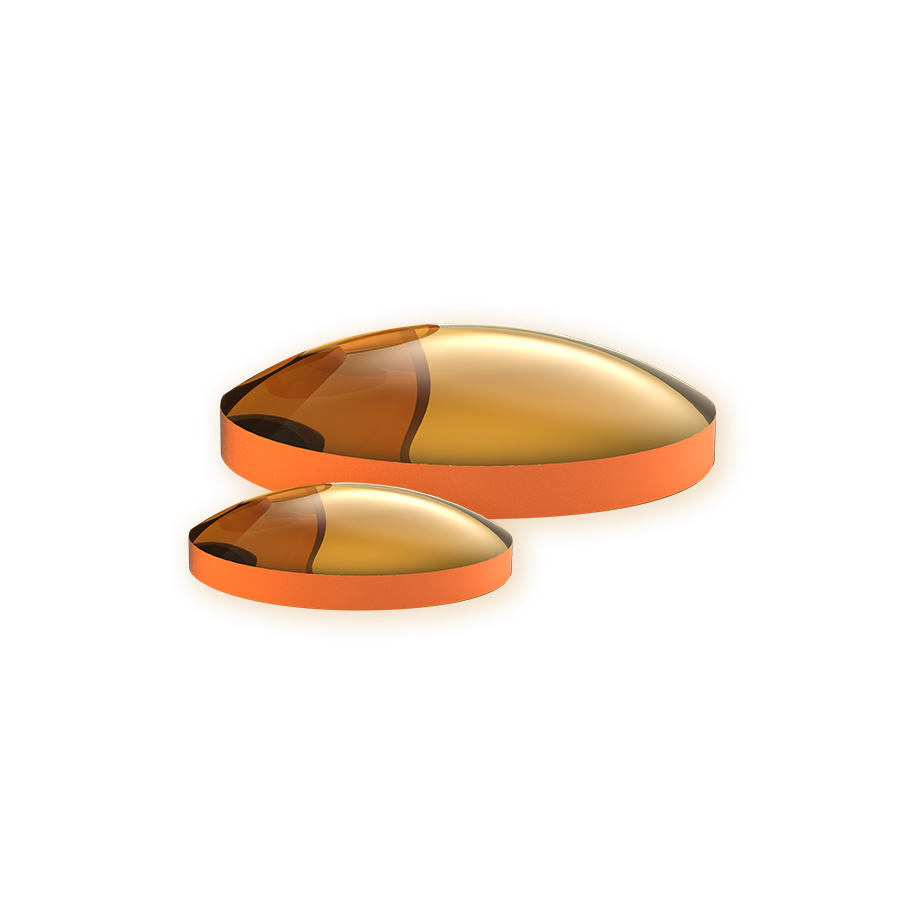

Meniscus Lenses D=25.00mm F=50.00mm Uncoated CVD Laser Grade ZnSe(ZnSe)
Price Option
Product No. 150006
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download

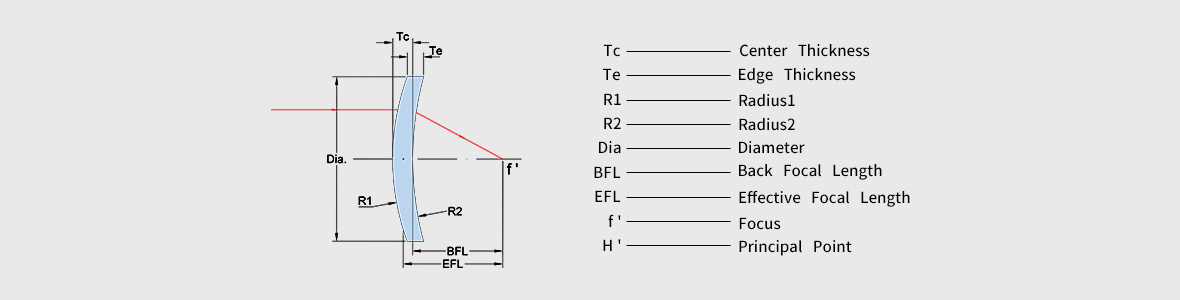

- Dia 25.00mm
- EFL 50.00mm
- Coating Uncoated
- Material CVD Laser Grade ZnSe（ZnSe）
- BFL 47.50mm
- R1 45.00mm
- R2 120.00mm
- CT 3.70mm
- ET 2.50mm
- Available Mount Ring 500021
- Design Wavelength 10.6um
- Diameter Tolerance +0.0/-0.1mm
- Center Thickness Tolerance ±0.2mm
- Focal Length Tolerance ±1%
- Centering Tolerance <3arcmin
- Surface Quality 40/20-60/40
- Bevel 0.2mmX45°
Meniscus lens is a concave-convex lens, which has an outer convex surface and an inner concave surface. If the outward radius is greater than the inward radius, the lens has a positive focal length and can be used as a magnifying lens. Grand Unified Optics offers uncoated or IR2 AR coatings meniscus lenses. Germanium substrates are ideal for IR applications.
