Brewster Windows

UV Fused Silica Brewster Windows

 UV Fused Silica Brewster Windows

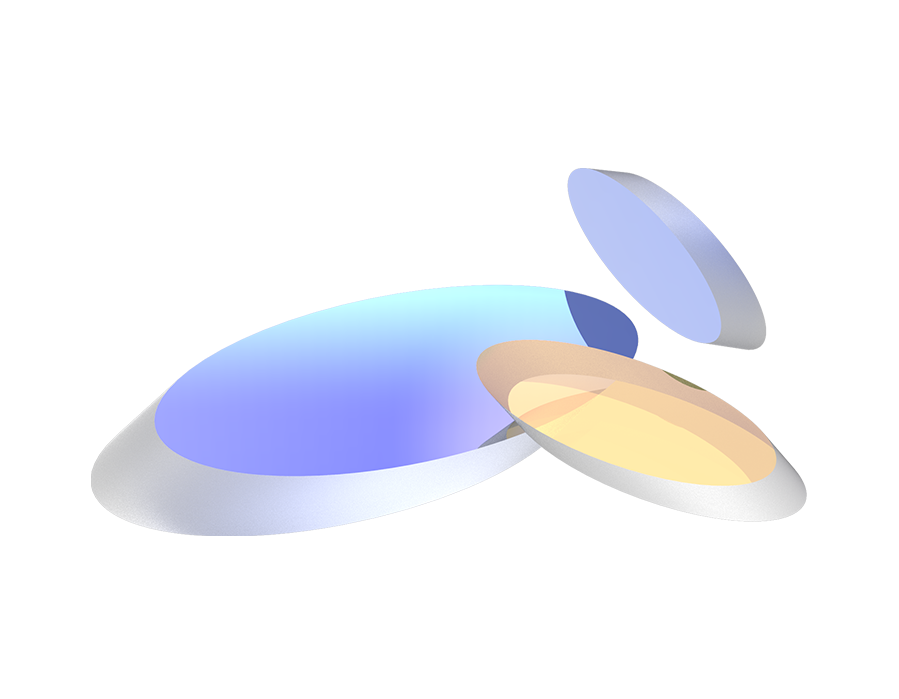

UV Fused Silica Brewster Windows

Brewster window are manufactured based on the total reflection character of the material, the S polarizing light is reflected partially and the P polarizing light almost transmitted fully when the light passes through at the fixed angle of incidence (Brewster Angle of the material)

Material UV Fused Silica

Transmitted Wavefront Error ＜λ/10 @ 633 nm

Parallelism ＜5 arcsec

Surface Quality 10-5

Diameter (Minor Axis) Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Brewster Angle 55°34’ @633nm

Products Spectral curve Related Download

Minor Axis

Select..  

Major Axis

Select..  

Material

Select..  

 UV-Fused-Silica

Thickness

Select..  

 2.0mm

Clear

Pro No.

Parameter

Minor Axis

Major Axis

Material

Thickness

Delivery time

Compare

Price

Purchase

197543

Parameter list

10.0mm

17.69mm

UV-Fused-Silica

2.0mm

In stock



$58.33



197544

Parameter list

12.5mm

22.11mm

UV-Fused-Silica

2.0mm

Consult



$73.15



197545

Parameter list

16.0mm

28.23mm

UV-Fused-Silica

2.0mm

Consult



$78.70



197546

Parameter list

20.0mm

35.37mm

UV-Fused-Silica

2.0mm

In stock



$83.33



197547

Parameter list

25.0mm

44.21mm

UV-Fused-Silica

2.0mm

In stock



$101.85



Curve download
