High-resolution short-wave infrared lens with large target surface
High-resolution short-wave infrared lens with large target surface
High resolution, large aperture design, compact design
 |
|
| No | Project | Specification |
| 1 | Focal length | 50mm |
| 2 | Smaller working distance | 275mm |
| 3 | Focus range | 275mm-∞ |
| 4 | Total lens length | 82.8mm |
| 5 | Large rear protruding interface | 0mm |
| 6 | Filter thread | M43x0.75 |
| 7 | Camera interface | C 接口 |
| 8 | Lens F# | F/2.15-F/16 |
| 9 | Magnification range | 0x -0.185x |
| 10 | Distortion | <1.0% |
| 11 | Image size | 25.6mm |
| 12 | Number of lenses (group) | 9(6) |
| 13 | AR Coating | 0.8-1.8umBBAR |
| 14 | Weight | 250g |

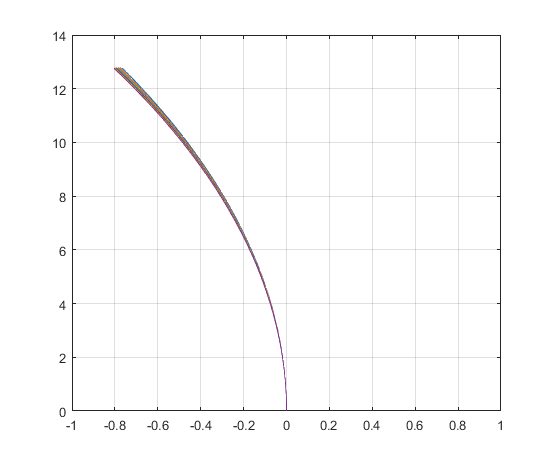

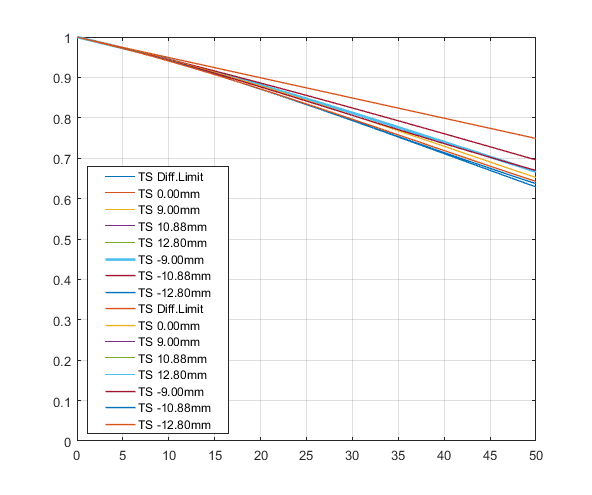

| Distortion 0.8-1.8 | MTFN | |
 |
 |
|

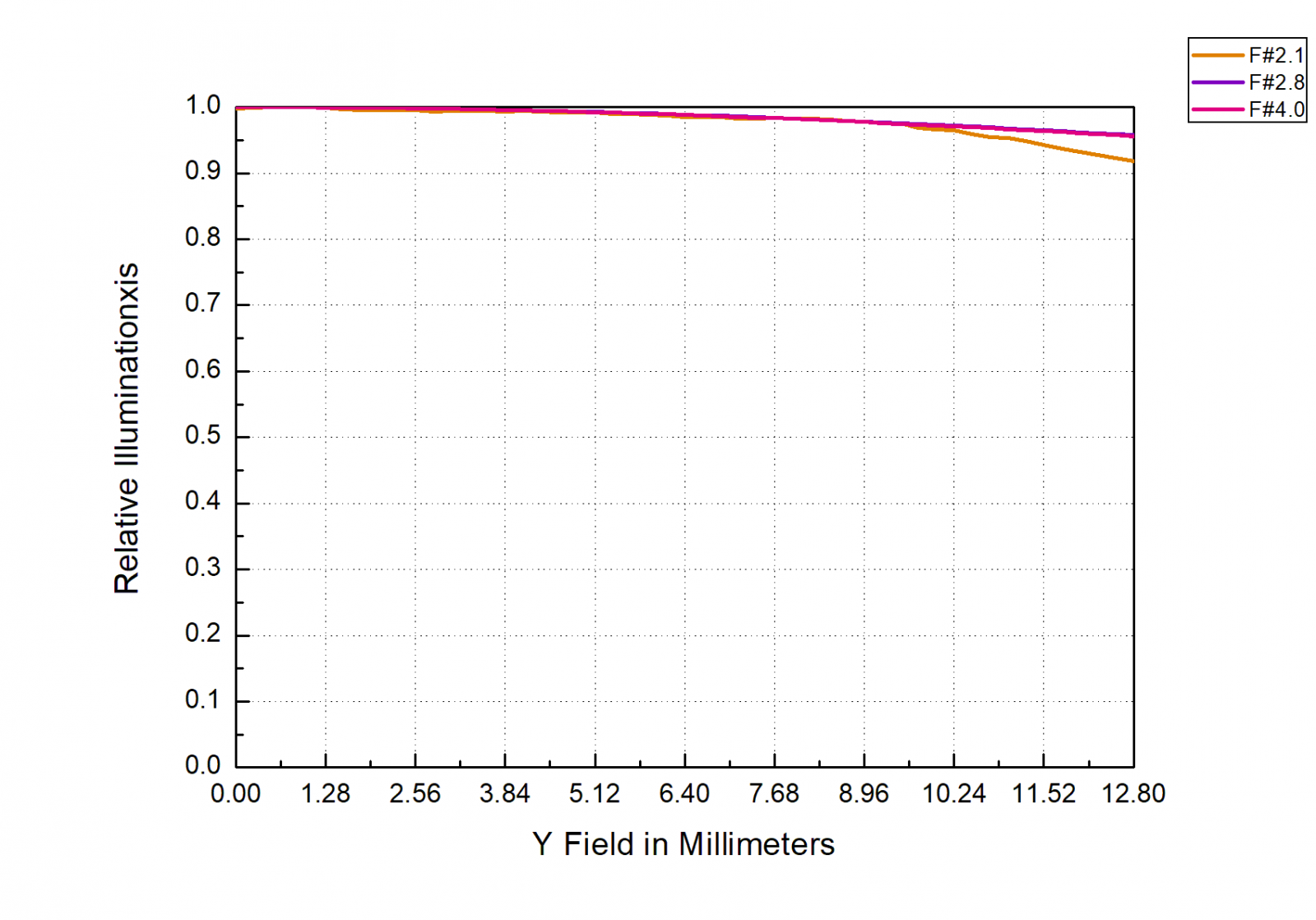

| Relative contrast | ||
 |
||
