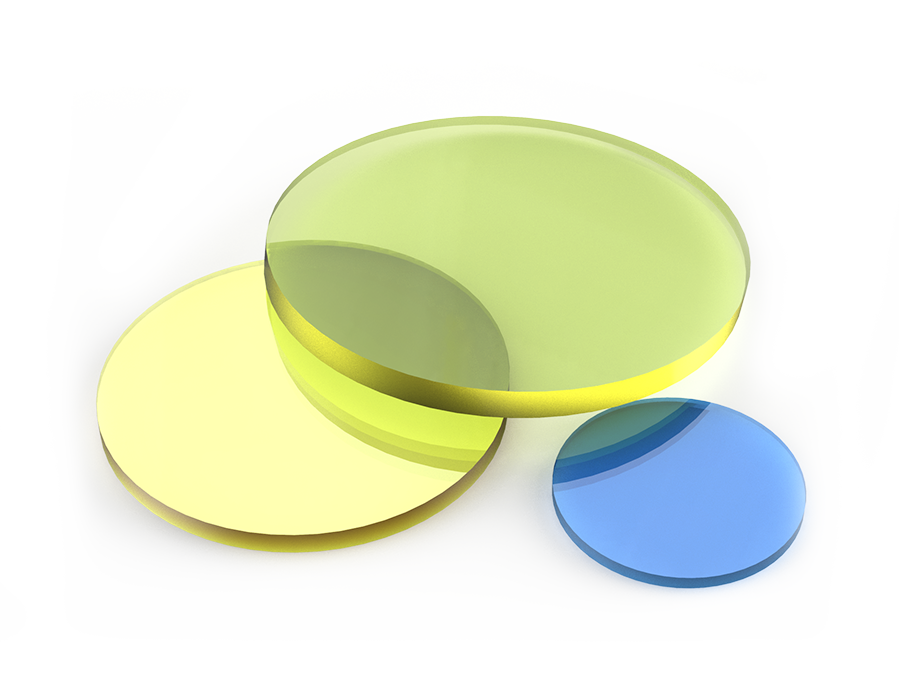

λ/4 Visible Windows

Optical Windows are flat plane-parallel plates, which are often used to protect electronic sensors or detectors without blocking optical transmission. Optical Windows do not change the magnification of a system. Grand Unified Optics offers a variety of optical windows, which cover the wavelength range from ultraviolet (UV) to infrared (IR).

Material H-K9L Optical Glass

Surface Accuracy λ/ 4 @ 633 nm

Parallelism ＜ 30 arcsec

Surface Quality 40-20

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

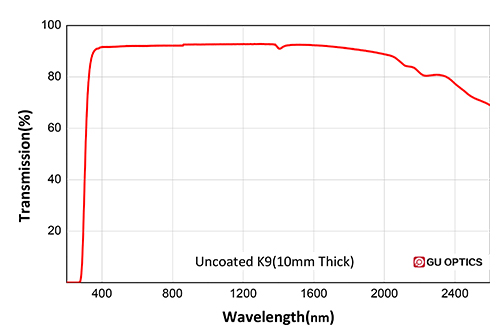

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Material

Select..  

 H-K9L

Surface Accuracy

Select..  

 λ/4@633nm

Clear

Pro No.

Parameter

Dia

Coating

Material

Surface Accuracy

Delivery time

Compare

Price

Purchase

180000

Parameter list

Φ5.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$10.00



180001

Parameter list

Φ10.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$10.00



180002

Parameter list

Φ12.5mm

Uncoated

H-K9L

λ/4@633nm

In stock



$10.00



180003

Parameter list

Φ12.7mm

Uncoated

H-K9L

λ/4@633nm

In stock



$10.00



180004

Parameter list

Φ20.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$10.00



180005

Parameter list

Φ25.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$20.00



180006

Parameter list

Φ25.4mm

Uncoated

H-K9L

λ/4@633nm

In stock



$20.00



180007

Parameter list

Φ30.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$25.00



180008

Parameter list

Φ38.1mm

Uncoated

H-K9L

λ/4@633nm

In stock



$36.67



180009

Parameter list

Φ50.0mm

Uncoated

H-K9L

λ/4@633nm

In stock



$45.00



180010

Parameter list

Φ50.8mm

Uncoated

H-K9L

λ/4@633nm

In stock



$45.00



180011

Parameter list

Φ5.0mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$15.00



180012

Parameter list

Φ10.0mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$15.00



180013

Parameter list

Φ12.5mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$15.00



180014

Parameter list

Φ12.7mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$15.00



180015

Parameter list

Φ20.0mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$15.00



180016

Parameter list

Φ25.0mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$28.33



180017

Parameter list

Φ25.4mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$28.33



180018

Parameter list

Φ30.0mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$33.33



180019

Parameter list

Φ38.1mm

AR@350~700nm

H-K9L

λ/4@633nm

In stock



$46.67



More products >>

Curve download
