3.5mm 1/1.8″ 2MP Wide Angle Lens
Share
WeChat
Scan and add Wechat

3.5mm 1/1.8″ 2MP Wide Angle Lens

Price Option
 € 177.32 (EUR) ￡151.05 (GBP) ￥1040.00 (RMB)

Product No. 600049

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 3.5mm
F/# 2.4
Max. sensor size 1/1.8"
Mount C
Resolution MP
Working Distance 0.15m~∞
Filter Thread M40.5×0.5mm
FOV 104.5°×94.3°×78.0°
Distrotion -1.23%@y=4.5mm
Weight /g
  No. Item Specifications
1 Max. sensor size 1/1.8"(9mm)
2 Focal Length 3.5mm
3 Mount C-Mount
4 F/# F2.4-Close
5 Working Distance 0.15m~∞
6 FOV(Diagonal x H xV) 1/1.8" 104.5°×94.3°×78.0°
1/2" 99.6°×87.9°× 71.1°
1/3" 84.2°×71.1°× 55.6°
7 Object Size
(at the minimum focus distance)		 1/1.8" 425.0×350.5×261.3mm
1/2" 386.0×311.9×230.5mm
1/3" 291.9×230.5×169.7mm
8 BFL（in air） 8.57mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 1/1.8" -1.23%@y=4.5mm
1/2" -4.1%@y=4.0mm
1/3" -5.8%@y=3.0mm
11 Filter thread M40.5×0.5mm

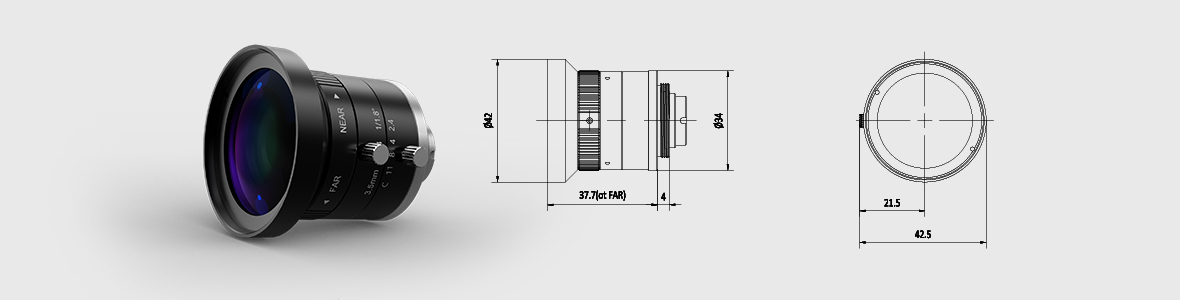

12 Lens Size(W x L) 42.5×47.5mm
13 Weight /g
14 Work Temperature -10℃～+50℃
15 Distance of entrance pupil 10.83mm
16 Diameter of entrance pupil 1.47mm
17 Distance of exit pupil -603.07mm
18 Diameter of exit pupil 250.89mm
19 Total optical length 55.23mm
20 Magnification -0.032

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
100mm -0.03183 11.67988464 15.23988711
150mm -0.02193 24.82970027 37.11812627
200mm -0.01673 41.83344093 71.92008879
250mm -0.01352 62.11656442 123.4756098
300mm -0.01135 85.21332554 197.2936401
350mm -0.00977 110.7421875 301.5957447
400mm -0.00858 138.3876135 449.220104
450mm -0.00765 167.8863869 661.391129
500mm -0.00690 199.017199 975.9036145
550mm -0.00629 231.5926276 1467.215569
Curve Download

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

1.1” 75mm Macro lens
Wide angle lens generally refers to the Fixed Focal Length Lenses with large field of view. In some applications, users need to obtain a larger field of vision, and they often need to use the lens with a large field angle when the working distance cannot be changed. GU's wide-angle lens has a large field of view, which is suitable for large FOV applications
