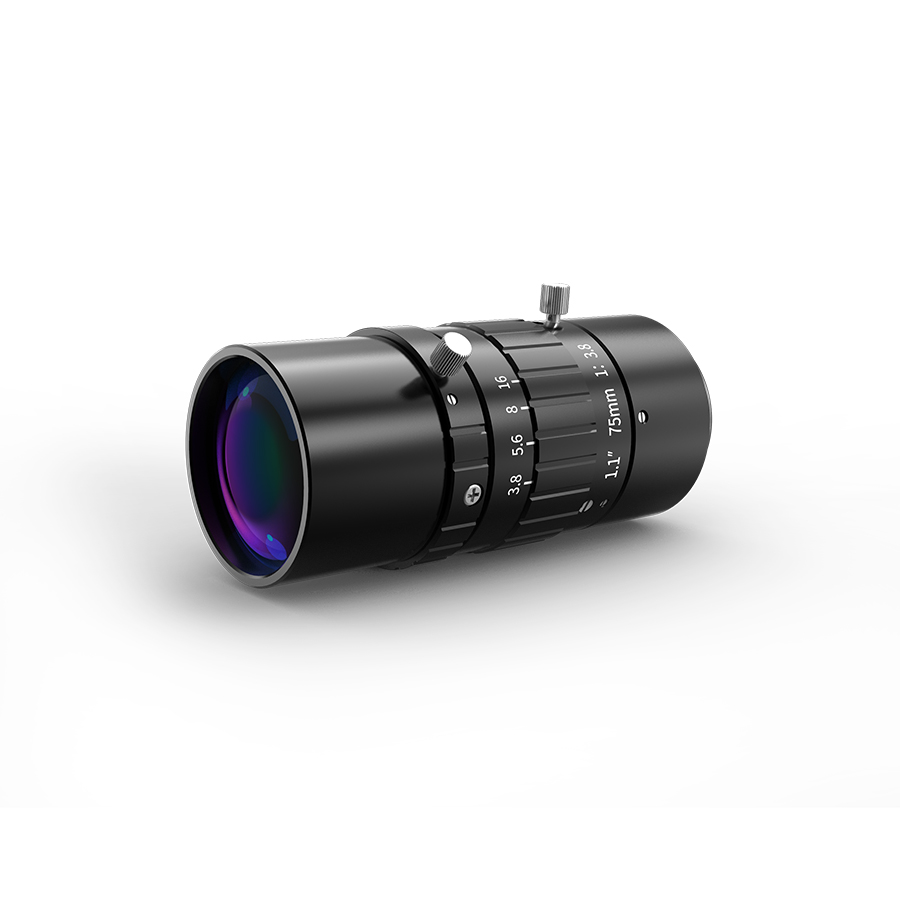

1.1” 75mm Macro lens
Share
WeChat
Scan and add Wechat

1.1” 75mm Macro lens

Price Option
 € 323.96 (EUR) ￡275.96 (GBP) ￥1900.00 (RMB)

Product No. 600048

Stock Please Consult

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 75mm
F/# 3.8
Max. sensor size 1.1"
接 口 C
Resolution 12MP
Working Distance 0.277m~0.493m
Filter Thread M27×0.5mm
FOV /
Distrotion ＜0.1%
Weight
  No. Item Specifications
1 Max. sensor size 1.1"(17.6mm)
2 Focal Length 75mm
3 Mount C-Mount
4 F/# F3.8-F16
5 Working Distance 0.277m～0.493m
6 FOV(Diagonal x H xV) 1.1" 37.11×27.11mm
1" 33.68×25.26mm
2/3" 22.24×18.61mm
7 Operation Focus Manual
Aperture Manual
8 Distortion ＜0.1%
9 Filter thread M27×0.5mm

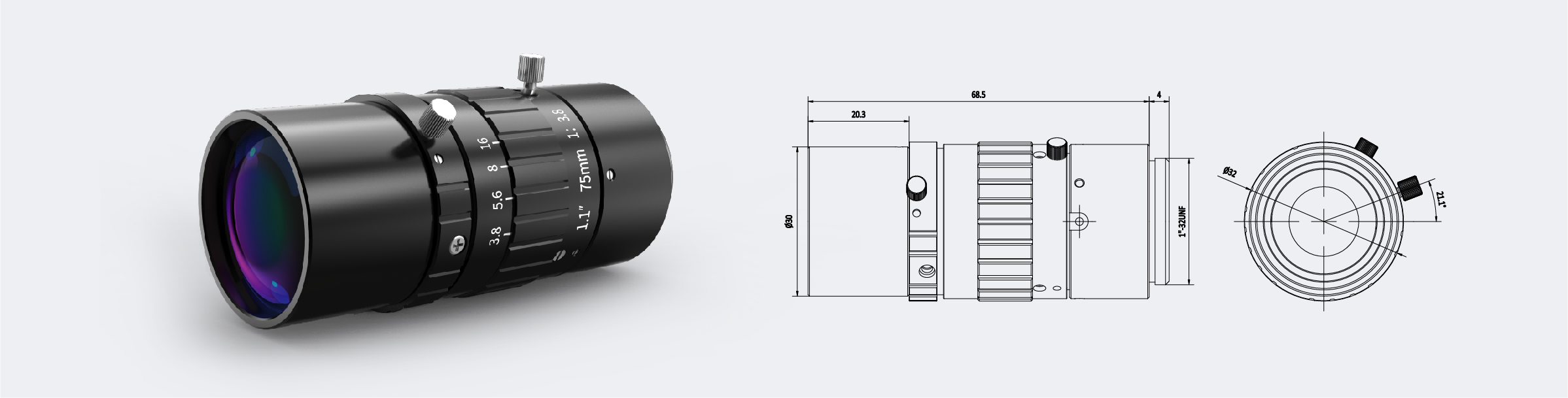

10 Lens Size(W x L) D32×72.5mm
11 Weight /
12 Work Temperature -10℃～+50℃
13 magnification -0.18～-0.38

Focus Distance Magnification FOV
1.1"(14.1×10.3) 1”（12.8×9.6） 2/3"(8.45×7.07)
H V H V H V
277mm -0.38 37.11mm 27.11mm 33.68mm 25.26mm 22.24mm 18.61mm
282mm -0.37 38.11mm 27.84mm 34.59mm 25.95mm 22.84mm 19.11mm
288mm -0.36 39.17mm 28.61mm 35.56mm 26.67mm 23.47mm 19.64mm
293mm -0.35 40.29mm 29.43mm 36.57mm 27.43mm 24.14mm 20.2mm
300mm -0.34 41.47mm 30.29mm 37.65mm 28.24mm 24.85mm 20.79mm
306mm -0.33 42.73mm 31.21mm 38.79mm 29.09mm 25.61mm 21.42mm
314mm -0.32 44.06mm 32.19mm 40mm 30mm 26.41mm 22.09mm
321mm -0.31 45.48mm 33.23mm 41.29mm 30.97mm 27.26mm 22.81mm
329mm -0.3 47mm 34.33mm 42.67mm 32mm 28.17mm 23.57mm
338mm -0.29 48.62mm 35.52mm 44.14mm 33.1mm 29.14mm 24.38mm
348mm -0.28 50.36mm 36.79mm 45.71mm 34.29mm 30.18mm 25.25mm
358mm -0.27 52.22mm 38.15mm 47.41mm 35.56mm 31.3mm 26.19mm
368mm -0.26 54.23mm 39.62mm 49.23mm 36.92mm 32.5mm 27.19mm
380mm -0.25 56.4mm 41.2mm 51.2mm 38.4mm 33.8mm 28.28mm
392mm -0.24 58.75mm 42.92mm 53.33mm 40mm 35.21mm 29.46mm
406mm -0.23 61.3mm 44.78mm 55.65mm 41.74mm 36.74mm 30.74mm
420mm -0.22 64.09mm 46.82mm 58.18mm 43.64mm 38.41mm 32.14mm
435mm -0.21 67.14mm 49.05mm 60.95mm 45.71mm 40.24mm 33.67mm
454mm -0.2 70.5mm 51.5mm 64mm 48mm 42.25mm 35.35mm
474mm -0.19 74.21mm 54.21mm 67.37mm 50.53mm 44.47mm 37.21mm
496mm -0.18 78.33mm 57.22mm 71.11mm 53.33mm 46.94mm 39.28mm
Curve Download

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

GA 2/3" 25mm Macro lens
Macro lens generally refers to the Fixed Focal Length Lenses with short working distance. In some application scenarios, users need to use close shot, the general Fixed Focal Length Lenses is difficult to meet the needs of close shot, and the macro lens is designed to solve this scene. Gu-Optics’s Macro lens max imaging size up to 17.6mm, with a high resolution of 200lp/mm, covering all different working distances, and provide users with more choices
