16mm 1" 5M Fixed Focal Length Lens

Price Option

Product No. 600028

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

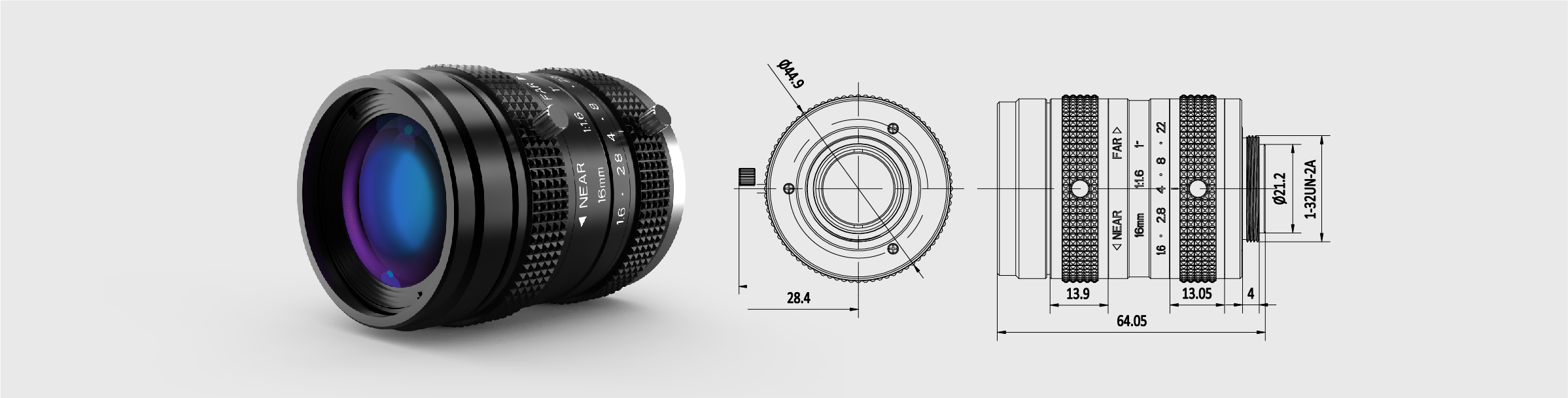

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 16mm

F/# 1.6

Max. sensor size 1"

Mount C

Resolution 5MP

Working Distance 0.4m～∞

Filter Thread M37.5x0.5mm

FOV 54.38°×44.20°×33.54°

Distrotion -3.73%@y=8.0mm

Weight 202g

No.	Item		Specifications
1	Max. sensor size		1"(16mm)
2	Focal Length		16mm
3	Mount		C-Mount
4	F/#		F1.6-F22
5	Working Distance		0.4m～∞
6	FOV(Diagonal x H xV)	1"	54.38°×44.20°×33.54°
		1/2"	28.12°×22.54°×16.91°
		1/3"	21.14°×16.94°×12.72°
7	Object Size (at the minimum focus distance)	1"	419.21×327.188×245.392mm
		1/2"	204.492×163.594×122.696mm
		1/3"	153.37×122.696×92.022mm
8	BFL（in air）		12.17mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1"	-3.73%@y=8.0mm
		1/2"	-1.09%@y=4.0mm
		1/3"	-0.63%@y=3.0mm
11	Filter thread		M37.5×0.5mm
12	Lens Size(W x L)		50.9×64.05mm
13	Weight		202g
14	Work Temperature		-20℃～+60℃
15	Distance of entrance pupil		24.39mm
16	Diameter of entrance pupil		10.11mm
17	Distance of exit pupil		-24.16mm
18	Diameter of exit pupil		15.10mm
19	Total optical length		72.21mm
20	Magnification		-0.039

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
400mm	-0.03912	7.2998	7.5763
450mm	-0.03490	9.2178	9.6116
500mm	-0.03150	11.3541	11.8943
550mm	-0.02871	13.7074	14.4265
600mm	-0.02637	16.2760	17.2097
650mm	-0.02438	19.0587	20.2459
700mm	-0.02267	22.0538	23.5369
750mm	-0.02119	25.2600	27.0844
800mm	-0.01989	28.6759	30.8904
850mm	-0.01874	32.3000	34.9568

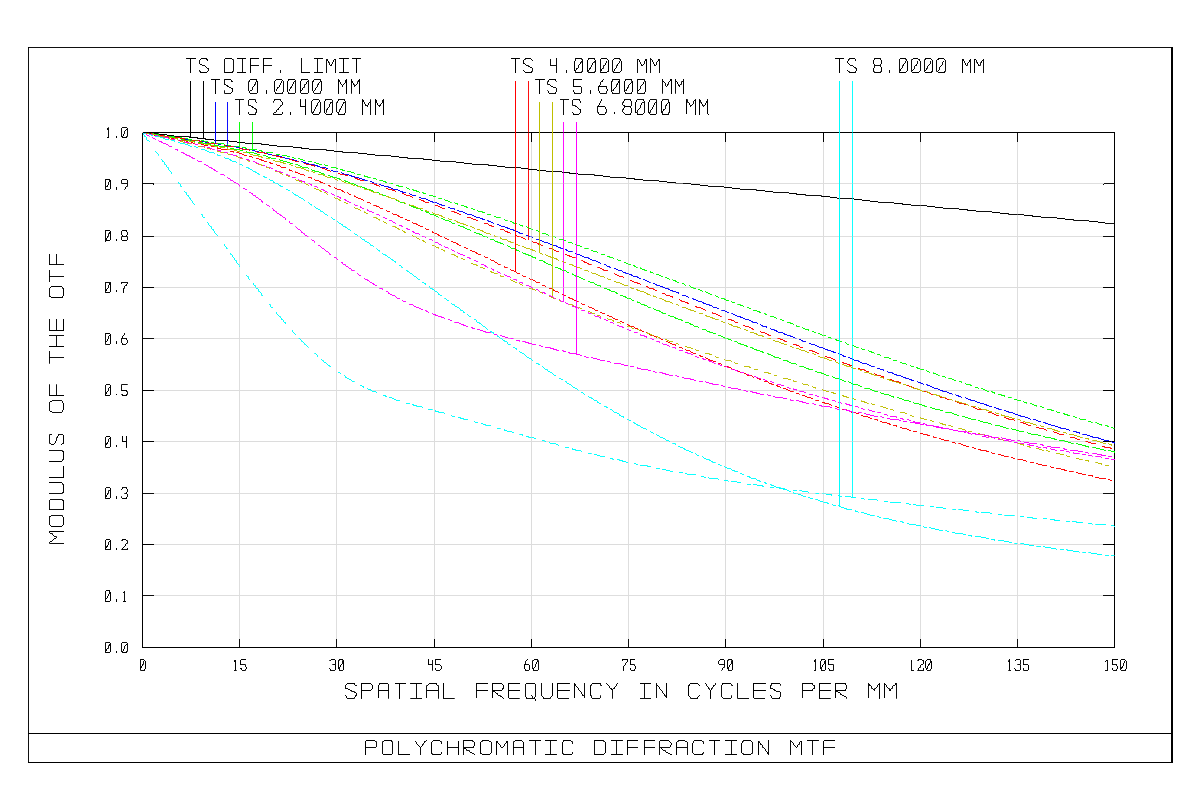

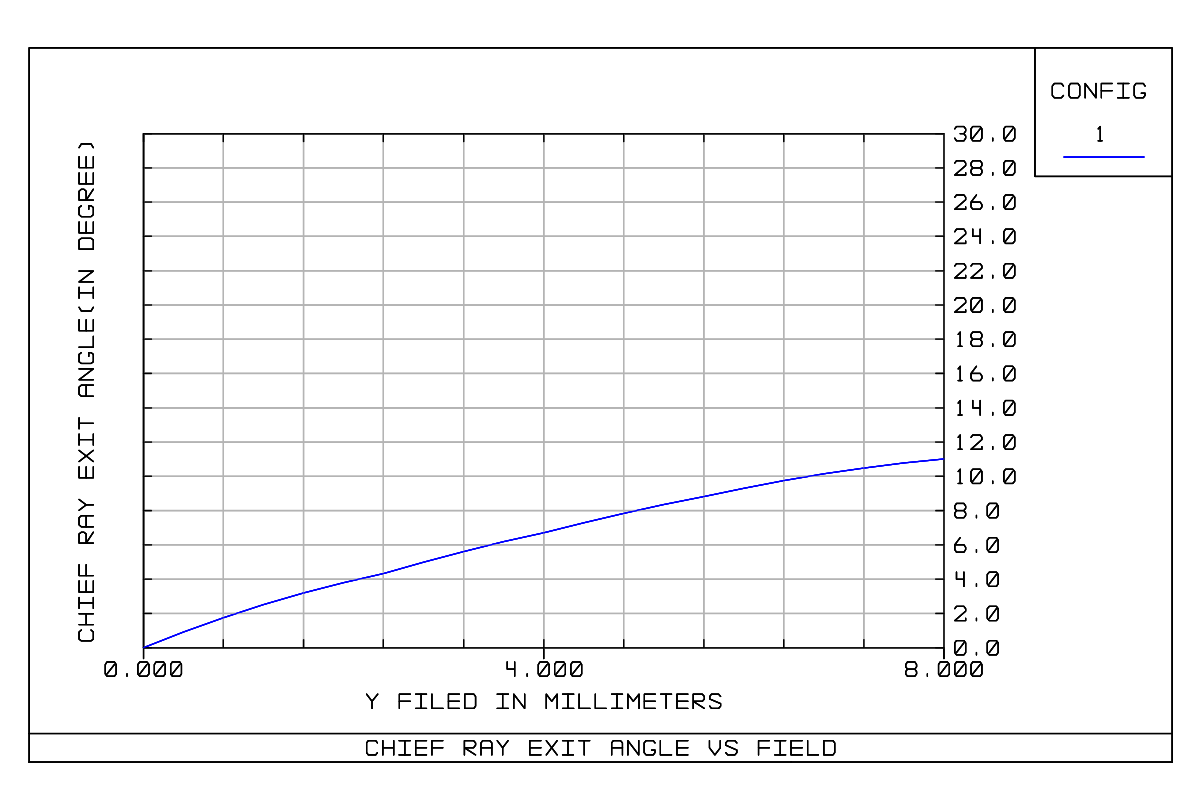

Curve Download

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

25mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

1" 5M FA Lens designed with 1" sensor, maximum imaging size up to 16mm. This series lens have high cost performance, focal length covers 12mm,16mm,20mm,25mm,35mm.
