25mm 1" 5M Fixed Focal Length Lens

Price Option

Product No. 600030

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 25mm

F/# 1.6

Max. sensor size 1"

Mount C

Resolution 5MP

Working Distance 0.4m～∞

Filter Thread M39x0.5mm

FOV 36.12°×29.04°×21.86°

Distrotion -2.06%@y=8.0mm

Weight 157g

No.	Item		Specifications
1	Max. sensor size		1"(16mm)
2	Focal Length		25mm
3	Mount		C-Mount
4	F/#		F1.6-F22
5	Working Distance		0.4m～∞
6	FOV(Diagonal x H xV)	1"	36.12°×29.04°×21.86°
		1/2"	18.20°×14.63°×11.02°
		1/3"	13.70°×10.96°×8.24°
7	Object Size (at the minimum focus distance)	1"	283.652×224.652×167.218mm
		1/2"	138.944×110.896×167.218mm
		1/3"	103.912×83.022×62.204mm
8	BFL（in air）		12.69mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1"	-2.06%@y=8.0mm
		1/2"	-0.52%@y=4.0mm
		1/3"	-0.29%@y=3.0mm
11	Filter thread		M39×0.5mm

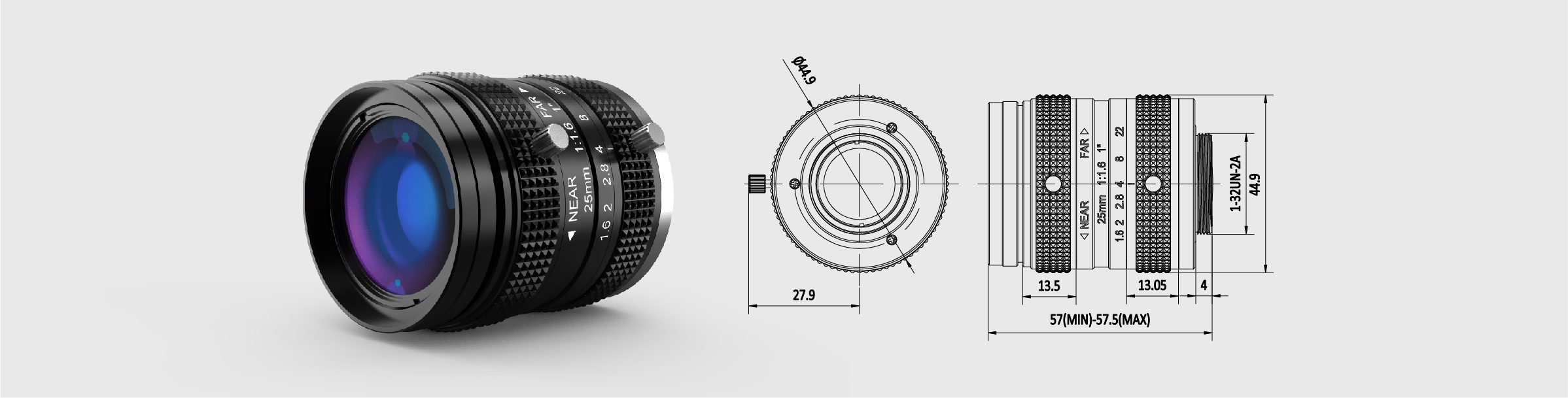

12	Lens Size(W x L)		50.35×57.5mm
13	Weight		157g
14	Work Temperature		-20℃～+60℃
15	Distance of entrance pupil		27.15mm
16	Diameter of entrance pupil		15.65mm
17	Distance of exit pupil		-42.03mm
18	Diameter of exit pupil		26.27mm
19	Total optical length		63.52mm
20	Magnification		-0.058

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
400mm	-0.05794	3.0226	3.0689
450mm	-0.05194	3.8218	3.8879
500mm	-0.04706	4.7139	4.8044
550mm	-0.04302	5.6984	5.8190
600mm	-0.03961	6.7752	6.9317
650mm	-0.03671	7.9439	8.1430
700mm	-0.03420	9.2044	9.4530
750mm	-0.03202	10.5564	10.8622
800mm	-0.03009	11.9996	12.3707
850mm	-0.02839	13.5337	13.9789

Curve Download

16mm 1" 5M Fixed Focal Length Lens

20mm 1" 5M Fixed Focal Length Lens

25mm 1" 5M Fixed Focal Length Lens

12mm 1" 5M Fixed Focal Length Lens No filter thread

1" 5M FA Lens designed with 1" sensor, maximum imaging size up to 16mm. This series lens have high cost performance, focal length covers 12mm,16mm,20mm,25mm,35mm.
