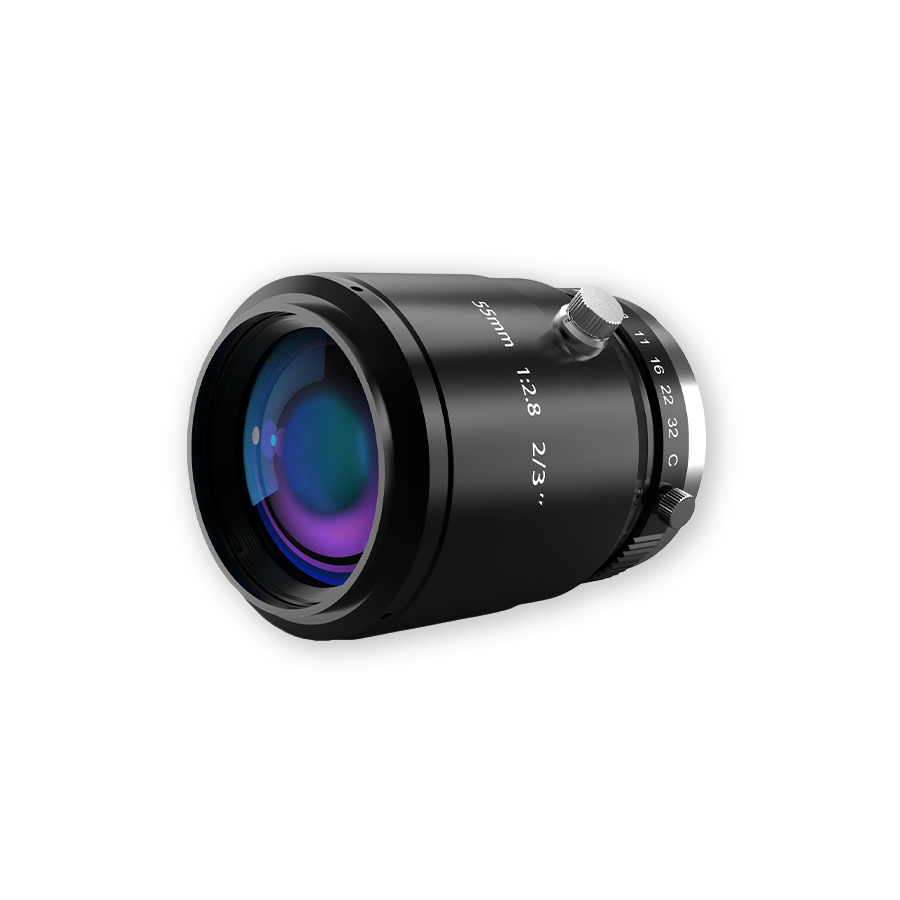

2/3" 5M Partially Telecentric FA Lens

Price Option

Product No. 600034

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 55mm

F/# 2.8

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.13m～∞

Filter Thread M43x0.75mm

FOV 11.5°×9.2°×6.9°

Distrotion 0.43%@y=5.5㎜

Weight 334g

No.	Item		Specifications
1	Max. sensor size		2/3"(11mm)
2	Focal Length		55mm
3	Mount		C
4	F/#		F2.8-F32C
5	Working Distance		0.13m~∞
6	FOV(Diagonal x H xV)	2/3"	11.5°×9.2°×6.9°
		1/2"	8.4°×6.7°×5.0°
		1/3"	6.3°×5.0°×3.8°
7	Object Size (at the minimum focus distance)	2/3"	21.4×17.1×12.8mm
		1/2"	15.6×12.4×9.3mm
		1/3"	11.7×9.3×7.0mm
8	BFL（in air）		13.3mm
9	magnification		0.5×-0×
10	Operation	Focus	Manual
		Aperture	Manual
11	Distortion(at 0.5X)	2/3"	0.43%@y=5.5mm
		1/2"	0.26%@y=4mm
		1/3"	0.16%@y=3mm
12	Filter thread		M43×0.75mm

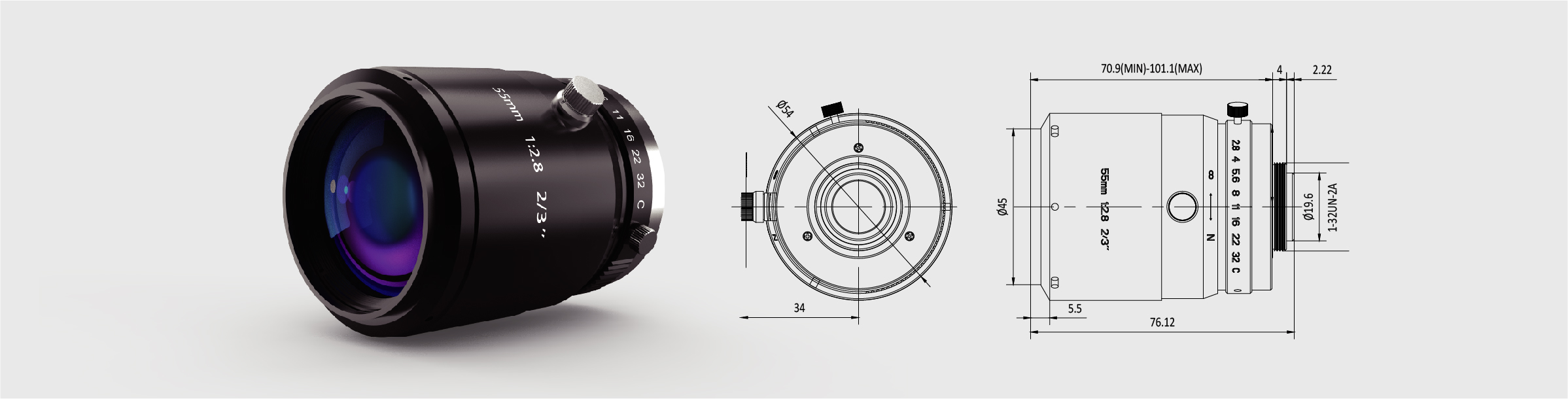

13	Lens Size(W x L)		61×107.32mm
14	Weight		334g
15	Work Temperature		-10℃～+50℃
16	Distance of entrance pupil		∞
17	Diameter of entrance pupil		∞
18	Distance of exit pupil		-28.22mm
19	Diameter of exit pupil		10.09mm
20	Total optical length		115.24mm
21	Magnification		-0.5000

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
130mm	-0.50000	0.08182	0.08193
140mm	-0.46449	0.09489	0.09502
200mm	-0.30717	0.29959	0.30391
300mm	-0.19634	0.53531	0.53665
400mm	-0.14428	1.13365	1.15665
500mm	-0.11404	1.46824	1.47411
600mm	-0.09428	2.63902	2.64916
700mm	-0.08036	3.76586	3.78196
800mm	-0.07002	5.08869	5.11244
900mm	-0.06204	5.90714	5.94136
